IoT Water Quality Monitoring Station

1.Introduction to IoT Water Quality Monitoring Station Functions

IoT Water Quality Monitoring Station is a buoy-type solar-powered monitoring station with IoT for real-time water quality monitoring.

1.IoT Water Quality Monitoring StationSFB adopts an enhanced integrated cone structure, which increases equipment stability and durability and is more in line with floating engineering.

Real-time measurement of hydrological, water quality and meteorological parameters in lakes or basins.The system integrates data acquisition and transmission, and has SMS alarm function and automatic light sensing function beyond the standard.It has the characteristics of many measurement parameters, high measurement accuracy, large storage capacity, convenient network formation, and stable operation.The float adopts an unattended intelligent control system to complete the data collection and transmission of multiple sensors; solar panels and large-capacity batteries form a solar power supply system, which can ensure the power required for the system to work in the field for a long time; the float target is made of ultra-high molecular polyethylene material, and has good anti-corrosion ability, prevent biological adhesion, non-fading, strong collision resistance, lightning resistance, non-magneticity, etc., and is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.

2.The water quality monitoring system consists of six parts: water quality sensor, data collector, communication system, power supply system, overall support, and water quality monitoring platform.It can simultaneously monitor water temperature, pH, dissolved oxygen, conductivity, ammonia nitrogen, turbidity, COD, etc., and a variety of water quality factors.The data collector has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2.IoT Water Quality Monitoring Station product features

1.Easy to deploy: All types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system is quickly launched;

2.Easy maintenance: After the equipment is installed, it can work by itself, without manual duty, and the normal operation of the equipment can be ensured through remote monitoring;

3.Easy to expand: All sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4.Low power consumption: The device can operate for a long time in a low power consumption state, increasing the convenience of the device;

5.Real-time: The data monitored by the device is transmitted to the cloud platform in real time, improving the timeliness of environmental data feedback.

3.IoT Water Quality Monitoring Station Technical Parameters

1.Main parameters

2.The main parameters of optional sensors

Appropriate testing solutions can be customized according to the actual situation of the customer and the technical indicators to be achieved.

Note: The sensor cannot be installed inverted or horizontally when installed, and should be installed at least 15 degrees above the angle of inclination.

The working environment of the above water quality sensor is 0-50℃, <0.3Mpa.

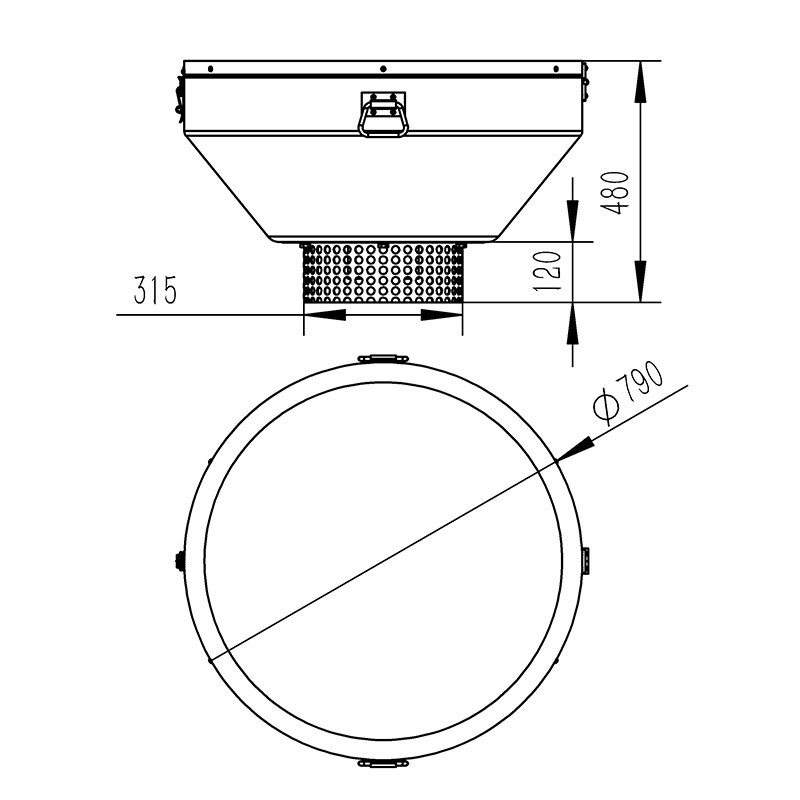

4.IoT Water Quality Monitoring Station product size diagram

5.IoT Water Quality Monitoring Station device installation requirements

1.Stay away from high-power radio transmitters

2.Stay away from high-voltage transmission lines and microwave radio transmission channels

3.Try to be close to the data transmission network

4.Stay away from strong electromagnetic interference
