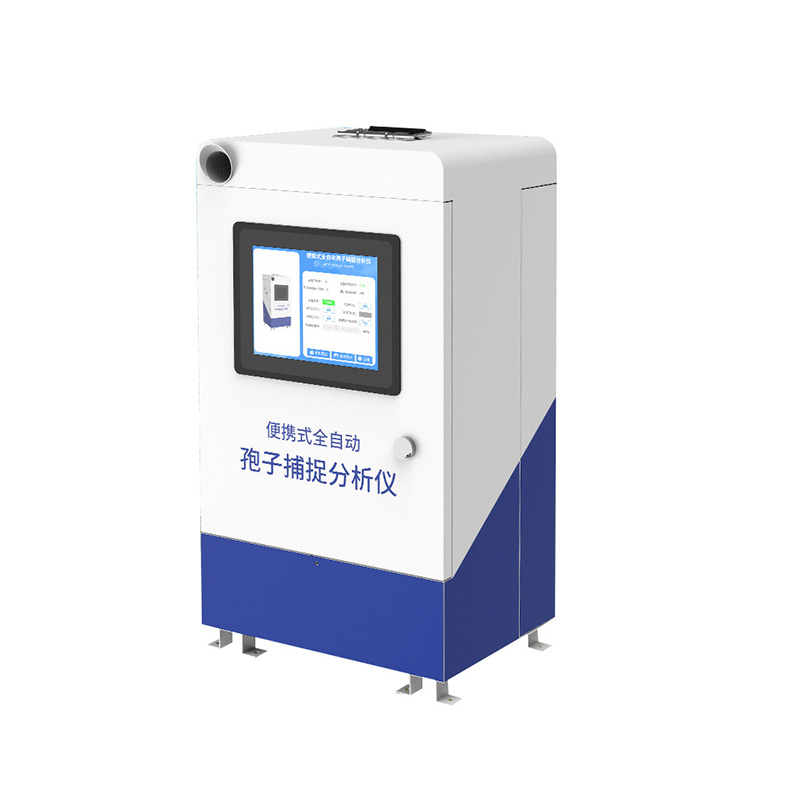

Spore Capture Analyzer

1.Introduction to Spore Capture Analyzer Products

Spore Capture Analyzer is mainly used for disease and spore monitoring, for spore information collection and analysis, and for detecting the spread dynamics of disease spores.The device uses high-power optical microscopy imaging technology, precision limiting technology, automatic and intelligent focus fusion technology, Internet of Things transmission control technology and other technical means to capture tiny spore targets, and upload the pictures to the designated agricultural cloud platform in real time.The platform uses image optimization algorithm to accurately process and analyze uploaded images.

2.Features of Spore Capture Analyzer

1.There are horizontal and longitudinal dual-axis motors inside the spore equipment

2.Built-in slides, the slides can cumulatively display the current usage level.When the slides are about to be used up, the platform can expire and remind the replacement time of the slides.The slides can be manually cleared, and the zeroing is protected by password.The slides can be manually replaced.

3.The interface can display the progress of single sampling of slides in real time;

4.The working mode can be set from the interface: divided into two modes: automatic and manual;

5.There is a high-resolution microscope in the device, which can clearly capture and display 5~100um spores.

6.After special air duct airflow circulation design, air ducts are formed at the inlet and outlet vents to ensure the flowability of the air, effectively reduce the collection repetition rate, shorten the sampling time, and improve the collection efficiency.A single sampling can set the sampling time of the suction port.

7.You can set the working time at will and the sampling frequency at will;

8.The spore capture device has a built-in 10.4-inch high-definition large screen display, Windows operating system, and has a good human-computer interaction interface.Support local viewing and shooting photos, configuring device parameters, controlling devices and other functions

9.Statistical analysis: Using cloud server technology to realize manual statistics and analysis of bacterial spore pictures, real-time remote viewing and confirmation can be viewed and confirmed shortened the prediction and forecasting cycle

10.Support automatic calibration with server

3.Spore Capture Analyzer technical parameters

1.Main structure: plastic spray material

2.Power supply voltage: 220VAC, optional 480w 200ah solar power supply

3.Maximum power start: ≤65W; stable working power: ≤50W; standby power ≤26.4W

3.The whole machine size: 420.0*308.7*787.7mm

4.Communication method: 4G upload, based on cellular network, upload data through TCP/IP, supports dynamic domain name resolution DNS, and only needs to insert a mobile phone card to upload data to the remote monitoring software platform

5.Working environment: -20-70℃, 0-95% (relative humidity), no condensation

6.Built-in glass belt: one replacement can be used for up to 365 consecutive days, 3 shots a day

7.Insulation resistance ≥2.5MΩ (leasing protection)

8.Camera: 800W pixels

9.Operating system: WINDOWS

10.Gas sampling: the collection time is 60~1200 minutes (set range), and the collection area is: length * width (mm) 50*21mm;

11.Working time settings: start at regular intervals, 24-hour system, you can set the 24-hour turn-on time at any time;

4.Spore Capture Analyzer Cloud Platform

1.It has the function of remote real-time viewing and control, and real-time analysis of spores

2.The working mode of the spore automatic capture analyzer can be switched remotely in real time to realize automatic and remote photography, and realize carrier band usage warning function

3.In automatic mode, the starting working time, working time, sampling time, working interval, number of single motion pulses of the spore automatic capture analyzer can be set, and can be sent remotely to the device end.

4.In remote control mode, the inhalation port, exhaust port, sampling port, light source status, carrier motor status of the spore automatic capture analyzer can be remotely controlled.
