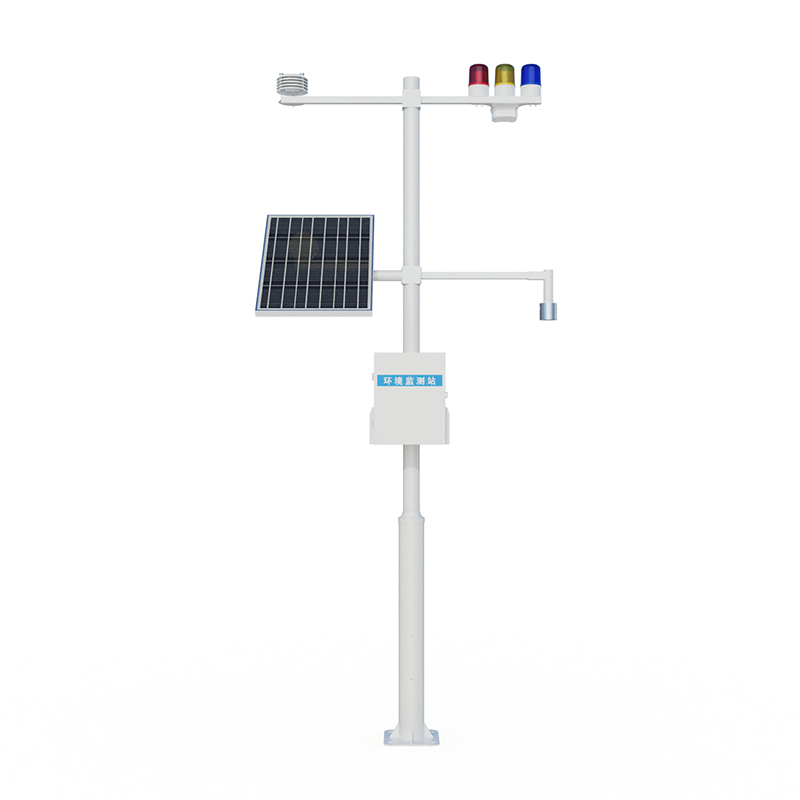

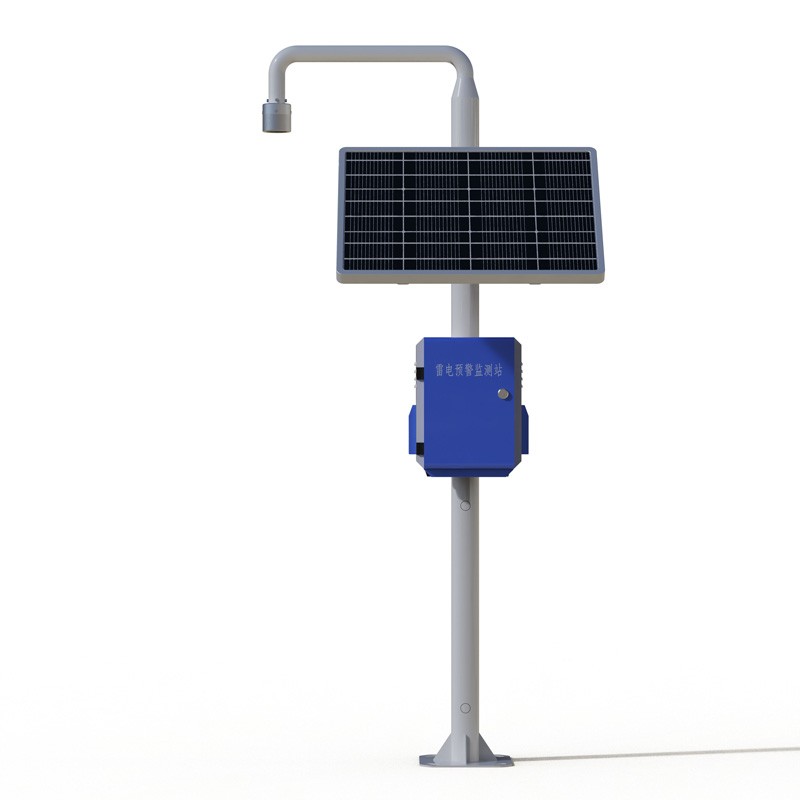

electric field monitor

1.Electric field monitor product introduction

electric field monitor records the electric field within the monitor area and is used to monitor nearby thunderstorms, providing high-precision short-range lightning strike detection.Electric field monitor is a fully digital electric field detection and lightning warning platform.Its core electric field detection structure is based on the principle of charge induction and is developed using MEMS (micro-electromechanical system) technology.It does not wear and tear movable mechanical components such as motors.It has outstanding advantages such as small size, low power consumption, high reliability, and easy integration.The system uses electric field differential combined with threshold threshold optimization lightning warning algorithm.Compared with the conventional threshold threshold method, it is highly likely to avoid false alarm problems caused by human interference (rainy days/strong winds/snow days/dust), further improving the accuracy of early warning.The lightning warning system is accurate, convenient for networking and easy to install, and is mainly aimed at the application needs of atmospheric electric field detection and short-term lightning area early warning in the fields of aerospace defense, meteorology, petroleum and petrochemical, power grid, scenic spots, mines, oil depots, military and other fields.

2.Electric field monitor Product composition

1.Lightning warning detector

2.Data processing host

3.Solar power supply system

4.Anti-direct lightning system

5.Surge system

6.Grounding system

7.Optional functions, temperature, humidity, lifting and lightning arrester

3.Electric field monitor Product features

1.Users can connect the lightning warning system probe to the computer to achieve the purpose of remote monitoring.

2.Through the analysis of data, make more accurate judgments on the intensity and polarity changes of the thunder cloud electrostatic field

3.This system can be connected to the sound and light alarm system

4.The system software has complete network transmission functions; the data transmission completely follows the network protocol

5.Supporting central monitoring software, users can monitor and use it through a PC

4.Electric field monitor Technical parameters

5.Precautions for installing electric field monitor

1.Lightning warning probe should be installed on sunny days

2.The lightning warning probe should be installed outdoors without any obstruction and surrounding unobstructed objects.

3.Do not install it at the generator exhaust outlet, beside the telephone pole or under the high-voltage line.

4.Under abnormal circumstances, when protruding on the ground, close to the antenna pole or other equipment, the field strength and its test data may be disturbed.

5.Under wired mode, the wiring distance between the outdoor electric field meter probe and the indoor main unit should not exceed 100 meters.

6.For more details, please consult our company

7.If there is any parameter update without notice, the right to technical interpretation belongs to our company.

6.Electric field monitor installation steps

1.Remove the complete set of lightning warning systems from the box

2.Fix the bracket to the designated installation position and fix it with bolts

3.Connect the flash point on the top of the lightning rod to the ground wire, and the other end ground wire is introduced from the inside of the bracket and out from the bottom hole of the bracket.After the grounding pole and other grounding devices are installed, connect the lightning rod ground wire.

4.Introduce the wires of the atmospheric electric field instrument probe from the inside of the bracket, lead out from the hole in the middle of the bracket, and connect to the main control box.There are three wires in the main control box, connect according to the color, and be insulated.

5.Fix the solar panel to the bracket and connect the solar energy wire to the lead-out power wire according to the color.

6.Install the control box in the control room in the appropriate position, and generally choose to hang a wall.Connect the alarm cable to the control box and connect it to the control box according to the color.Connect the 220V power supply to the empty switch

7.From the front-end main control box, a network cable and a control cable are drawn from the interface to connect to the control box in the control room, and connect the network cable and control cable according to the interface.

8.Turn on the main control box switch and indoor control box switch

9.Open the computer and enter the main control box IP into the computer
