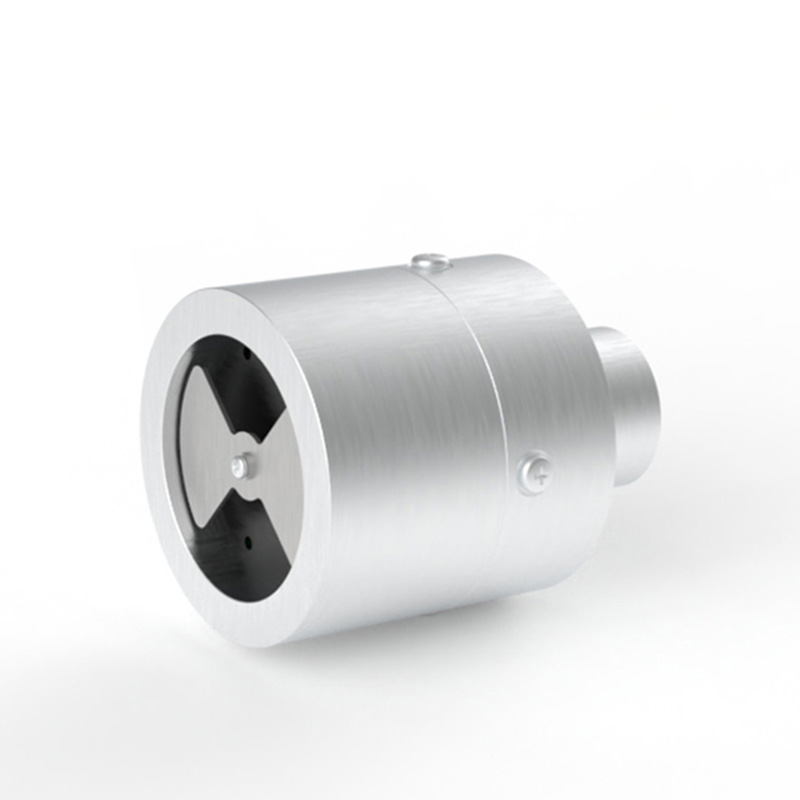

Lightning Warning System

1.Lightning Warning System application environment description

Lightning Warning System provides continuous monitoring of the local electric field, providing reliable lightning detection up to 15KM.Lightning Warning System is a high-precision lightning monitoring and early warning device that can monitor the changes in the electric field in the atmosphere in real time, accurately capture the traces of lightning activities, and provide strong support for the prevention of lightning disasters.

In the field of meteorological monitoring, Lightning Warning Systems can be widely used in meteorological stations to conduct continuous and uninterrupted monitoring of lightning activities in the area, providing key data for weather forecasts and meteorological disaster warnings.Through the analysis of changes in atmospheric electric fields, the meteorological department can predict the probability, intensity and development trend of lightning weather in advance, and timely issue lightning warning signals, providing an important reference for the safe operation of the public, aviation, navigation and other industries.

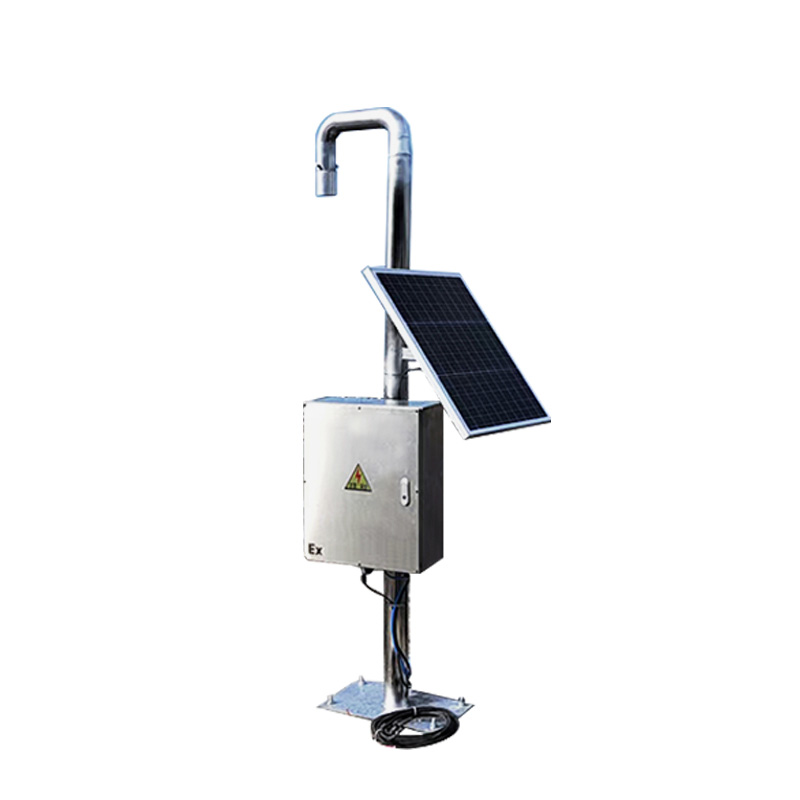

For all kinds of places that are susceptible to lightning strikes, such as petrochemical enterprises, communication base stations, power facilities, high-rise buildings, etc., Lightning Warning Systems can be used as an important monitoring tool for lightning protection.Installing Lightning Warning Systems around these places can grasp the dynamic changes of the surrounding atmospheric electric fields in real time.When the atmospheric electric field intensity exceeds the preset threshold, an alarm will be triggered in a timely manner and remind staff to take corresponding protective measures, such as stopping outdoor operations and closing key equipment, etc., thereby effectively reducing the losses caused by lightning disasters to personnel's life safety and equipment facilities.

In addition, in agriculture, forestry and other industries, Lightning Warning System also has certain application value.In agricultural production, obtaining lightning weather information in advance will help to reasonably arrange agricultural activities, avoid crop losses caused by lightning weather, and also help ensure the safety of agricultural operators.In forestry, Lightning Warning Systems can be used to monitor lightning activities to prevent forest fires caused by lightning strikes and provide guarantees for the protection of forest resources.

2.Lightning Warning System technical performance and specifications

1.Technical parameters

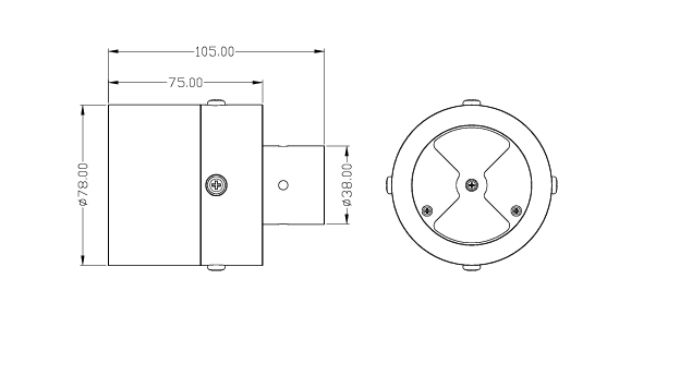

2.Lightning Warning System size diagram

3.Lightning Warning System installation and electrical connection

1.Installation

1.1: This product is a more precise instrument and should avoid falling and impact.

1.2: The equipment should avoid high temperature, pay attention to waterproofing, and prevent icing;

1.3: The instruments after unboxing should be stored in a dry, ventilated and corrosive gas-free place.Be careful and light when transporting, and avoid violent vibrations.Dust, moisture and severe temperature changes can affect the service life of this product, so avoid placing it in these places.

The equipment should have good grounding when in use

2.Electrical installation

The cable is a 4-core shielded wire, and the line sequence is defined:

1-Red-Power cable (12~24VDC)

2-Blue-Ground (GND)

3-Green-485B

4-Yellow-485A
