3D Ultrasonic Anemometer

1.3D Ultrasonic Anemometer Product Overview

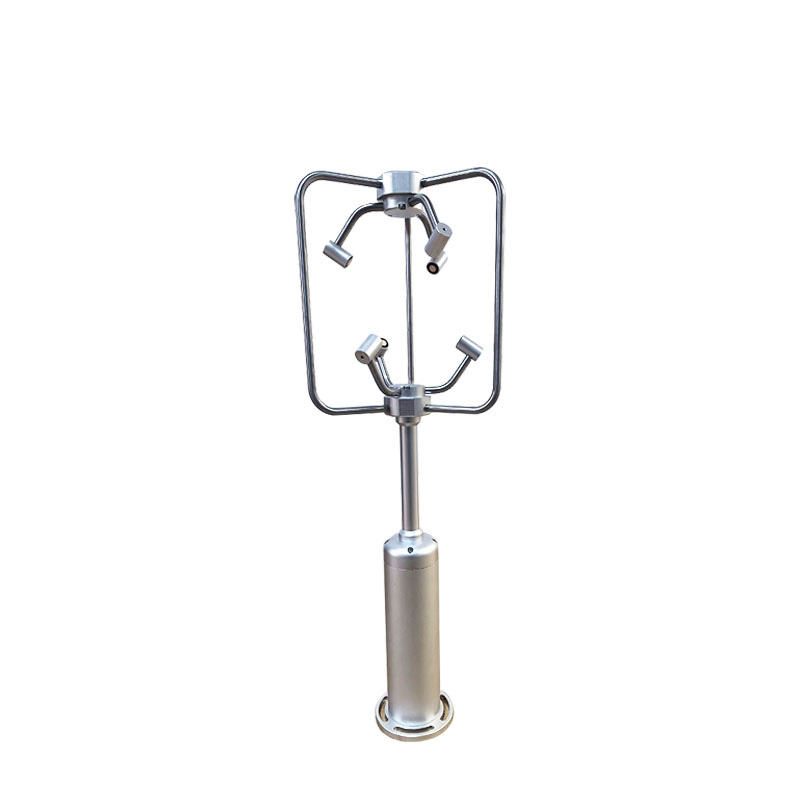

3D Ultrasonic Anemometer is a 3D wind sensor that uses advanced ultrasonic measurement technology, has no moving parts, and measures wind speed in three directions on the U, V, and W axes.The FT-SWF13D Ultrasonic Anemometer provides wind speed measurements in three dimensions at the same time.It adopts a high-quality aluminum alloy shell design, with a compact and beautiful structure, which is easy to install and maintain.It is mainly used in wind power generation, road and bridge meteorological monitoring, environmental protection, etc.

FT-SWF13D Ultrasonic Anemometer can measure the wind speed on the U, V and W axes in 2D measurement mode.

The FT-SWF13D Ultrasonic Anemometer is powered by 9~36V DC and is equipped with a 4-pin M12 connector for installation.Can work in extremely harsh environments without additional maintenance.The shell adopts a special surface treatment process, which has high corrosion resistance and wind and sand resistance, and the sealing protection level can reach IP67.

2.3D Ultrasonic Anemometer technical parameters and requirements

2.1 Environmental Requirements

Working temperature: -50℃～+85℃

Storage temperature: -50℃～+85℃

Working humidity: 0-100%

Altitude: 0~4000m

2.2 Function description

Type: 3D ultrasonic wind sensor

Housing material: hard oxygen aluminum alloy

Power supply: 9~36VDC

Weight: 1.5kg

Working current: 24V@20mA

Output signal type: RS-485

Protection level: IP66

Parameter settings: The configuration has been completed after the factory.If there are special requirements, the configuration software can be used to configure the baud rate, output method and other parameters.

Wind speed

Measuring range: 0~50m/s

Resolution: 0.01m/s

Accuracy: ±0.2m/s (0-10m/s), ±2% (>10m/s)

wind direction

Measurement range: 0~359.9° (the wind angle of 0~359.9° in the UV plane, pointing to the north line facing north, 0.0°=north, 90.0°=

East, 180.0°=south, 270.0°=west)

Resolution: 0.1°

Accuracy: ±2°

Sound wave temperature (wind temperature)

Temperature range: -50 to +50ºC

Resolution: 0.1ºC

Accuracy: ±2ºC (0~30m/s)

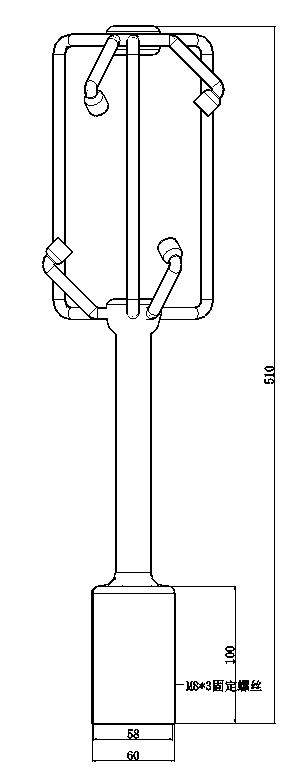

2.4.Equipment size
