O3 gas sensor
Model：FT-QT4S
Brand：tianyi
O3 gas sensor accurately measures ozone levels and comes with real-time monitoring, alarm notifications and data logging, suitable for monitoring ozone concentration.
Get a Free Quote- Product details
- Related products
- Related articles
1.O3 gas sensor technical parameters
O3 gas sensor accurately measures ozone levels and comes with real-time monitoring, alarm notifications and data logging, suitable for monitoring ozone concentration.
| model | Measurement parameters | Measurement range | Accuracy | Resolution | unit | Operating temperature | Working humidity |
| QT1 | Carbon monoxide | 0-1000PPM | ±2PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT1S | 0-20PPM | ≤±5% | 0.01PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| QT2 | Sulfur dioxide | 0-20PPM | ±1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT2S | 0-1PPM | ≤±5% | 0.001ppm | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| QT3 | Nitrogen dioxide | 0-20PPM | ±1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT3S | 0-1PPM | ≤±5% | 0.001ppm | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| Qt4 | ozone | 0-20PPM | ±1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT4S | 0-1PPM | ≤±5% | 0.001ppm | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| QT5 | Oxygen content | 0~30%VOL | ±3%FS | 0.1%VOL | VOL | -20℃-+50℃ | 5-95%RH No condensation |
| QT6 | Negative oxygen ions | 0~100,000 units/cm³ | ±10% | 10 pieces/cm³ | Units/cm³ | +10℃-+70℃ | 10-70%RH without condensation |
| QT7 | Hydrogen sulfide | 0-100PPM | ±2PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT8 | Methane | 0-100%LEL | ≤±3% | 1%LEL | LEL | -20℃-+50℃ | 10-95%RH without condensation |
| QT9 | Tvoc | 0-100PPM | 55±15 nA/ppm | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT10 | Ammonia | 0-100PPM | ±4PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT11 | Nitrogen monoxide | 0-250PPM | -2~10PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT12 | formaldehyde | 0-10PPM | <1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |

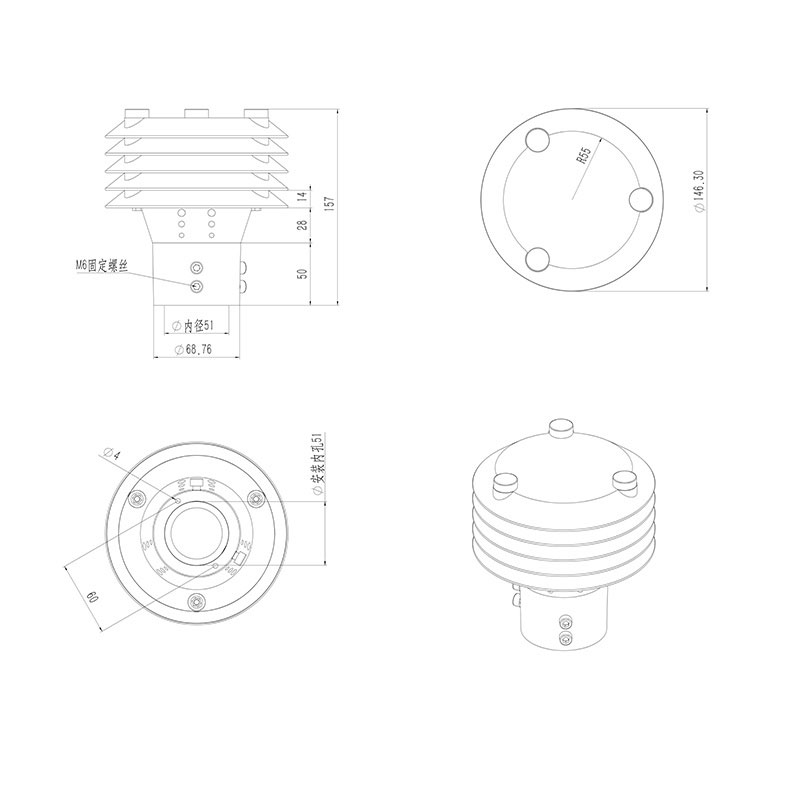

2.O3 gas sensor product size diagram
