location：Home>Products>Hydrological Monitor>Satellite Receiving Systems>Satellite data collection system
Satellite data collection system
Model：FT-WX1
Brand：tianyi
Satellite data collection system is a portable satellite meteorological and hydrological data broadcast receiving device that can receive various meteorological and hydrological data.
Get a Free Quote- Product details
- Related products
- Related articles
1.Introduction to Satellite data collection system equipment
Satellite data collection system is a portable satellite meteorological and hydrological data broadcast receiving device that can receive various meteorological and hydrological data.The Satellite data collection system is mainly used for individual meteorological and hydrological data reception tasks.It can be used to receive various meteorological and hydrological data such as meteorological and hydrological data issued by the satellite meteorological and hydrological data broadcasting system.It has the characteristics of easy portability and wide applicable areas.
2.Product features of Satellite data collection system
1.Stable signal and strong anti-interference ability
2.Easy to load and unload, suitable for rapid deployment in the field
3.Easy to carry, custom-made special portable box
4.Widely used and compatible with multiple satellite signals
5.Quality assurance, testing and certification by authoritative institutions
Special high-frequency head for satellite reception, strong anti-interference ability, stable signal, and signal quality can reach more than 70%
Portable handheld star-seeking instrument with high sensitivity, compatible with a variety of satellite signals, built-in lithium battery, can be connected to external power supply without connection

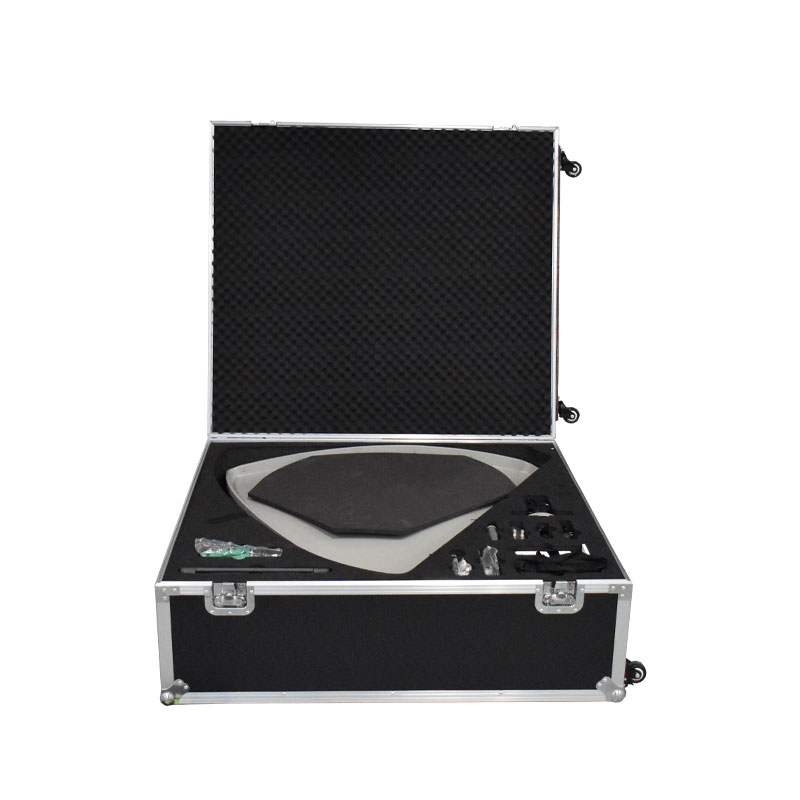

Professional custom portable box, reasonable layout, sturdy and durable, very suitable for field operations and long-term storage
3.Technical parameters of Satellite data collection system
| Local oscillator type | PLL phase-locked loop |
| Local oscillator stability | Maximum ±15kHz |
| Input frequency | C-band: 3.70~4.20 GHz; |
| Output frequency | L-band: 950~1450 MHz; |
| Local oscillator frequency | 5.15GHz |
| Gain | 55~62dBm |
| Antenna diameter | 150cm |
| size | 1020mm×920mm×300mm |
| weight | ≤55Kg; |
| Ambient temperature | -40℃~60℃ |
| Ambient humidity | 0～100% |
4.Satellite data collection system configuration list
| Accessories name | quantity |
| Portable antenna | 1 set |
| High frequency head | 1 |
| Coaxial cable | 30 meters |
| Feeding disc | 1 |
| Modem box | 1 unit |
| Starfinder | 1 unit |
| Electric hand drill | 1 |
| Laptop computer | 1 unit |
| Supporting connectors (20 pieces) | 1 set |
| Ground nails | 1 set |
| Instructions, certificates of conformity, warranty card | 1 set |
