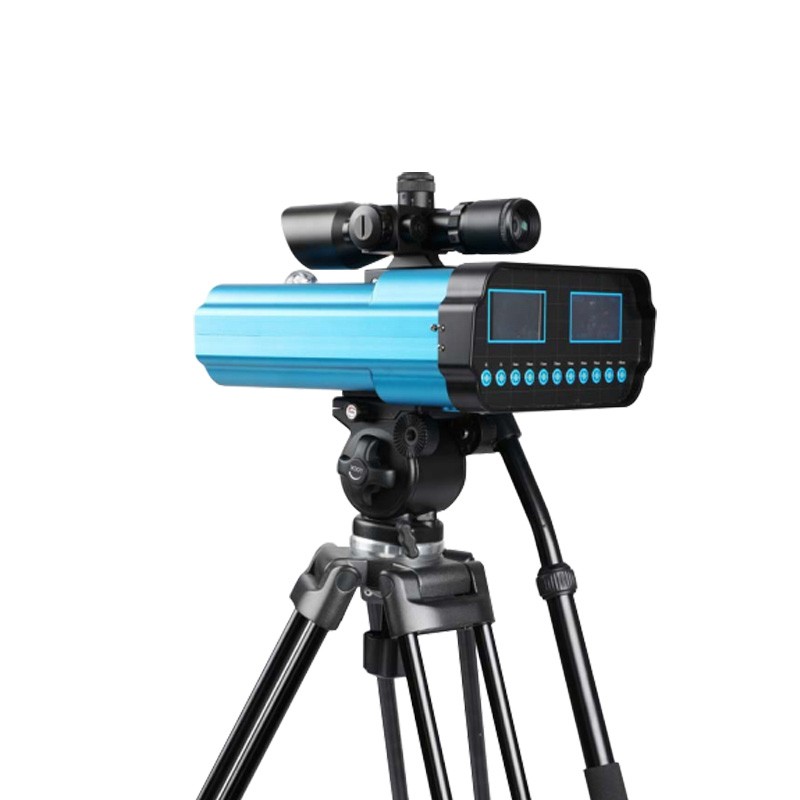

Displacement monitor Ensuring Operational Safety for Fire and Rescue Personnel

Displacement monitor utilizes a non-invasive laser-based detection method to provide continuous, long-range monitoring of displacement in structural components—such as walls, columns, and elements of dilapidated buildings. It triggers both audible/visual and wireless alarms upon detecting displacements as small as 1 millimeter, making it an ideal tool for fire services, earthquake rescue operations, civil defense, and public security agencies.

Designed specifically for frontline rescue operations, this portable Displacement monitor system monitors the deformation of unstable structures at sites affected by earthquakes or explosions. It helps define safe operational zones for rescue personnel, effectively mitigating the risks posed by potential structural collapses. Equipped with dual laser emitters, the device offers higher accuracy in displacement detection compared to single-laser systems. It can be deployed as a standalone unit or networked with multiple devices to accommodate rescue sites of varying scales. The system supports remote wireless control, allowing personnel to configure alarm thresholds from a safe distance, eliminating the need to approach hazardous structures. The unit features dual 5.8-centimeter (diagonal) displays: one for monitoring laser status and the other for a live video feed. An integrated 5-megapixel camera with zoom capabilities allows personnel to observe targets directly via the screen, removing the need for traditional optical sights. The video display includes a dedicated power switch, enabling it to be turned off after configuration to conserve battery life and extend operational duration. The device also integrates both local audible/visual alarms and wireless alarm outputs; should any structural component—such as a wall, floor slab, or column—shift by even a millimeter, the system immediately issues a warning, prompting personnel on-site to evacuate promptly.

The Displacement monitor features a lightweight, compact design, making it easy for rescue teams to transport and rapidly deploy at locations prone to collapse. It provides continuous, reliable monitoring during rescue operations following earthquakes, gas explosions, or building collapses. By filling a critical gap in structural dynamic monitoring, the device serves as a vital safeguard for the personnel of fire, public security, and civil defense agencies. The equipment features a straightforward operational logic, allowing on-site personnel to quickly master its deployment and configuration after basic training. It operates reliably even in the complex, noisy environments typical of rescue operations, providing consistent deformation monitoring data. By identifying hidden or sudden risks of structural instability, the system issues early warnings, thereby supporting the orderly execution of emergency rescue efforts.
