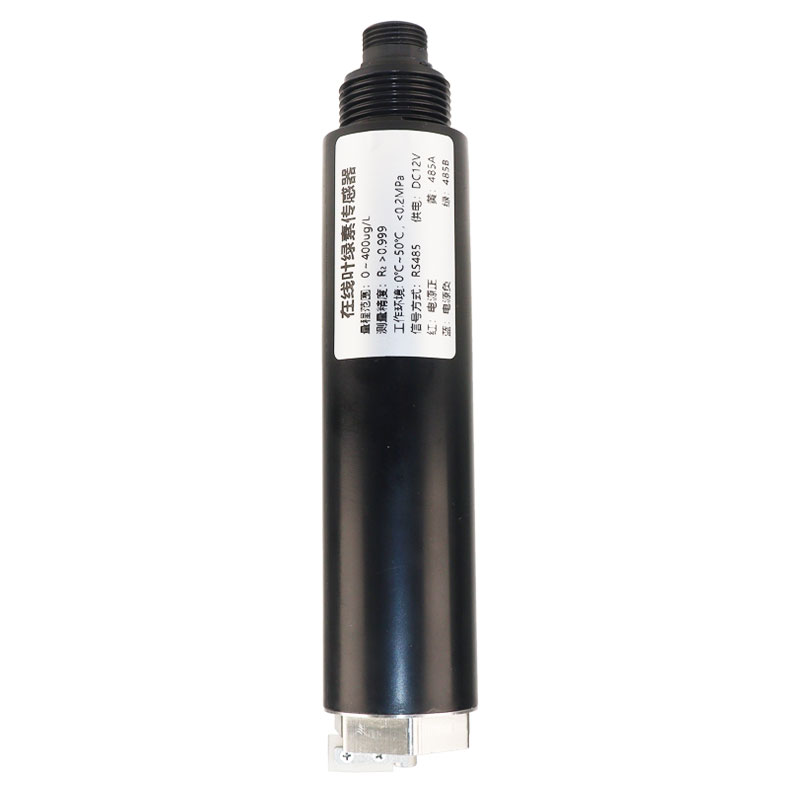

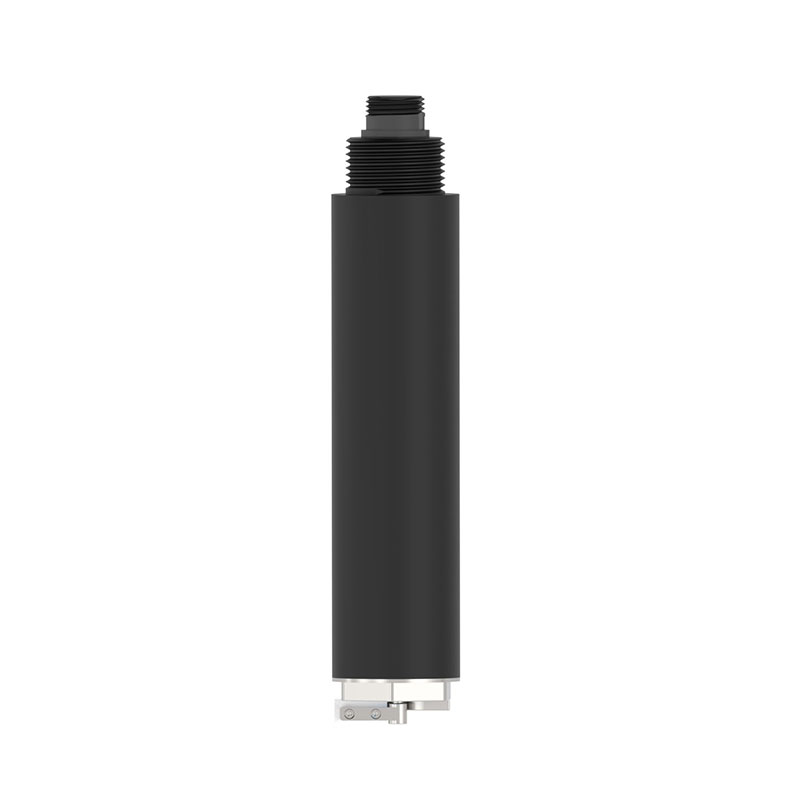

Chlorophyll Sensor

one.How Chlorophyll Sensor works

Chlorophyll Sensor is an instrument based on the principle of chlorophyll fluorescence. It detects the concentration of living algae cells in water by monitoring the fluorescence of chlorophyll!Chlorophyll Sensor is a device specially designed to detect chlorophyll content.Its working principle is based on the fluorescence and light absorption characteristics of chlorophyll.

Under natural light or light sources at a specific wavelength, chlorophyll absorbs light energy and emits fluorescence.The intensity of this fluorescence is proportional to the content of chlorophyll, so the content of chlorophyll can be estimated by detecting the intensity of fluorescence.

The advantage of Chlorophyll Sensor is that it can measure chlorophyll content in real time, quickly and non-destructively.It can be used for research, investigation and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton conditions.

two.Chlorophyll Sensor Technical Parameters

three.Chlorophyll Sensor size/installation

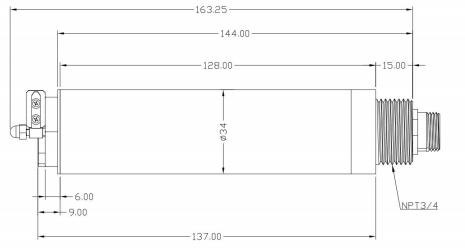

1.Chlorophyll Sensor size diagram

2.Wiring diagram

The cable is a 4-core shielded wire:

Red line—Power line (12～24V) Black line—Ground line (GND)

Green line—485B Yellow line—485A

3.Installation

1) The site can choose 6 points (3/4 NPT) threaded installation or

Installation accessories bracket installation, or other installation methods that can fix the sensor.

2) Fixed installation is preferred, and drag-chain installation is prohibited.

3) During installation, the water flow and liquid level changes should be fully considered to ensure that the water flow can cross the optical path, and the sensor is 10cm or deeper underwater.

4) Installation distance requirements: Keep it more than 3cm from the side wall and more than 10cm from the bottom.

Four.Chlorophyll Sensor Maintenance and Maintenance

1.Maintenance schedule

Maintenance project maintenance time note

Clean the sensor for 0.5 to 3 days (brushless) 4 to 8 weeks (brushed)

Sensor inspection for 6 months

Replace O-ring for 1 to 2 years

2.Maintenance method

1) Check the outer surface of the sensor and rinse the outer surface of the sensor with clean water.If there is still dirt residue, please wipe it with a moist soft cloth.For some stubborn dirt, you can add some household detergent liquid to the water to clean it.

2) Check the sensor cable to check whether there is any fracture in the outer shell of the cable.The cable should not be tight during normal operation.

3) Check the measurement window to check whether there is any dirt and wipe it with a dust-free cloth.

4) Sensor calibration can be calibrated through the upper computer software or by yourself

RS-485 sends MODBUS commands to calibrate by itself.

3.Sensor calibration

3.1 Zero Point Calibration

Use a brown beaker to measure an appropriate amount of distilled water, place the sensor vertically in the solution, and the front end of the sensor is at least 10cm away from the bottom of the beaker.After the value is stabilized, perform zero calibration.

3.2 Slope calibration

Place the sensor in a standard solution, and the front end of the sensor is at least 10 cm away from the bottom of the beaker.After the value is stabilized for 3 to 5 minutes, the slope calibration will be performed.
