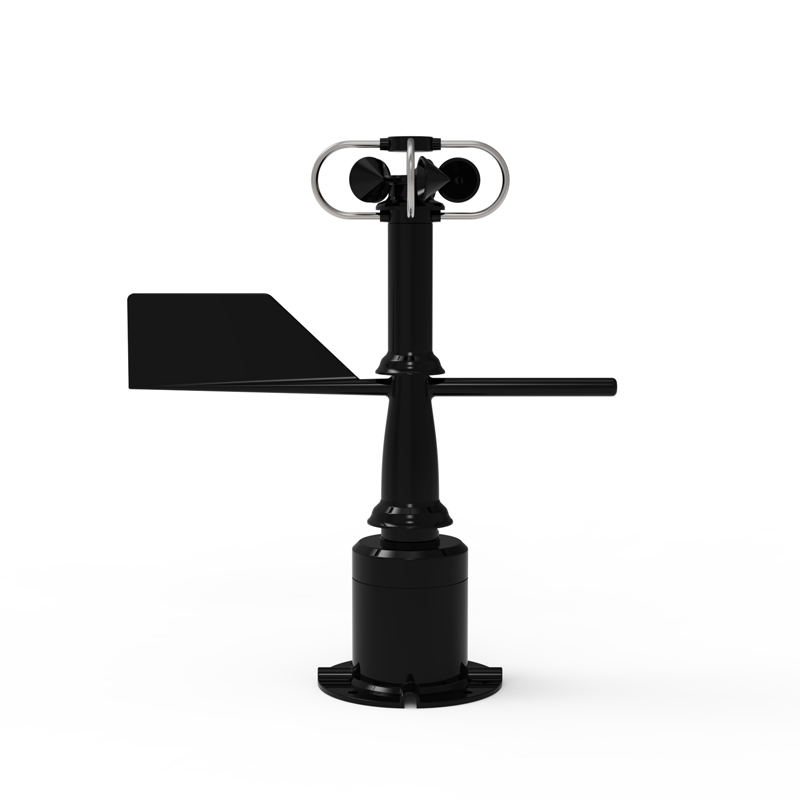

Wind speed and direction sensor
Model：FS485
Brand：tianyi
Wind speed and direction sensor is a device used to measure wind speed, wind speed and direction with high accuracy and reliability.
Get a Free Quote- Product details
- Related products
- Related articles
1.Mechanical anemometer technical indicators
Wind speed and direction sensor is a device used to measure wind speed, wind speed and direction with high accuracy and reliability.
Power supply: DC12V
Working environment: -40~70℃, humidity ≤100% without condensation
Communication interface: RS485
Operating current: 55mA DC12V
Starting wind speed: 0.5m/s
Minimum data interval: 0.5S
Housing material: polymer engineering plastic
2.Mechanical anemometer parameters
| parameter | Measurement range | Resolution | Accuracy |
| Wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |
| wind direction | 0-360 degrees | 0.1 degree | ±1 degree |
| Average wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |

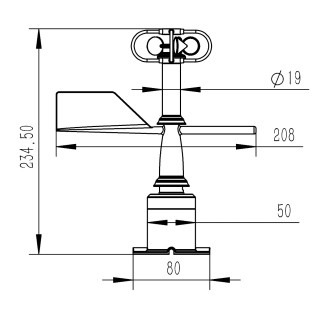

3.Mechanical anemometer appearance size
4.Mechanical anemometer installation requirements

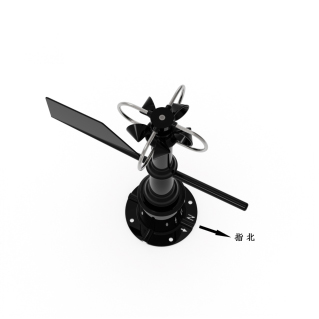

When installing, the direction of the base arrow N must be directed to the north (as shown in the figure above)
