rainfall measuring equipment
Model：YL1
Brand：tianyi
Rainfall measuring equipment is a rainfall measuring tool that provides accurate rainfall measurements and is very easy to operate.
Get a Free Quote- Product details
- Related products
- Related articles
1.Rainfall measuring equipment technical indicators
Rainfall measuring equipment is a rainfall measuring tool that provides accurate rainfall measurements and is very easy to operate.
1.Power supply: DC12V
2.Power consumption: 0.02W
3.Working environment: 0~50℃
4.Communication interface: RS485
5.Operating current: 2mA DC12V
6.Minimum data interval: 0.5S
2.Rainfall measuring equipment parameters
| Rain gauge diameter | Φ200mm |
| Operating temperature | 0～50℃ |
| Working humidity | <95% (no condensation) |
| error | ≤±2% |
| Resolution | 0.2mm |
| Rainy range | 0mm～4mm/min, maximum rainfall intensity allowed 8mm/min |
| Heavy rainy range | 0～10mm/min, maximum rainfall intensity allowed 15mm/min |
| Output method | Modbus485 |

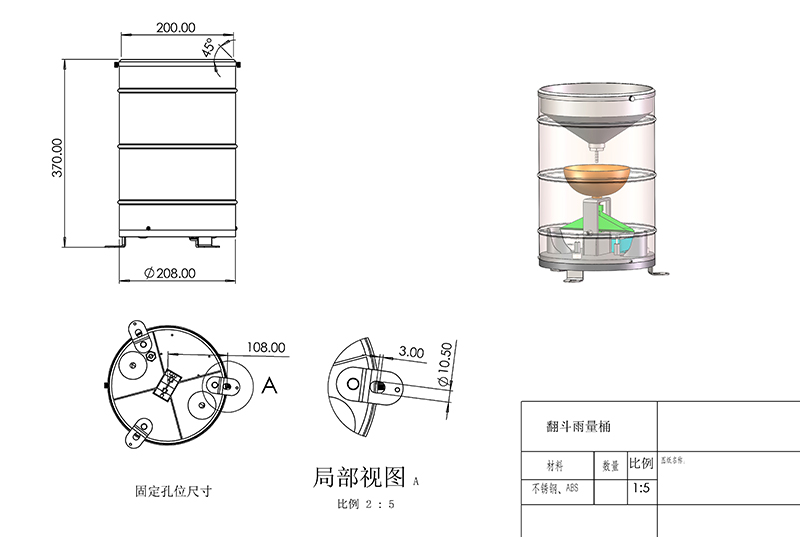

3.Rainfall measuring equipment product size diagram
Address:https://www.tianyisensor.com/Rain-Sensor/rainfall-measuring-equipment.html
Previous Article ：no more
Next Article：Optical Rain Gauge
-
