Video telemetry terminal

1.Video telemetry terminal product overview

Video telemetry terminal is a telemetry terminal for remote monitoring and control applications, integrating RTU function and video recorder function.Video telemetry terminal integrates industrial-grade telemetry monitoring equipment that integrates traditional telemetry terminal functions, 4G wireless, Ethernet transmission, and wireless video monitoring functions, and realizes data acquisition, storage, control, alarm, transmission, image capture, video overlay and other functions such as hydrology/water resources/environmental protection/energy consumption.It supports device communication, comes with IO input and output and analog quantity acquisition, and can be used in conjunction with on-site conditions.It has video image superposition transmission, data acquisition and transmission functions, and has logical operations and logic control functions.It mainly targets remote remote sensing remote measurement and remote monitoring applications in water resources, water conservancy, hydrology, water environment, environmental protection, industrial meteorology, agriculture, transportation, oil fields and other industries.

2.Video telemetry terminal equipment list

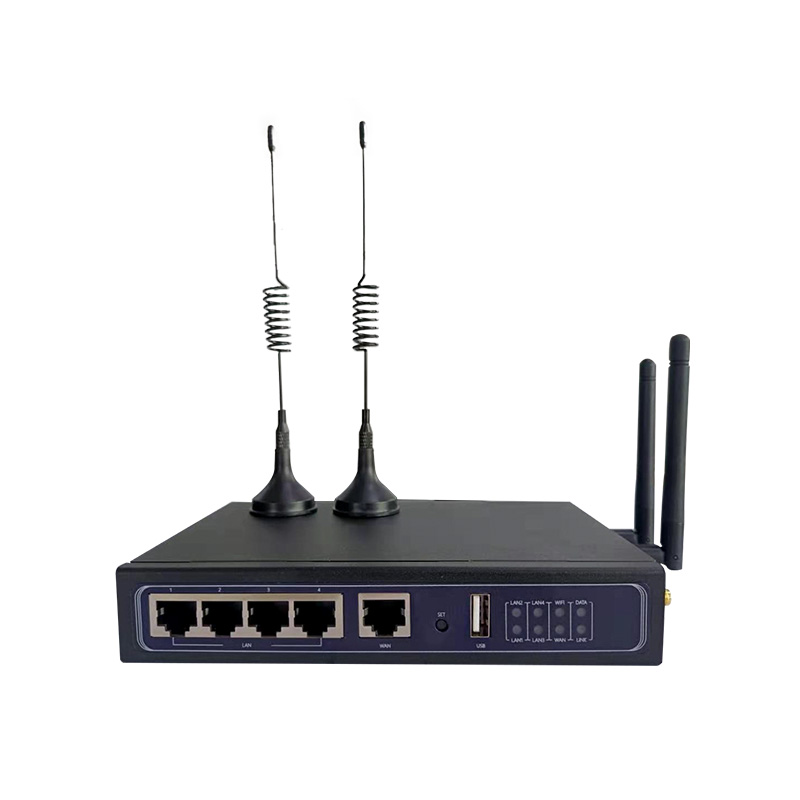

FT-ZD2Video telemetry terminal1

2 3-meter suction cup antennas (4G)

2 rod-shaped antennas (WIFI)

1 network cable (1 meter)

1 power supply (AC 220v to DC 12vDC adapter)

1 small screwdriver

1 instruction manual for use

After unboxing, please ask the user to count the quantity of items.The specific quantity is consistent with the user's order contract.If you find that the damaged, lost, or accessories are inconsistent, please contact the manufacturer in time.

3.Video telemetry terminal technical parameters

AI input configuration: 2 analog quantity acquisition inputs

DI input configuration: 2-channel switching input

DO output configuration: 1 relay output (optional)

Storage capacity: 64G cyclic storage

Equipped with 100-megapixel WAN port, providing high-speed network connection

Equipped with 4 100-megabit LAN ports, providing high-speed transmission capability

Configure hotspot access to wifi network (initial password 12345678)

Provide high-speed, low-latency, and high-stability 4G network communication

Serial port configuration: 2-channel RS485

Power supply: 9V~24V DC.

Average current: <200mA/12V

Working environment: Temperature: -30℃~75℃; Humidity: <95% (no condensation)

Installation method: Rail installation

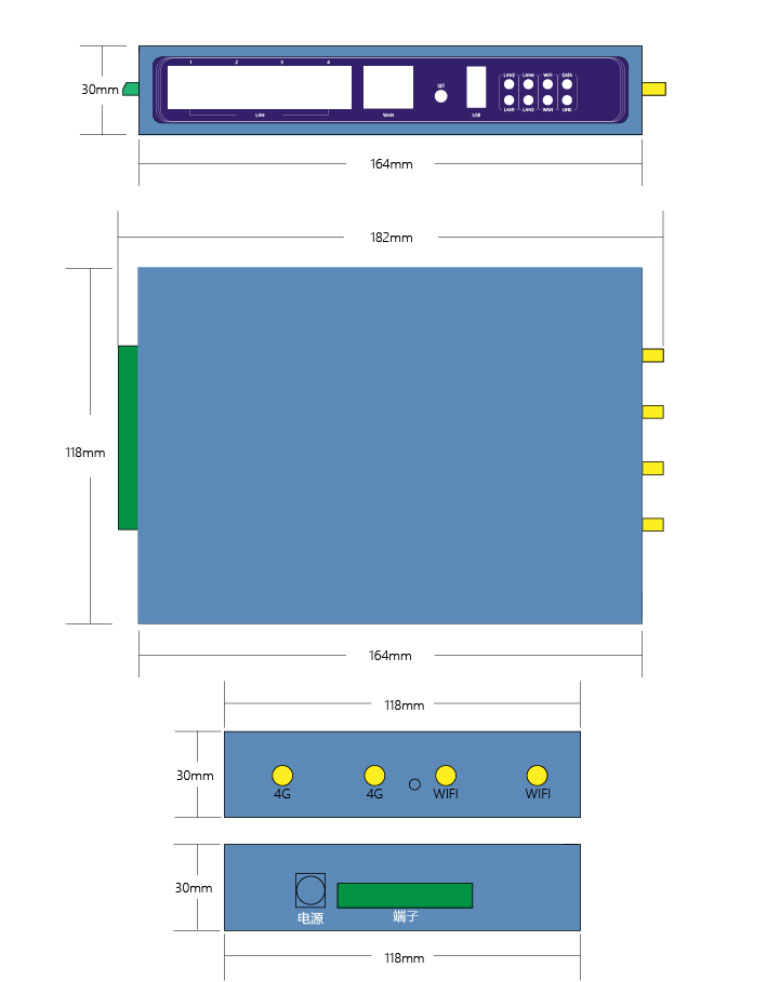

Dimensions: 182mm×118mm×30mm

4.Video telemetry terminal installation and fixation
