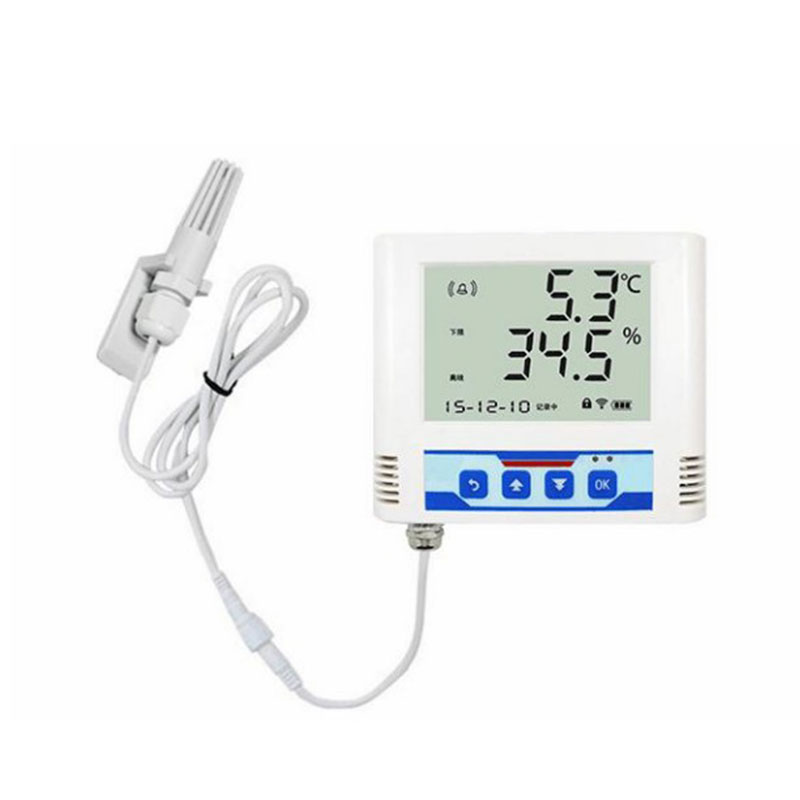

Ethernet temperature and humidity monitor

Ethernet temperature and humidity monitor is based on Ethernet transmission method and can accurately measure temperature and humidity.The industrial-grade Ethernet temperature and humidity monitor uploads the collected temperature and humidity data to the server through Ethernet, supports communication within the LAN, cross-gateway WAN communication, and supports dynamic domain name resolution DNS.

Original high-quality temperature and humidity measurement unit imported from Switzerland, the probe can be extended, and the probe line can be up to 30 meters long

Upload data through Ethernet, support intra-LAN communication, cross-gateway WAN communication, and support secondary development

Support dynamic domain name resolution DNS

Device parameters are configured via Ethernet, which is simple and convenient

Temperature and humidity acquisition frequency 2S/time, data upload frequency 1S~10000 S/time can be set

Built-in alarm function, can set the upper and lower limits and return difference value of the alarm

It has 2 normally open contacts, and can be associated with any alarm output (optional)

Built-in one-way buzzer, extended one-way sound and light alarm (optional)

Free local monitoring software platform, environmental monitoring cloud platform and YY version cloud platform

Equipment adaptation: DC10~30V wide voltage power supply

Probe working temperature: 40℃~+120℃, default -40℃~+80℃

Probe working humidity: 0%RH-100%RH

Temperature display resolution: 0.1℃

Humidity display resolution: 0.1%RH

Temperature and humidity refresh time: 1s

Long-term stability: humidity ≤1%RH/y

Temperature ≤0.1℃/y

Response time: Humidity ≤8s (1m/s wind speed)

Temperature ≤25s (1m/s wind speed)

Data upload time defaults to 20S/time, 1S~10000S

Internal storage can be set, recording cycle: 1 minute-24 hours can be set, recording capacity: 65,000 groups
