Car Vehicle Mounted Auto Weather

1.Introduction to Car Vehicle Mounted Auto Weather Products

Car Vehicle Mounted Auto Weather uses ultrasonic waves to measure wind speed and direction. It can be mounted on a ground vehicle to observe weather phenomena while on the move.Car Vehicle Mounted Auto Weather is a highly integrated, low-power, fast installation and easy to monitor high-precision automatic weather observation device.

It is widely used in meteorology, agriculture and forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

The device uses a two-element integrated sensor, which can observe wind speed and wind direction in real time.The sensor shell is made of imported Stainless steel material, which is more effective in resisting salt spray and other environments, and has a protection level of more than IP65.

The standard 485-to-USB cable can be connected to a laptop or pad to read data directly.Customers can randomly select a pad according to their own situation.

2.Features of Car Vehicle Mounted Auto Weather

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation and avoid natural wind shading

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and the wind speed is detected by measuring the relative phase.

3.The bottom of the equipment is equipped with a high-strength magnet (wrapped with rubber), which can be absorbed on the roof without loss.

4.Shock-absorbing suitcase, easy to carry

5.Built-in electronic compass, automatically find North

6.Beidou and GPS dual-mode positioning, with maximum accuracy of 0.1 meters

3.Car Vehicle Mounted Auto Weather Technical Parameters

1.Wind speed: Ultrasonic principle, 0~60m/s (±0.1m/s), can measure the real wind speed

2.Wind direction: Ultrasonic principle, 0～360° (±2°)

3.Data storage: no less than 500,000 pieces;

4.Power consumption: 1.75W

5.Lithium battery: capacity 12000maH, battery life ≥50h

6.Total weight: ≤5kg

7.Layout time: 1 person, no more than 2 minutes to complete the layout;

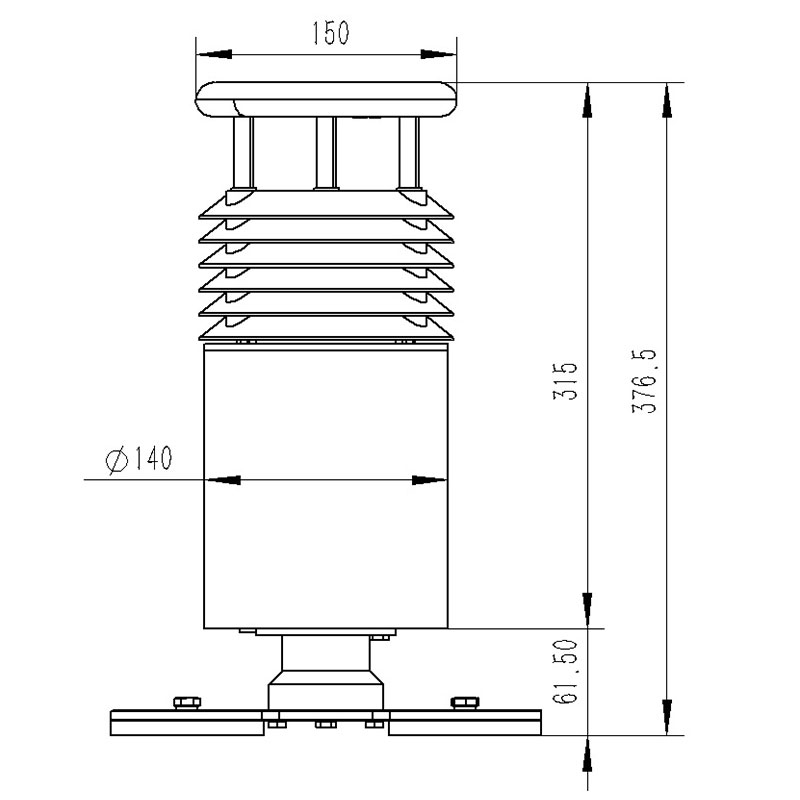

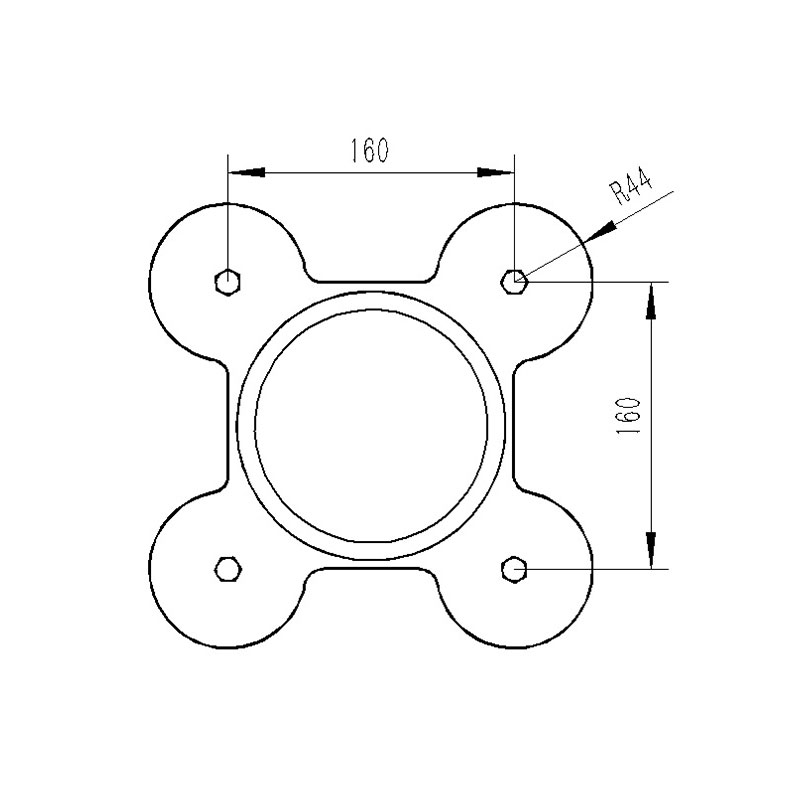

4.Car Vehicle Mounted Auto Weather Size Diagram

5.Introduction to Car Vehicle Mounted Auto Weather computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.You can set the storage time yourself.You can set the acquisition time yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts
