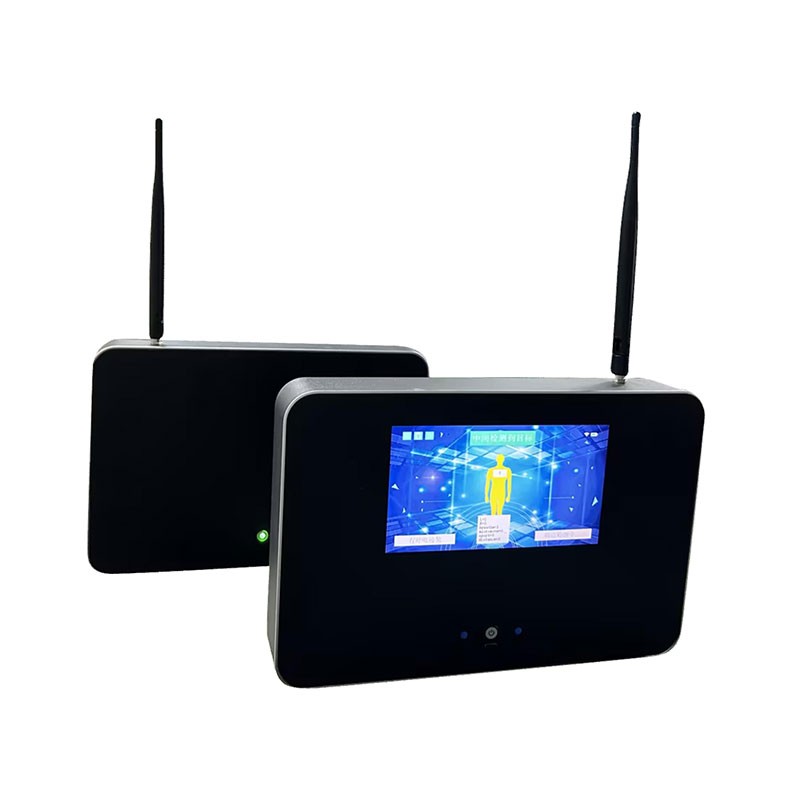

3D radar life detector Pinpointing Trapped Lives Through Rubbl

3D radar life detector integrates Ultra-Wideband (UWB) radar, millimeter-wave radar, and biomedical engineering technologies. By utilizing the Doppler effect to capture human breathing and heartbeat signals, it can penetrate non-metallic walls up to 50 cm thick, enabling 3D spatial localization and real-time tracking of living subjects amidst complex environments such as rubble and collapsed structures.

3D radar life detector is a vital sign detection device that combines UWB radar, millimeter-wave radar, and biomedical engineering technologies. Operating on the principle of the Doppler effect—where the presence of a moving object alters the radar echo—the device captures signals via high-gain antennas. Through analysis by an intelligent recognition chip and processing via localization algorithms, it achieves real-time target tracking and visually displays detection data on a screen. Lightweight, compact, and easy to operate, the device is suitable for individual deployment across various mission scenarios, including military reconnaissance, fire and rescue operations, and security searches.

Regarding penetration capabilities, 3D radar life detector employs multi-frequency transmission radar and high-gain receiving antennas to overcome line-of-sight limitations, detecting vital signs behind non-metallic barriers (such as brick or rock) exceeding 50 cm in thickness. Utilizing multi-band array radar technology combined with AI algorithms, the device performs high-precision, real-time 3D localization and tracking, visualizing the target's posture and position through real-time 3D rendering. By analyzing accumulated Doppler echo signals, it precisely captures human respiratory characteristics, enabling non-contact vital sign detection for stationary or immobile targets. It offers a detection range of up to 50 meters and a 120-degree field of view.

Equipped with high-sensitivity sensors and intelligent algorithms, 3D radar life detector captures aftershock and micro-tremor signals in real-time, issuing alerts via the terminal. The handheld terminal connects seamlessly to the detection unit using high-speed wireless technology, supporting remote parameter configuration and real-time data transmission over distances exceeding 100 meters. The device features a dual power supply system with a built-in 5000mAh lithium battery, providing approximately 10 hours of operation to meet the demands of extended missions. The system boots up within three seconds and features a self-test function that alerts the user to any faults. It is highly resistant to interference; normal movement by the operator does not affect radar performance, and the system can filter out and flag nuisance alarms caused by targets outside the area of interest. In silent mode, it provides a dynamic, noiseless display of detection data and radar status, facilitating covert operations. Additionally, the device can identify metal walls or steel-frame structures, helping operators locate structural weak points for more effective detection.

In disaster rescue scenarios—such as earthquake rubble, building collapses, or landslides—the 3D radar life detector utilizes its penetration capabilities and 3D positioning technology to search for trapped individuals over a wide area. Measuring 400mm x 300mm x 50mm and equipped with a 7-inch LCD screen, the unit features a compact, portable design.
