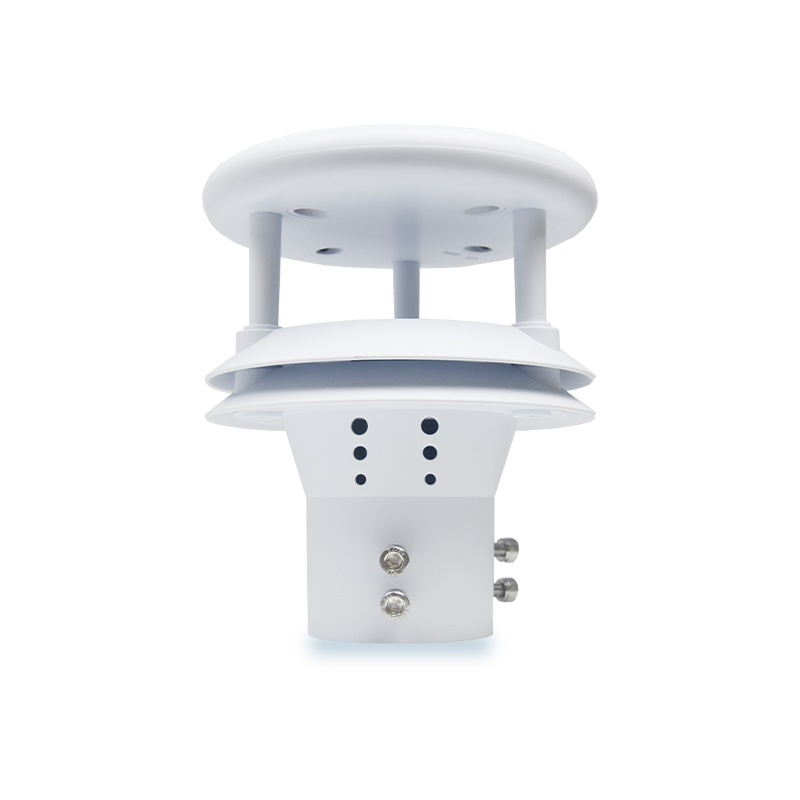

instrument to measure rainfall PVDF Piezoelectric Film and AI Recognition Technology

instrument to measure rainfall utilizes a PVDF piezoelectric film as its core rain sensing component, combined with embedded AI neural network technology to accurately distinguish raindrop signals. It is used for remotely measuring precipitation amount, precipitation intensity, and precipitation start and end times, providing accurate rainfall data support for meteorology, water conservancy, transportation, and other fields.

instrument to measure rainfall is an instrument specifically designed for automatically measuring and recording liquid precipitation parameters. Traditional mechanical tipping bucket rain gauges rely on physical water collection and tipping to count rainfall, while the monitoring instrument using PVDF piezoelectric film technology represents a non-mechanical, high-sensitivity new measurement principle.

Its core sensing component is the PVDF piezoelectric film. When this polymer material is deformed by the impact of raindrops, it generates a weak electrical charge signal on its surface, and the signal strength is related to the impact energy. Raindrops of different sizes and terminal velocities impacting the sensor surface will produce voltage waveforms with subtle differences. The device's built-in high-precision signal acquisition circuit is responsible for capturing and amplifying these weak analog signals.

The key technology lies in the precise identification of raindrop signals. The collected raw voltage signals are sent to an embedded processing unit, where an AI neural network algorithm analyzes the signals. This algorithm has been trained with a large number of raindrop and interference signal samples (such as sand particle impacts and wind-induced vibrations), enabling it to effectively distinguish real rainfall events from noise and identify the signal characteristics corresponding to individual raindrops. By analyzing the characteristics, quantity, and intensity of the signals per unit time, the algorithm can infer and calculate the raindrop size distribution information.

Based on the above principles, the instrument can output three types of core data. First, cumulative precipitation, which is the total volume of rainfall collected per unit area, in millimeters. Second, precipitation intensity, which reflects the amount of rainfall per unit time, used to determine the rain intensity level (e.g., light rain, heavy rain). Third, accurate precipitation start and end times, recording the start and end times of each rainfall event. This data is transmitted in real-time to a data center via wired or wireless means.

In practical applications, this monitoring instrument provides basic data support for multiple fields. In meteorology, it forms the basis of weather observation and forecasting networks, used to monitor the spatial and temporal distribution of precipitation. In the field of water resources and hydrology, it provides crucial input for basin water resource management, reservoir operation, flood forecasting, and flood control decision-making. In the transportation sector, especially for highways and airports, real-time rainfall intensity data is essential for issuing traffic safety warnings, implementing traffic control, and ensuring the safety of flight operations. Furthermore, it is widely used in urban flood monitoring, agricultural irrigation guidance, and ecological research.

Compared to traditional tipping bucket rain gauges, this monitoring instrument based on PVDF and AI technology has potential advantages such as no moving parts, resistance to clogging, the ability to sense raindrop size distribution information, and high sensitivity, making it particularly suitable for remote areas requiring high temporal resolution precipitation data and where maintenance is difficult.

In summary, this device, utilizing PVDF piezoelectric film and AI intelligent recognition technology, transforms physical signals into analyzable digital information, enabling more refined automatic observation of precipitation processes. It is an important tool for obtaining accurate precipitation data in modern hydrological and meteorological monitoring systems.
