Six element sensor

1.Six element sensor product introduction

Six element sensor includes six meteorological environment elements, such as temperature, humidity, atmospheric pressure, PM2.5, PM10, and noise.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research and development and production of meteorological sensors, has always been committed to the promotion and application of meteorological sensors and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, the sensors we develop and produce have been widely used in smart agriculture, meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels and other fields.Customers are spread all over the country and have achieved good social and economic benefits.

2.Six element sensor product features

1.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

2.High integration, no moving parts, zero wear

3.Maintenance-free, no on-site calibration required

4.Use ASA engineering plastics for outdoor applications without changing color all year round

5.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

6.Optional wireless transmission module, minimum transmission interval of 1 minute

3.Six element sensor technical parameters

1.Air temperature: -40-60℃ (±0.3℃); (Calibration certificate of Beijing Meteorological Bureau)

2.Air humidity: 0-100%RH (±3%RH); (Calibration Certificate of Beijing Meteorological Bureau)

3.Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate of Beijing Meteorological Bureau)

4.PM2.5: 0-1000ug/m3 (±10%)

5.PM10: 0-1000ug/m3 (±10%)

6.Noise: 30-120dB (±1.5dB)

7.Power: 0.72W

8.The manufacturer has a computer software registration certificate☆

9.The manufacturer is a 3A-level credit enterprise☆

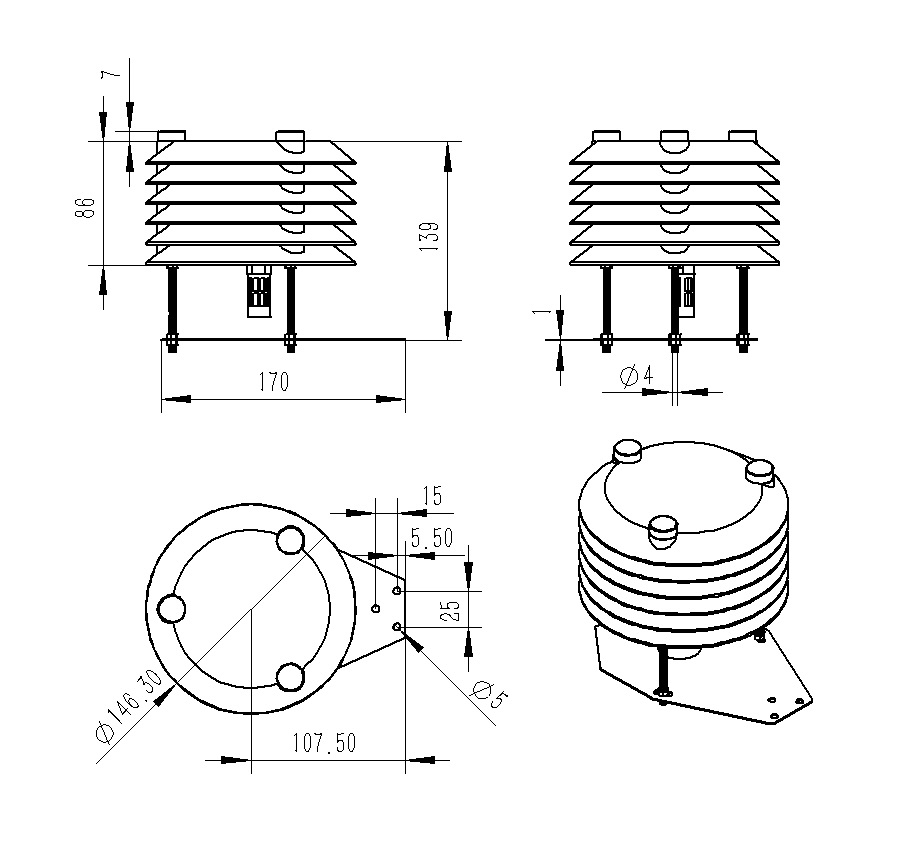

4.Six element sensor product size diagram

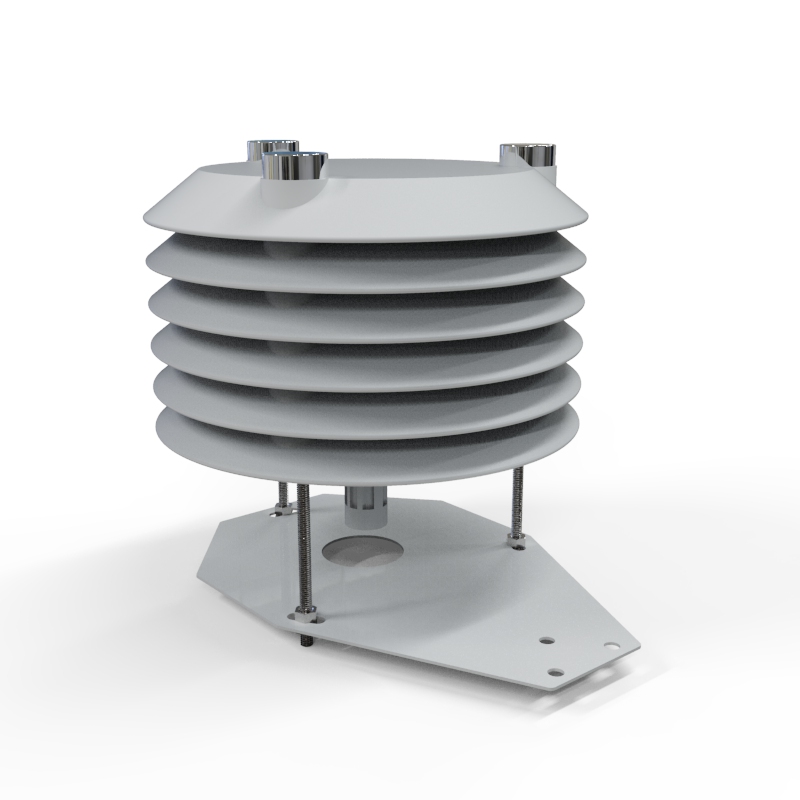

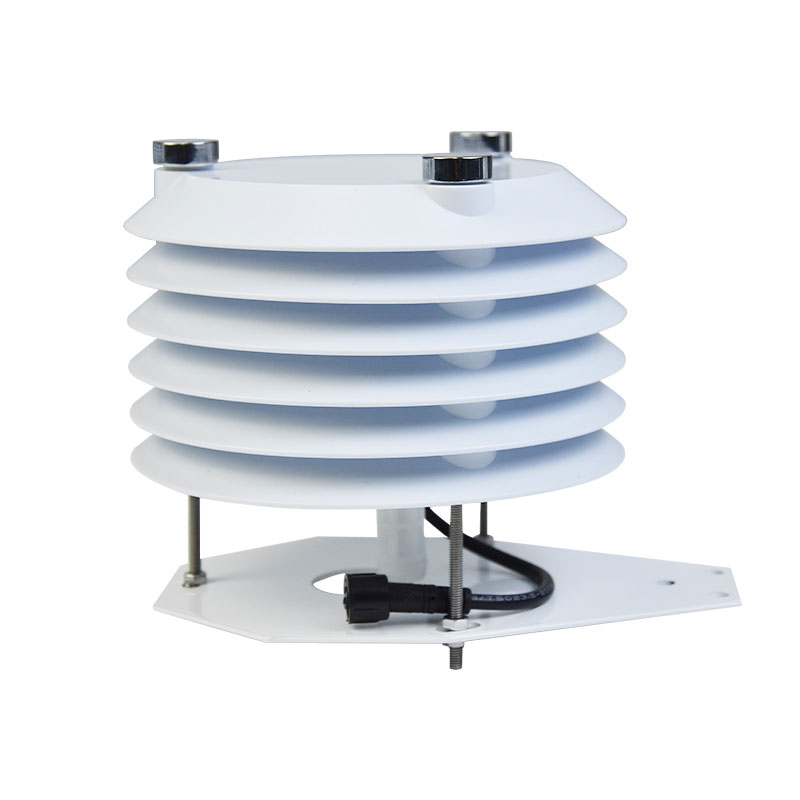

5.Six element sensor product structure diagram
