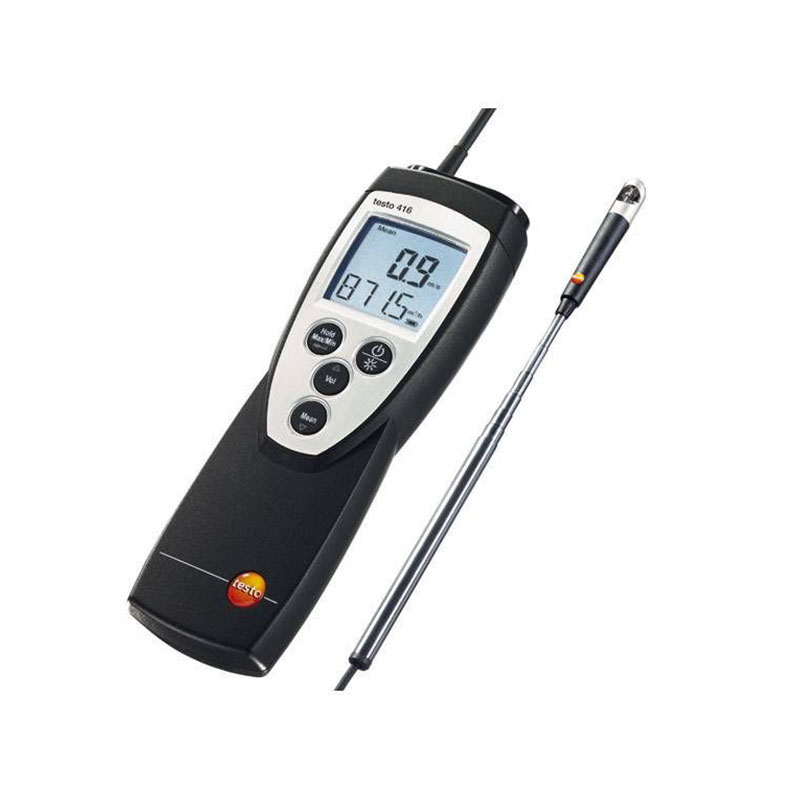

Pipeline wind speed sensor
Model：testo416
Brand：tianyi
Pipeline wind speed sensor is designed to measure the wind speed in the pipeline. It is a high-precision wind speed measurement product with sensitive response.
Get a Free Quote- Product details
- Related products
- Related articles
1.Introduction to Pipeline wind speed sensor
Pipeline wind speed sensor is designed to measure the wind speed in the pipeline. It is a high-precision wind speed measurement product with sensitive response.The Pipeline wind speed sensor is equipped with a large backlit display, which quickly and clearly displays reliable wind speed measurement data.
The fixed impeller wind speed probe with telescopic handle can reach 890mm in length, and the compact impeller probe diameter is 16mm, making it an ideal tool for measuring wind speed in ventilation ducts.
The Pipeline wind speed sensor directly displays the air volume.You only need to enter the pipeline cross-sectional area to accurately calculate the average air volume in multiple points and time periods.The testo 416 precision impeller anemometer also has the reading holding function, freezing the last measurement data, making it easy to read, and the buttons can directly display the maximum/minimum value.
2.Pipeline wind speed sensor product composition
Pipeline wind speed sensor with 16mm diameter impeller probe, telescopic handle (up to 890mm), including battery and factory reports.
3.Pipeline wind speed sensor technical parameters
| weight | 325g |
| size | 182x64x40mm |
| Operating temperature | -20~+50°C |
| shell | ABS |
| Battery Type | 9V battery |
| Battery usage time | 80 hours |
| Storage temperature | -40~+70°C |
| Impeller wind speed | |
| Measurement range | 0.6~40m/s |
| Measurement accuracy | ±(0.2m/s+1.5% measured value) |
| Resolution | 0.1m/s |
