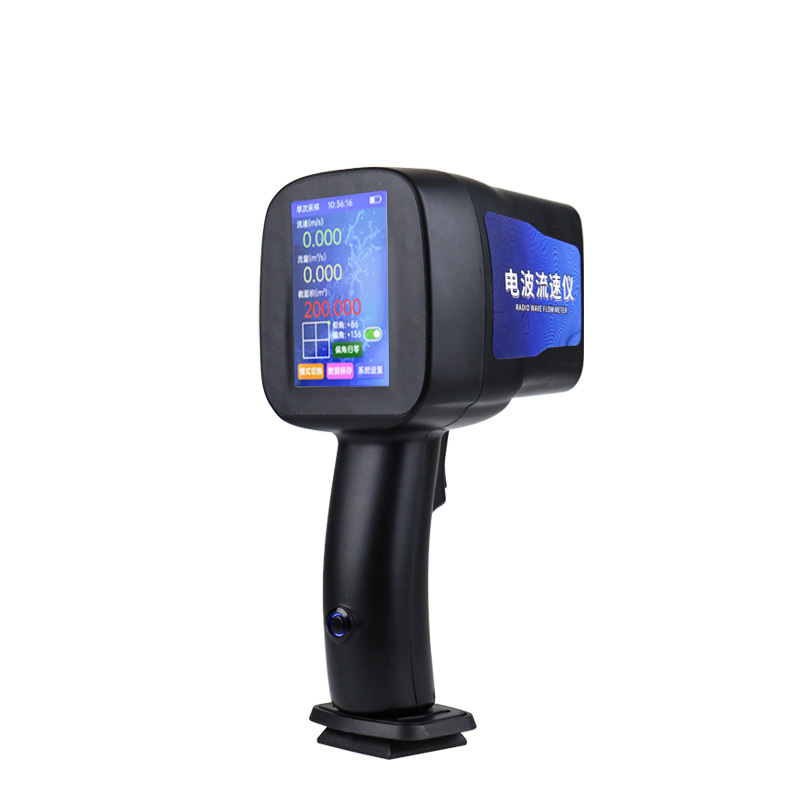

Handheld radar flow meter

1.Handheld Radar flow meter product introduction:

Handheld radar flow meter is used to measure water flow velocity in areas such as rivers, streams, sewers, wastewater treatment plants, industries and hydroelectric power plants.Handheld radio wave (radar) flow velocity meter, which uses K-band radar to conduct contactless flow velocity measurements on rivers, sewage, mud, and oceans.It has the characteristics of small size, handheld operation, battery power and ease of use.During use, it is not corroded by sewage and is not disturbed by silt and sand, and can conduct non-contact measurements within a measuring range of less than or equal to 100 meters, ensuring the safety of the measuring instrument.The instrument includes a high-sensitivity planar narrowband radar probe and angle meter.It requires no settings and can achieve automatic correction of horizontal and vertical angles and correct flow rate measurements with one-click operation, which is very convenient to use.

2.Handheld radar flow meter application fields:

Channel flow rate monitoring, river flow rate monitoring, sewage flow rate monitoring, ocean flow rate monitoring, railway bridge construction flow rate monitoring; flood prevention and flood control site emergency monitoring, sewage discharge monitoring, other occasions that require on-site measurement, etc.

3.Main features of Handheld Radar flow meter:

1.For single use, the instrument weight is less than 1kg, and can be measured by hand or placed on a tripod (standard);

2.The screen is 3.5 inches, full touch operation; ☆

3.Chinese and English interface, guided operation, easy to use and easy to manage; ☆

4.Non-contact operation, not affected by silt and sand, nor corroded by water;

5.Various measurement modes, which can be measured in a single time; they can also be measured continuously for 30 minutes; they have a single-machine flow estimation mode, which can estimate the flow of river canals with regular sections;

6.Built-in rechargeable lithium battery, which can be used continuously for more than 10 hours;

7.Built-in angle sensor, which can automatically correct vertical and horizontal angles;

8.The instrument shell uses ABS resin material and aluminum alloy frame, impact resistance, heat resistance, low temperature resistance, corrosion resistance and electrical insulation, protecting the personal safety of the surveyors during thunderstorms;

4.Handheld Radar flow meter technical indicators:

1.Measuring range: 0.1~30m/s

2.Measuring accuracy: ±3%, ±0.01m/s☆

3.Radio wave emission angle: 24°x12° (radio wave longitudinal emission angle x transverse emission angle)☆

4.Data storage: 10,000 measurement results☆

5.Battery capacity: 3600mAh☆

6.Standard power of radio wave transmission: 10mW

7.Radio wave transmission power: 18dBm

8.Radio wave frequency: 24GHz

9.Waterproof level: IP67

10.Measuring distance: less than or equal to 100 meters

11.Angle compensation: automatic vertical angle

12.Use temperature range: -30~+70℃

13.Relative humidity range: 20%~80%

14.Storage temperature range: -30~+70℃
