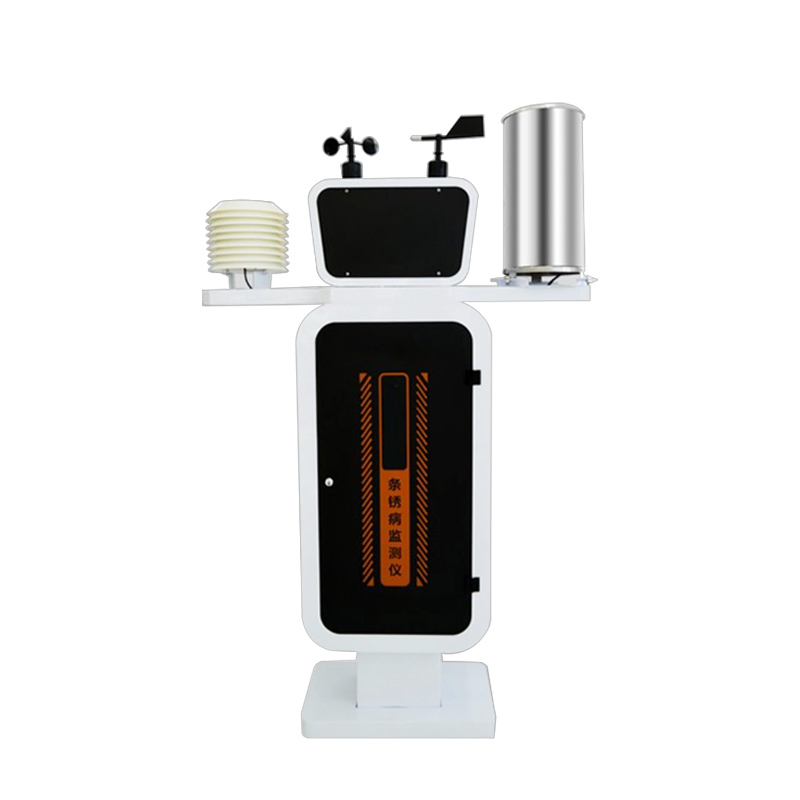

Wheat stripe rust monitoring instrument

1.Product introduction of Wheat stripe rust monitoring instrument:

Wheat stripe rust monitoring instrument can achieve high-precision monitoring of wheat stripe rust in a large area, which is of great significance to ensure the safety of wheat production.The real-time monitoring and early warning device for crop diseases is an unattended meteorological acquisition system integrating meteorological data collection, storage, transmission and management.The Wheat stripe rust monitoring instrument conducts all-weather on-site monitoring of wind speed, wind direction, rainfall, air temperature, air humidity, atmospheric pressure and other factors.And wirelessly transmitted to the platform storage and analysis through 4G.The system can be used for automatic analysis and calculation through the built-in strip rust data model, which can be widely used in agricultural production.

2.Functional features of Wheat stripe rust monitoring instrument:

1.Collector: It adopts industrial-grade processing chip and is equipped with an ABS case.It is lightweight, sturdy and beautiful.7-inch LCD display screen, suitable for all kinds of harsh environments.

2.It has external USB disk storage expansion function.

3.Automatically analyze strip rust infection data, and automatically draw strip rust infection curves and microclimate environment data curves.

4.Prediction model: Corresponding prediction models can be established based on the growth characteristics and pathogen data of different crops to monitor and early warning of the occurrence trend of major crop diseases;

5.Disease data: With historical data backup and export functions, and can be displayed in diversified methods such as trend charts and bar charts.

6.Various viewing forms, supporting Web/App/WeChat official accounts and other methods to share stripe rust analysis data.

7.It has a GPS positioning module that can upload location information in real time.

8.Collect regularly and upload monitoring information automatically.

9.4G wireless transmission, interruption point transmission continues.

10.Solar power supply system.Extra long battery life.

3.Wheat stripe rust monitoring instrument sensor parameters

1.Air temperature: -30~70℃, accuracy: ±0.3℃

2.Air humidity: 0~100%, accuracy: ±3%

3.Wind speed: 0～45m/s, accuracy: ±1m/s

4.Wind direction: 0-360° Accuracy: ±1°

5.Rainfall: 0~50mm/hour, error: ±4%

6.Atmospheric pressure: 50-110Kpa, accuracy: 15 digits
