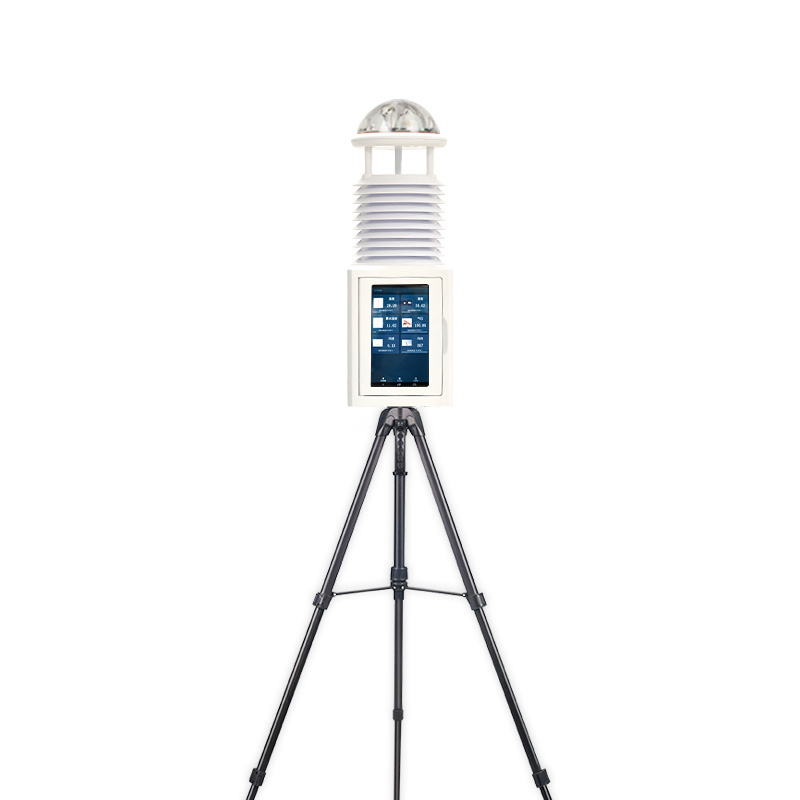

Micro Weather Station

1.Introduction to Micro Weather Station

Micro Weather Station provides accurate and timely weather data, integrating the main meteorological parameters such as wind direction, wind speed, etc.BQX2 Micro Weather Station is a highly integrated, low-power, fast installation and easy for field monitoring.

The device supports wired, Bluetooth, GPRS and other transmission methods, is debug-free and can be quickly arranged.It is suitable for the acquisition of meteorological data such as short-term emergency meteorological observations and mobile meteorological monitoring.It is widely used in meteorology, agriculture and forestry, environmental protection, ocean, airport, port, scientific investigation, campus education and other fields.

The equipment uses an integrated sensor for wind speed and direction.The sensor housing is made of imported Stainless steel material, which is more effective in resisting salt spray and other environments, and the protection level reaches IP65 or above.

2.Micro Weather Station product features

1.The hidden ultrasonic probe on the roof cover can avoid interference from rain and snow accumulation, and avoid natural wind shading☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase☆

3.Integrated sensor for wind speed and direction☆

4.Standard configuration: GPRS, Bluetooth, 485 to USB

5.Aluminum alloy bracket, retractable

6.Shock-absorbing protective trolley case, easy to carry

3.Micro Weather Station technical parameters

1.Wind speed: range: 0～60m/s, accuracy: 0.1m/s+0.01v, resolution: ±0.1m/s;

2.Wind direction: 0～360° (±2°), Accuracy: ±2°, Resolution: 1°;

3.Data storage: no less than 500,000 pieces;

4.Power consumption: 1.75W

5.Lithium battery: capacity 12000maH, battery life ≥50h, battery capacity display function

6.Total weight of equipment: ≤5kg;

7.Layout time: 1 person, no more than 2 minutes to complete the layout;

8.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification

9.The manufacturer has a computer software registration certificate

10.The manufacturer is a 3A credit enterprise

4.Introduction to Micro Weather Station’s computer software

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.You can set the storage time yourself.You can set the acquisition time yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

5.Introduction to Micro Weather Station Android APP

1.Android stand-alone version of data reception, storage, viewing and analysis software

2.Support Bluetooth data reception

3.The software background reception and processing after the mobile phone is dormant

4.Automatically add the device to json data, modbus device supports scanning code to add the device

5.Support historical data viewing, analysis, and export tables, support curve display and single data point viewing.

6.Support data post-processing function

7.Support external running of javascript scripts

6.Introduction to Micro Weather Station Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to scale, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
