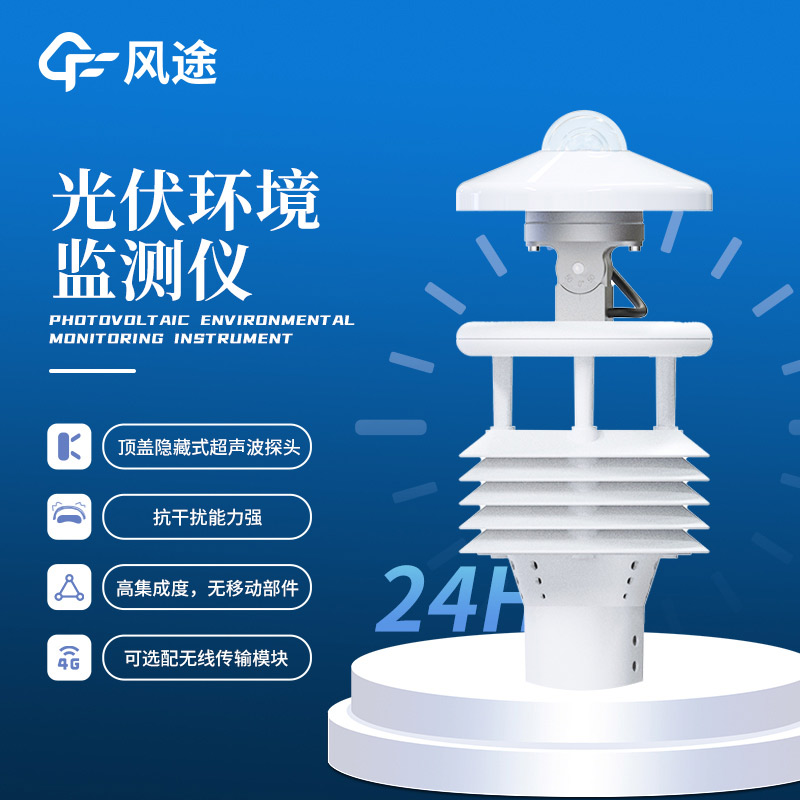

FT-WQX8B Photovoltaic Weather Station: Precision Monitoring for Solar Energy Systems

The FT-WQX8B Photovoltaic Weather Station is a professional environmental monitoring device developed and manufactured by Fengtu Technology, a company specializing in the R&D of micro weather stations and meteorological environment solutions. With a complete industrial chain and technical team, the company focuses on providing innovative environmental monitoring products. This device is specifically customized for photovoltaic (PV) power generation systems, enabling real-time monitoring and collection of various environmental parameters that affect the performance of PV power plants.

In the field of PV power generation, environmental conditions directly impact power generation efficiency and equipment operation. Therefore, accurate environmental monitoring is crucial for the operation and maintenance of PV power plants. The FT-WQX8B Eight-Element Micro Weather Station innovatively integrates multiple sensors into a highly precise structure, enabling 24/7 continuous monitoring of outdoor meteorological parameters. It outputs all eight parameters at once via a digital communication interface, providing data support for refined management and performance optimization of PV power plants.

Technical Advantages of the FT-WQX8B PV Environmental Monitoring Station:

01 Highly Integrated Design

The device integrates eight key environmental parameters—wind speed, wind direction, temperature, humidity, atmospheric pressure, thermopile total radiation, daily cumulative total radiation, and module temperature (backsheet temperature)—into a single highly integrated structure. This all-in-one design overcomes the limitations of traditional distributed monitoring systems, allowing users to obtain comprehensive environmental data without deploying multiple independent sensors. This significantly improves data acquisition efficiency and system integration.

02 Ultrasonic Wind Measurement Technology

The device employs ultrasonic measurement principles, transmitting continuously frequency-modulated ultrasonic signals and measuring relative phase to detect wind speed and direction. This technology eliminates the need for high-precision timers and effectively avoids measurement inaccuracies caused by sensor activation delays, demodulation circuit delays, and temperature variations. Moreover, the device features a hidden ultrasonic probe design in the top cover, effectively preventing interference from rain, snow accumulation, and natural wind obstruction, ensuring continuous and accurate monitoring data.

03 Stability and Durability

The monitoring station is housed in an ASA engineering plastic enclosure, which offers excellent weather resistance and UV protection, preventing discoloration or aging even under long-term exposure to harsh outdoor environments. Internally, the device integrates a watchdog circuit and an automatic reset function, providing strong anti-interference capabilities and ensuring stable system operation. The highly integrated design has no moving parts, resulting in zero wear and maintenance-free operation. No on-site calibration is required, significantly reducing long-term maintenance costs and efforts.

04 Flexible Installation and Data Transmission

The device adopts a modular structural design, with the thermopile total radiation sensor integrated into the top of the micro weather station and adjustable within a 0–50° range. The backsheet temperature sensor is connected in parallel to the micro weather station via a 6-port expansion box, greatly facilitating on-site installation and debugging for customers.

The standard output signal of the product is an RS485 communication interface, supporting the MODBUS protocol. It also offers optional interfaces such as RS232, USB, and Ethernet, supporting real-time data reading. Users can also opt for a wireless transmission module with a minimum transmission interval of one minute, meeting the data transmission needs of various application scenarios.

In summary, the FT-WQX8B PV Environmental Monitoring Station is a reliable and efficient environmental monitoring weather station that effectively helps power plants enhance operational efficiency and power generation performance.
