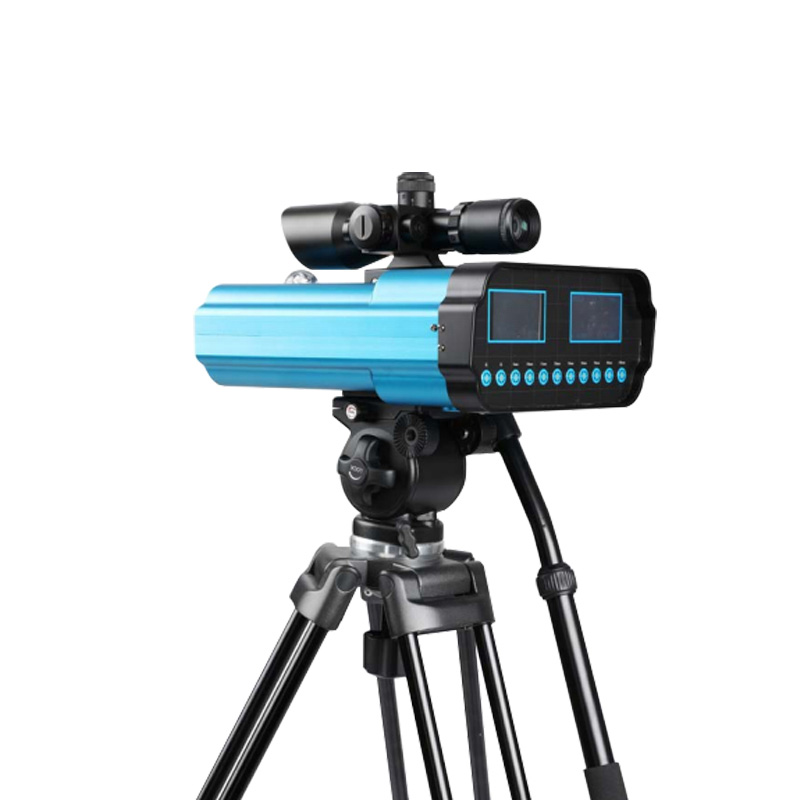

Displacement monitor is a portable device for millimeter-level precision non-contact monitoring of building displacement

Displacement monitor is a portable device based on harmless laser ranging technology. It can non-contactly and with high precision detect minute movements of building structures caused by earthquakes, explosions, etc., achieving millimeter-level displacement measurement. It is suitable for structural safety monitoring and intelligent early warning in fields such as construction, industry, and wind power.

The core working principle of Displacement monitor is to use laser ranging technology to achieve high-precision displacement change sensing. The device emits a harmless laser beam towards the surface of the object being measured. By receiving the light signal reflected back from the surface and calculating the time difference or phase change of the laser's round trip, it accurately calculates the absolute distance from the instrument to the object's surface. When the monitored building structure (such as walls, columns, beams, or the ground) moves, this distance value changes accordingly. The system records these distance data sequences through continuous or timed measurements, and then analyzes the displacement, displacement rate, and trend of the structure in a specific direction.

The technological advantages of this device lie in its non-contact nature, high precision, and good environmental adaptability. As an optical measurement method, it operates without the need for a target on the object being measured, achieving true non-contact measurement without interfering with or burdening the structure itself. Its measurement accuracy can reach millimeter or even sub-millimeter levels, enabling it to sensitively capture minute structural deformations. The equipment is typically designed to be portable or compact, with a small size and flexible installation and deployment. The built-in data processing unit can filter and compensate for raw measurements to reduce interference from ambient light, temperature fluctuations, etc., ensuring the stability of long-term monitoring data. Simultaneously, the equipment supports setting displacement thresholds to achieve automatic alarms when limits are exceeded.

Displacement monitor has significant safety monitoring value in multiple fields. In the field of building structural safety, it is used to monitor the displacement and deformation of structures such as dilapidated buildings, historical buildings, bridges, and tunnels caused by earthquakes, explosions, surrounding construction, or uneven foundation settlement, providing quantitative evidence for safety assessment and early warning. In the industrial field, it can be used to monitor foundation settlement of large equipment, tilting of tall structures (such as chimneys and iron towers), and micro-vibrations of production line equipment. In the wind power field, it is commonly used to monitor the swaying of wind turbine towers and foundation settlement. The continuous and accurate displacement data it provides is a key technical means to achieve structural health diagnosis, preventive maintenance and safety management.
