Application of Life Detector Device in Pipeline Inspection and Confined Space Rescue

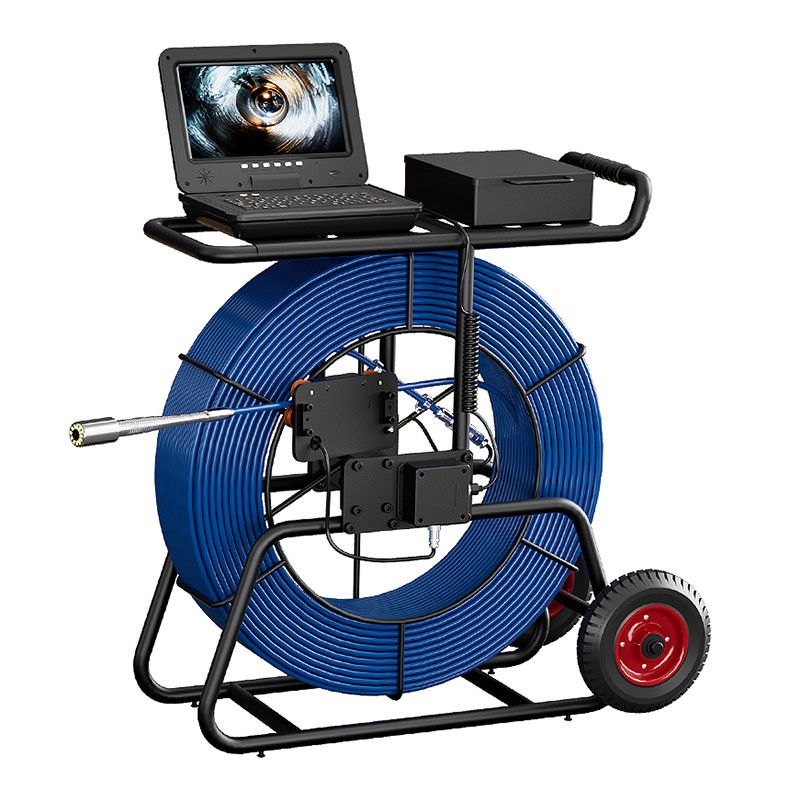

Life Detector Device is equipped with a 23mm diameter sapphire lens camera and a 10-inch high-definition display, supporting video recording, photography, and electronic zoom. The equipment is suitable for inspection of underground pipelines, air conditioning pipelines, oil and gas pipelines, and rescue operations in confined spaces. It is waterproof to a depth of 10 meters and can detect objects up to 200 meters deep.

Life Detector Device is an inspection device integrating high-definition video recording and data recording functions, widely used for internal inspection of various pipelines such as underground pipelines, air conditioning pipelines, and oil and gas pipelines. The device features a 23mm diameter self-balancing 512Hz camera. The camera is made of stainless steel with a sapphire lens and is waterproof to a depth of 10 meters. The sapphire lens has high hardness and wear resistance, effectively protecting the lens from scratches when in contact with rough surfaces such as sand and metal debris on the inner wall of the pipeline. The camera has a 105-degree field of view and, with a white light illumination source, can obtain clear video images even in low-light environments inside pipelines. The 9mm diameter cable supports lengths from 50m to 200m, meeting the detection needs of pipes at different depths.

In pipe dredging operations, the [device name] can serve as an auxiliary detection tool for pipe dredging machines, helping operators to understand the blockage status, corrosion condition, and location of foreign objects inside the pipe. By inserting the camera into the pipe, a 10-inch display shows real-time images of the pipe's inner wall; the 1024*600 IPS resolution screen provides detailed image quality. The device supports video recording, audio recording, photo taking, and electronic zoom functions, allowing operators to record and play back images via buttons. The electronic meter function accurately records the depth of the camera's penetration into the pipe, helping to pinpoint the exact location of blockages or damage points. The TF card supports up to 128GB of storage, with a 16GB TF card included as standard, meeting the data storage needs for long-term testing.

The [device name] also plays a crucial role in rescue operations in confined spaces. This equipment can be applied to underground exploration, underwater riverbed research, and underground television monitoring. Its 23mm camera diameter allows it to enter narrow pipes or gaps, enabling it to complete exploration tasks in areas inaccessible to personnel. The display supports Chinese, English, Russian, French, and German menus, making it usable in different countries and regions. The device has a built-in 4500AH lithium battery, providing 6 to 8 hours of continuous operation on a single charge. It operates within a temperature range of -20 to 60 degrees Celsius and a storage temperature range of -30 to 80 degrees Celsius, adapting to various environmental conditions. Video recordings are in AVI format, and photos are in JPG format, facilitating later viewing and analysis on a computer.
