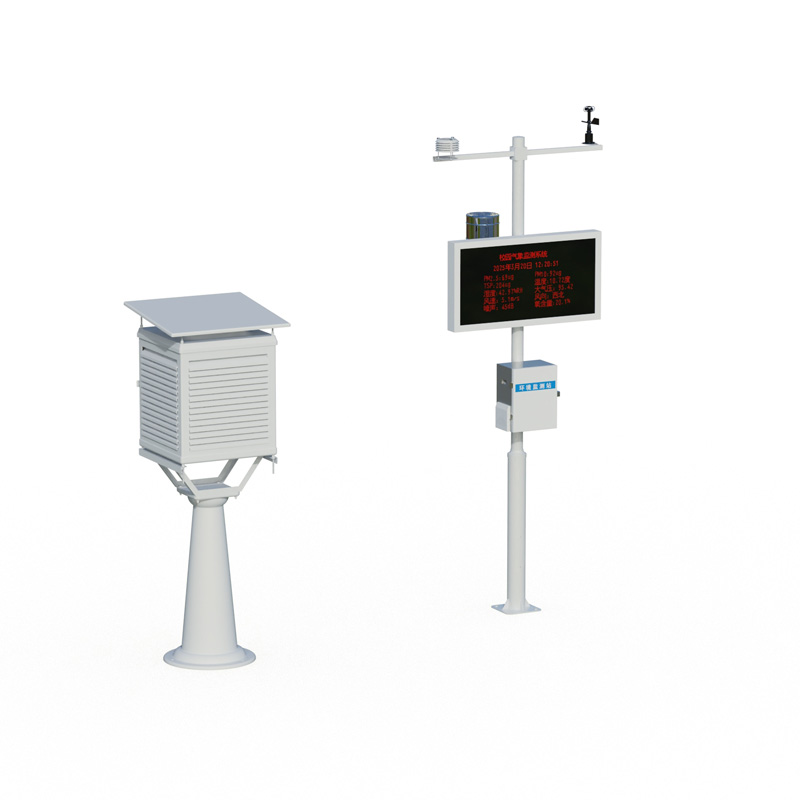

Outdoor Weather Station
Model：FT-XQ2
Brand：tianyi
Outdoor Weather Station is a simple, accurate and affordable campus weather station with an easy to read display showing your outdoor temperature and humidity.
Get a Free Quote- Product details
- Related products
- Related articles
1.Introduction to Outdoor Weather Station
Outdoor Weather Station is a simple, accurate and affordable campus weather station with an easy to read display showing your outdoor temperature and humidity.XQ2 Outdoor Weather Station is a highly integrated, low-power, fast installation and easy to use in teaching.
2.Features of Outdoor Weather Station
1.Transmission method: GPRS, optionally equipped with wired transmission;
2.Power supply method: mains;
3.Display method: 1 meter * 0.5 meter LED screen;
4.Hardware composition: sensor, pole bracket, equipment box, LED screen, collector, cloud platform, fiberglass blind box (including dry and wet bulb thermometer)
3.Outdoor Weather Station Technical Parameters
1.Sensor parameters
| name | Measurement range | Resolution | Accuracy |
| Ambient temperature | -40~+80℃ | 0.01℃ | ±0.3℃ (25℃) |
| Relative humidity | 0～100%RH | 0.01%RH | ±3%RH (20%~80%) |
| Light intensity | 0-157286LUX | 1Lux | ＜±3% |
| Atmospheric pressure | 300-1100hpa | 0.1hPa | ±0.25% |
| Dew point temperature | 0~+70℃ | 0.1℃ | ±1℃ |
| Soil temperature | -30~+70℃ | 0.01℃ | ±0.3 (-10~70℃) |
| Soil moisture | 0～100% | 0.1% | ±3% |
| Soil Salt | 0~20000us/cm | 1us/cm | ±3 (0~10000us/cm) ±5% (full range) |
| Soil PH | 0-14PH | 0.01 | ±0.1PH |
| wind direction | 0-360 degrees | 0.1 degree | ±1 degree |
| Wind speed | 0-60m/s | 0.01m/s | ±0.2m/s |
| Average wind speed☆ | 0-60m/s | 0.01m/s | ±0.2m/s |
| rainfall | ≦4mm/min | 0.2mm | ≤±2% |
| Ultraviolet radiation | 0～500W/㎡ | 0.01W/㎡ | ≤±3% |
| Sunshine hours | 0～6500h | 0.1h | ＜0.2h |
| Total photoelectric radiation | 0-2000W/m2 | 1W/m2 | ＜±3% |
| Photosynthetic effective radiation | 0-2000W/m2 | 1W/m2 | ≤±5% |
| PM2.5 | 0-1000ug/m³ | 1ug/m³ | ±10% (<500 micrograms) |
| PM10 | 0-1000ug/m³ | 1ug/m³ | ±10% (<500 micrograms) |
| Carbon monoxide | 0-1000ppm | 1PPM | ±2PPM |
| Sulfur dioxide | 0-20PPM | 0.1PPM | ±1PPM |
| Nitrogen dioxide | 0-20PPM | 0.1PPM | ±1PPM |
| ozone | 0-20PPM | 0.1PPM | ±1PPM |
| Negative oxygen ions | 0~100,000 units/cm3 | 1/cm3 | Reading ±10%; ion mobility ≤±20% |
| Oxygen content | 0~25%Vol | 0.1% | ±3%FS |
| carbon dioxide | 400-5000ppm | 1PPM | ±(50ppm+5% reading value) |
| Evaporation | 0-190mm | 0.01mm | ±1% |
2.Data storage: no less than 500,000 pieces
3.Power consumption: 202W
4.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification
5.The manufacturer has a computer software registration certificate
6.The manufacturer is a 3A-level credit enterprise
4.Introduction to Outdoor Weather Station Cloud Platform
1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.
2.Support multiple accounts and multiple devices to log in
3.Support real-time data display and historical data display dashboard
4.Cloud server and cloud data storage are stable and reliable, easy to scale, and load balancing.
5.Support SMS alarm and threshold settings
6.Support map display and viewing device information.
7.Support data curve analysis
8.Support data export table form
9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.
10.Support data post-processing function
11.Support external running of javascript scripts
