location：Home>Products>Meteorological station>Environmental Monitoring Meteorological Station>Meteorological and Soil Environmental Monitoring Station

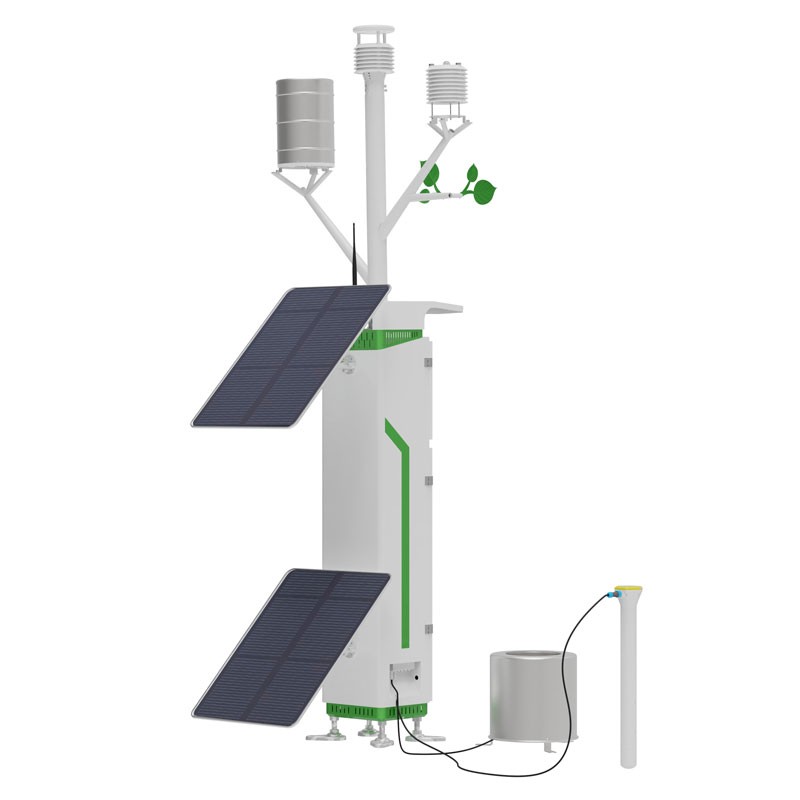

Meteorological and Soil Environmental Monitoring Station
Model：FT-QH15
Brand：tianyi
Meteorological and Soil Environmental Monitoring Station can monitor key meteorological elements such as air temperature and humidity, soil temperature and humidity, and light intensity.
Get a Free Quote- Product details
- Related products
- Related articles
1、Meteorological and Soil Environmental Monitoring Station Product Introduction
Meteorological and Soil Environmental Monitoring Station can monitor key meteorological elements such as air temperature and humidity, soil temperature and humidity, and light intensity.Meteorological and Soil Environmental Monitoring Station is a highly integrated environmental monitoring system for meteorological and soil data. The system integrates data acquisition, storage, and transmission, and is developed and manufactured according to international WMO meteorological standards. It can simultaneously monitor ultrasonic wind speed, wind direction, air temperature, air humidity, atmospheric pressure, rainfall, sunlight, carbon dioxide, PM2.5, PM10, noise, three-layer pipe soil temperature, soil moisture, soil conductivity, and soil evaporation.
Meteorological and Soil Environmental Monitoring Station consists of three parts: monitoring sensors, a data acquisition unit, and an environmental monitoring cloud server. The system adopts a modular design, allowing for flexible addition or removal of modules and sensors according to user needs. The system has a built-in large-capacity FLASH storage chip that can store more than one year's worth of meteorological data. It is equipped with a Chinese character LCD screen for real-time observation of current meteorological information. When connected to a computer, data can be viewed item by item and exported to Excel for editing.
2、Meteorological and Soil Environmental Monitoring Station Product Advantages
Advanced technology, high measurement accuracy
Large data capacity, long storage time
Long telemetry distance, stable communication
User-friendly interface, easy operation
High reliability, low maintenance cost
3、Meteorological and Soil Environmental Monitoring Station Product Positioning
Meteorological and Soil Environmental Monitoring Station supports wireless transmission, requires no debugging, can be quickly deployed, and is widely used in the following fields:
Meteorological, agricultural, forestry, and marine environmental monitoring
Airports, ports, and transportation
Geological exploration and university research
4、Meteorological and Soil Environmental Monitoring Station Features and Functions
Low-power data logger: Power consumption less than 50mA
GPRS connectivity: Supports 4G across three networks
Supports expanded sensors
7-inch LCD screen display
Supports data storage
Expandable USB flash drive data export
Supports Modbus-RTU-RS485 sensor expansion
Solar charging management: MPPT automatic power point tracking
Equipped with 100W/40Ah solar power supply
Supports IoT data display, storage, and analysis platform
Platform supports multiple protocol data forwarding, including HJ-212, TCP short connections, and HTTP.
5、Meteorological and Soil Environmental Monitoring Station Technical parameters
| Sensor | Measurement Range | Resolution | Accuracy |
| Meteorological sensors | |||
| Temperature | -40~80℃ | 0.01℃ | ±0.3℃ (25℃) |
| Humidity | 0~100%RH | 0.01%RH | ±3%RH (20%~80%) |
| Atmospheric pressure | 30-110Kpa | 0.01Kpa | ±0.25% |
| Wind speed | 0~60m/s | 0.01m/s | ±0.1m/s+0.01V |
| Wind direction | 0~360° | 1° | ±2° |
| Rainfall | Maximum 8mm/min | 0.2mm | ≤±2% |
| Lighting | 0~157286Lux | 1Lux | ±3% |
| Noise | 30~120dB | 0.1dB | ±1.5dB |
| PM2.5 | 0~1000μg/m³ | 1μg/m³ | ±10% (<500 micrograms) |
| PM10 | 0~1000μg/m³ | 1μg/m³ | ±10% (<500 micrograms) |
| CO2 | 400~5000ppm | 1ppm | ±(50ppm+5% of reading) |
| Soil sensors | |||
| Soil temperature | -30~70℃ | 0.01℃ | ±0.3 (-10~50℃) |
| Soil moisture | 0~100% | 0.01% | ±3% |
| Conductivity | 0~20000μs/cm | 1μs/cm | ±3% (15°C, 0~10000 us/cm) ±5% (full scale) |
| Soil evaporation | 0~40000000mm | 0.01mm | ≤±2% |
