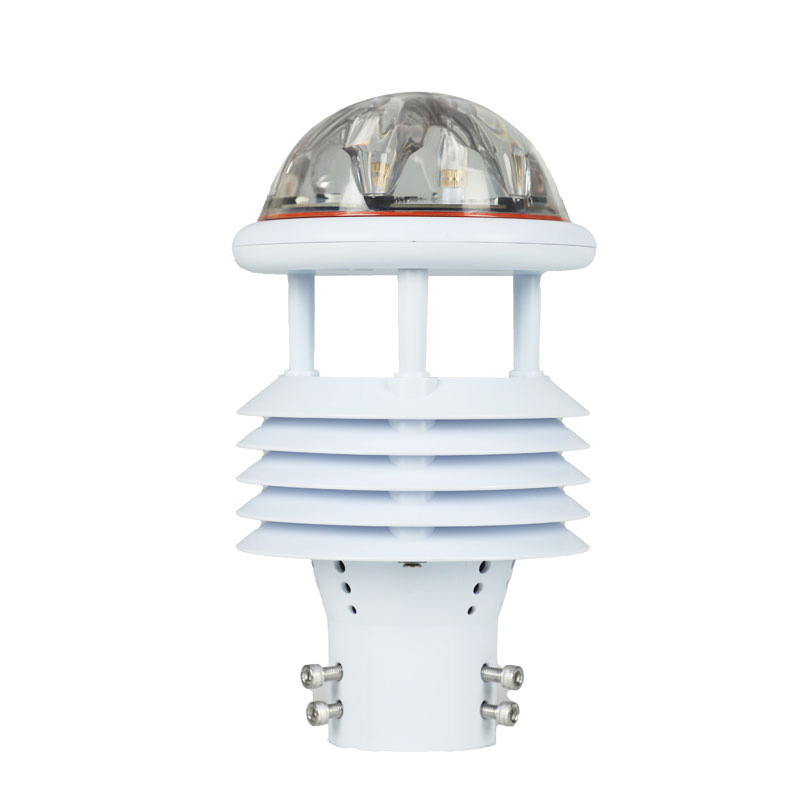

micro weather sensor

1.Introduction to micro weather sensor products

micro weather sensor provides various real-time weather reports and is not only compact but also has the ability to report 6 environmental parameters.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

The principle of micro weather sensor is to transmit a continuous frequency conversion ultrasonic signal, and to measure the relative phase to detect the wind speed and direction.Compared with traditional ultrasonic wind speed and directional instruments, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

Micro weather sensor innovatively implements the six meteorological parameters (ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, optical rainfall) through a high-integration structure, which can realize 24-hour continuous online monitoring of outdoor meteorological parameters through digital The quantity communication interface outputs six parameters to the user at one time.

2.Micro weather sensor product features

1.The hidden ultrasonic probe on the top cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Integrated six elements of wind speed, wind direction, temperature, humidity, atmospheric pressure, and optical rainfall (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Use ASA engineering plastics for outdoor applications without changing color all year round

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional wireless transmission module, minimum transmission interval of 1 minute

11.The probe is designed with snap-on type, which solves the problem of inaccurate loose transportation and installation process☆

3.Micro weather sensor technical parameters

1.Wind speed: measurement principle ultrasonic wave, 0~60m/s (±0.1m/s) resolution 0.01m/s; (Invention patent, Patent No.ZL 2021 1 0237536.5)

2.Wind direction: measurement principle ultrasonic wave, 0~360° (±2°); resolution: 1°; (Invention patent, patent number ZL 2021 1 0237536.5)

3.Air temperature: measurement principle diode junction voltage method, -40-60℃ (±0.3℃), resolution 0.01℃; (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: measurement principle capacitive type, 0-100%RH (±3%RH), resolution: 0.1%RH; (Calibration certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: measurement principle piezoresistive type, 300-1100hpa (±0.25%), resolution 0.1hpa; (Calibration certificate of Beijing Meteorological Bureau)

6.Optical rainfall: 0-4mm/min (≤±4%) (Invention patent, Patent number ZL 2022 1 1306149.3)

7.Power: 0.84W

8.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

9.The manufacturer has a computer software registration certificate☆

10.The manufacturer is a 3A-level credit enterprise☆

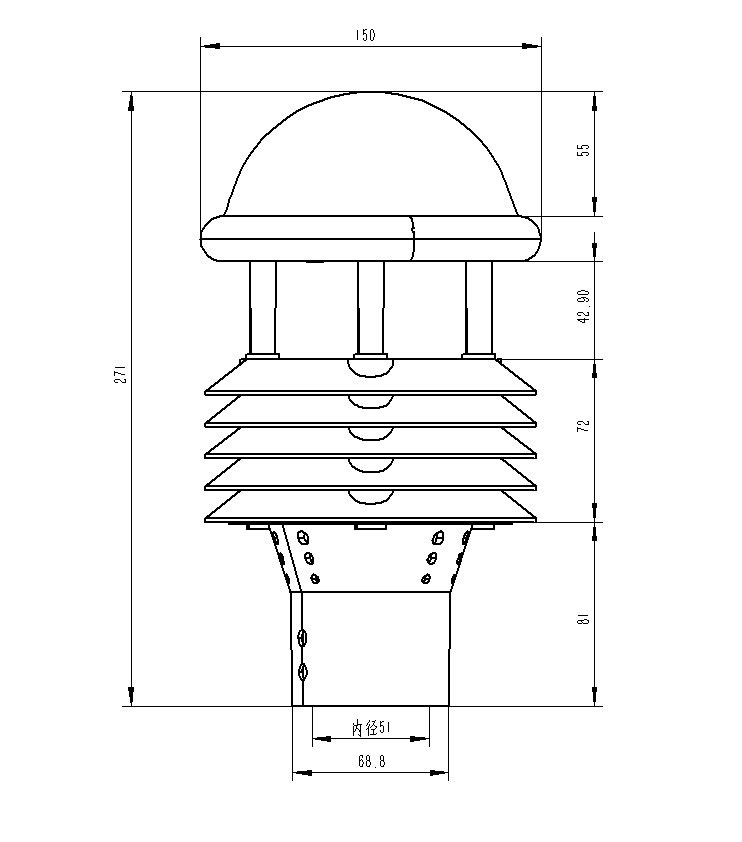

4.Micro weather sensor product size diagram

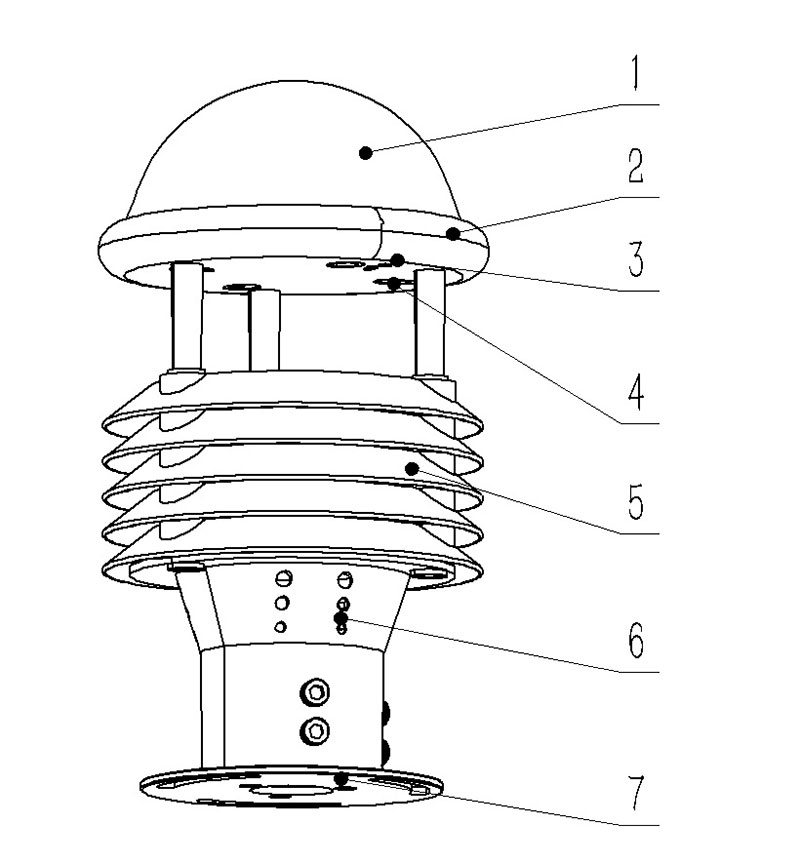

5.Micro weather sensor product structure diagram

1.Optical rain sensor

2.Control circuit

3.Pointing to the north arrow

4.Ultrasonic wind speed and direction

5.Louver box

6.Temperature, humidity, and air pressure monitoring location

7.Bottom fixing flange

6.Micro weather sensor product wiring definition
