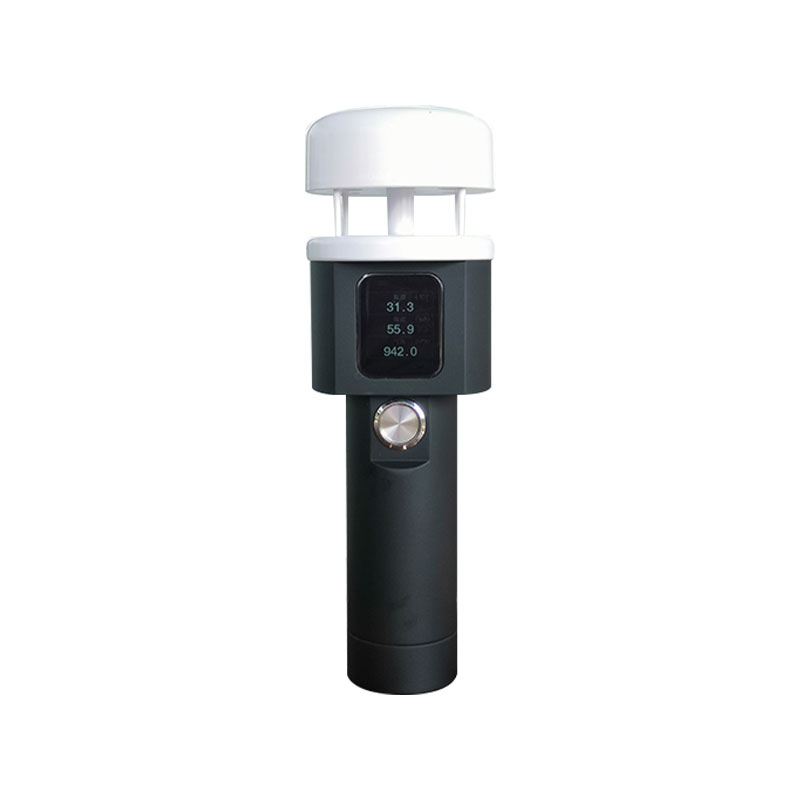

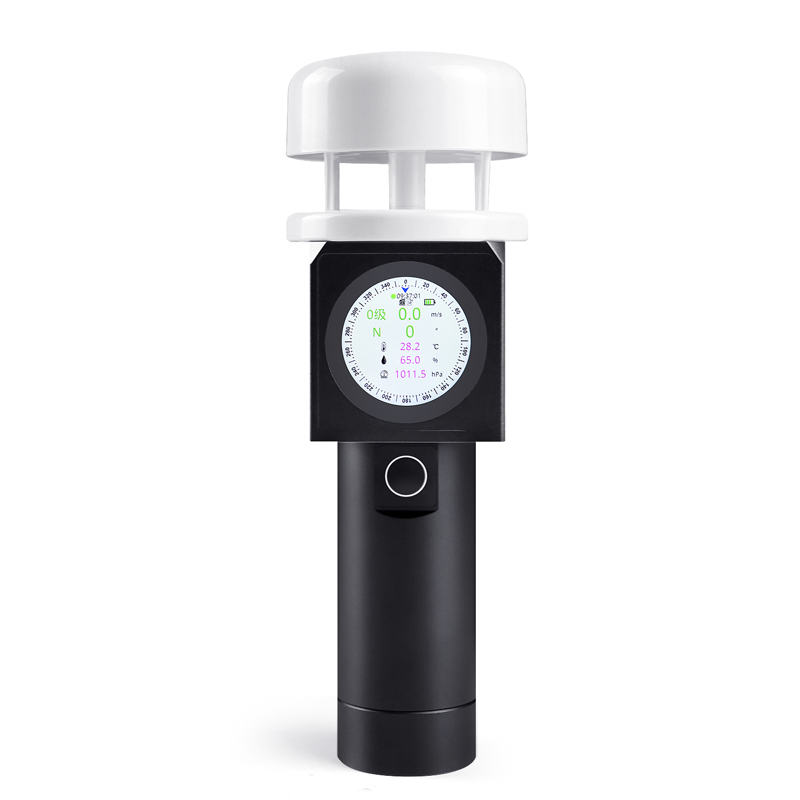

Handheld Weather meter

1.Introduction to Handheld Weather meter

Handheld Weather Meter is a highly accurate portable weather device that measures wind speed, wind direction, temperature, humidity, pressure and more.Handheld Weather meter uses ultrasound to travel time difference in air to measure wind speed and direction

Can monitor air temperature, humidity, atmospheric pressure, wind speed, wind direction, altitude in real time (optional)

The weather station comes with a display screen that can display detection data in real time.It has light weight (engineered plastic ABS housing), rugged and durable features, no moving parts, and no maintenance and on-site calibration are required.The specially designed handle is convenient for users to grip with one hand and weighs only 0.85kg.The built-in Bluetooth module can use the manufacturer's dedicated APP mobile phone software to receive detection data in real time on the mobile phone; the internal storage module of the instrument can store monitoring data for up to 365 days, which is especially suitable for off-site inspection.

2.Handheld Weather meter product features

No moving parts, zero wear

Maintenance-free, long service life

Ultrasonic probe reflective type, more compact structure

The internal power is powered by a removable standard 18650 rechargeable lithium battery

Optional temperature, humidity and atmospheric pressure sensors

Built-in Bluetooth transmission module

3.Typical applications of Handheld Weather meter

Handheld meteorological multi-factor detection

Mobile inspection

Electricity Safety Inspection

Ship, dock and navigation inspection

Urban environment monitoring

4.Handheld Weather meter parameters

Wind speed: measuring range 0-40m/s, resolution 0.1m/s, measurement accuracy ±5%

Wind direction: measuring range 0-359° without blind spots, resolution 1°, measurement accuracy ±3°

Measurement principle: ultrasonic time difference method

Air temperature: measurement range -40℃-+80℃, resolution 0.1℃, measurement accuracy 1℃

Air humidity: measurement range 0-100%, resolution 0.1, measurement accuracy 4%

Measurement principle: Capacitor polymer for energy gap temperature measurement element

Atmospheric pressure: measuring range 300-1100hPa, resolution 0.1hPa, measurement accuracy ±2 hPa

Altitude: Measuring range -500 to 9000 meters, resolution 1 meter, measurement accuracy ±6% (optional)

Measuring principle Capacitive MEMS sensor

Data output: Bluetooth Bluetooth, output specification BLE4.0

Internal power supply: 18650 rechargeable lithium battery (one battery is equipped with a standard factory, up to three batteries)

Charging interface: external charging adapter for lithium battery

Working duration: under full power (1 18650 lithium battery), can work continuously for 24 hours

Dimensions: Ø82*249mm
