Small automatic water quality monitoring system

1.Small automatic water quality monitoring system product introduction

Small automatic water quality monitoring systemWith the help of water quality sensors and water quality monitoring host, a water quality monitoring system can be easily constructed.LSZ03 Small automatic water quality monitoring system takes water quality sensors (water temperature, conductivity, PH) as the core.By monitoring and analyzing various water quality parameters, the collected data is transmitted to the platform side, real-time data remote viewing and remote management of equipment, and at the same time, effective over-limit alarm and intelligent processing of water quality changes.It can also express the comprehensive index of water quality based on the correlation combination between real-time water quality parameters, providing customers with a large amount of objective, detailed and effective data, which is of practical significance to solving water quality pollution problems.

At present, the LSZ03 water quality monitoring station is widely used in aquaculture, sewage treatment, reservoirs, rivers and other places.

2.Small automatic water quality monitoring system product features

1.Low-power collector: static power consumption is less than 1mA

2.Standard GPRS networking, support extended Bluetooth, and wired transmission

3.Support modbus485 sensor expansion

4.Solar charging management MPPT automatic power point tracking

5.1.5m carbon steel bracket

6.Send SMS alarm, send SMS to the specified mobile phone after exceeding the limit

7.Stainless steel protective box, corrosion-resistant and oxidation-resistant, waterproof grade IP66

8.No additional processes such as wiring, construction of stations, dispensing agents, and post-maintenance of personnel are required.Compared with the national standard station for water quality monitoring, the observation data is more convenient to use and install, and the observation data is more intuitive.

9.The system can integrate integrated meteorological environment monitoring data

3.Small automatic water quality monitoring system composition

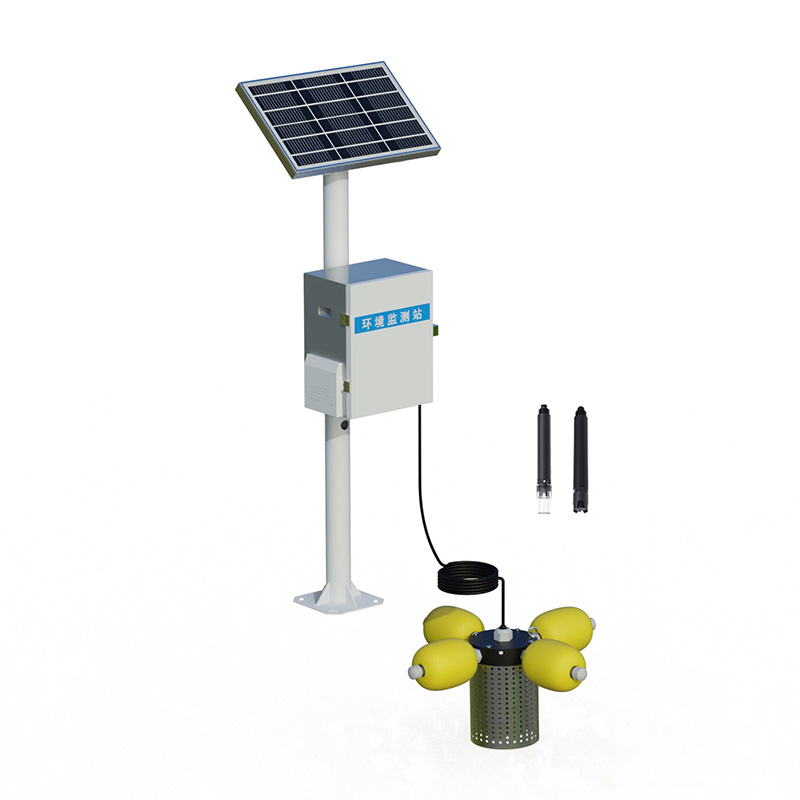

The vertical pole-type online monitoring system is mainly composed of basic support (including vertical pole, floor cage, Stainless steel anti-corrosion and corrosion-resistant protective box), power supply system, monitoring host, water quality sensor, and cloud platform.

4.Small automatic water quality monitoring system technical parameters

5.Introduction to Small automatic water quality monitoring system cloud platform

1.CS architecture software platform, supports direct observation of mobile phones and PC browsers without additional software installation.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server and cloud data storage are stable and reliable, easy to expand, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
