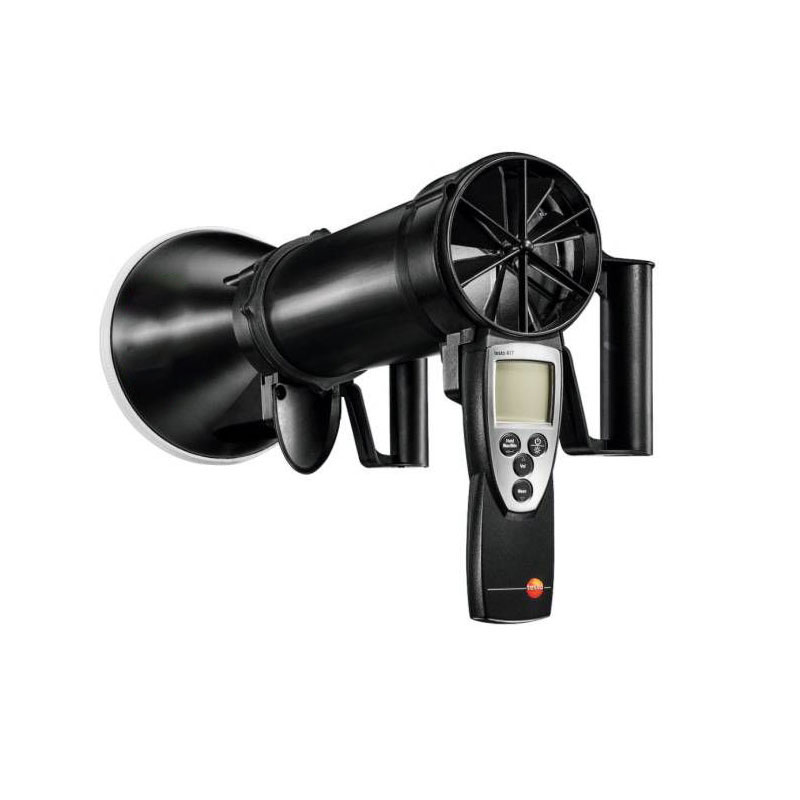

Air Flow Capture Hood
Model：testo417
Brand：tianyi
Air Flow Capture Hood allows for easy, one-person operation for air balancing and other HVAC applications, making airflow balancing easier.
Get a Free Quote- Product details
- Related products
- Related articles
1.Introduction to Air Flow Capture Hood Products
Air Flow Capture Hood allows for easy, one-person operation for air balancing and other HVAC applications, making airflow balancing easier.Air Flow Capture Hood is equipped with an integrated impeller wind speed/temperature probe with a diameter of 100mm, measuring wind speed, air volume and temperature.Directly display volume flow.Just enter the cross-sectional area of the pipeline to accurately calculate the flow rate.It can quickly switch to the current temperature reading.In addition, the direction of the airflow can also be displayed.The instrument has time period and multi-point average calculation function to calculate the average value of air volume, wind speed and temperature.Users can choose air volume hoods to help better detect air volume at the grille air outlet and air valve.The instrument can display maximum/minimum values.Use the hold key to hold the current reading.
2.Air Flow Capture Hood product composition
Air Flow Capture Hood with impeller probe with 100 mm diameter, battery and factory report.
Air Flow Capture Hood auxiliary air duct
Round air outlet (200×200 mm)
Square air outlet (330×330 mm)
3.Technical parameters of Air Flow Capture Hood
| NTC | |
| Measurement range | 0~+50°C |
| Measurement accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Impeller wind speed | |
| Measurement range | +0.3~+20 m/s |
| Measurement accuracy | ±(0.1m/s+1.5% measured value) |
| Resolution | 0.01m/s |
| Air volume | |
| Measurement range | 0~+99999m³/h |
| 0~+440m³/h (testo 417 in combination with funnelset (0563 4170)) | |
| 0.1~+200m³/h ,Preferred 0,1to100m³/h (testo 417 in combination with funnel & flowstraightener (0554 4172) | |
| Resolution | 0.1m³/h (0~+99.9m³/h) |
| 1m³/h (+100~+99999m³/h) | |
| Technical Indicators | |
| weight | 230g |
| size | 277x105x45 mm |
| Operating temperature | 0~+50°C |
| shell | ABS |
| Battery Type | 9 V battery |
| Battery usage time | 50 hours |
| Storage temperature | -40~+70°C |
