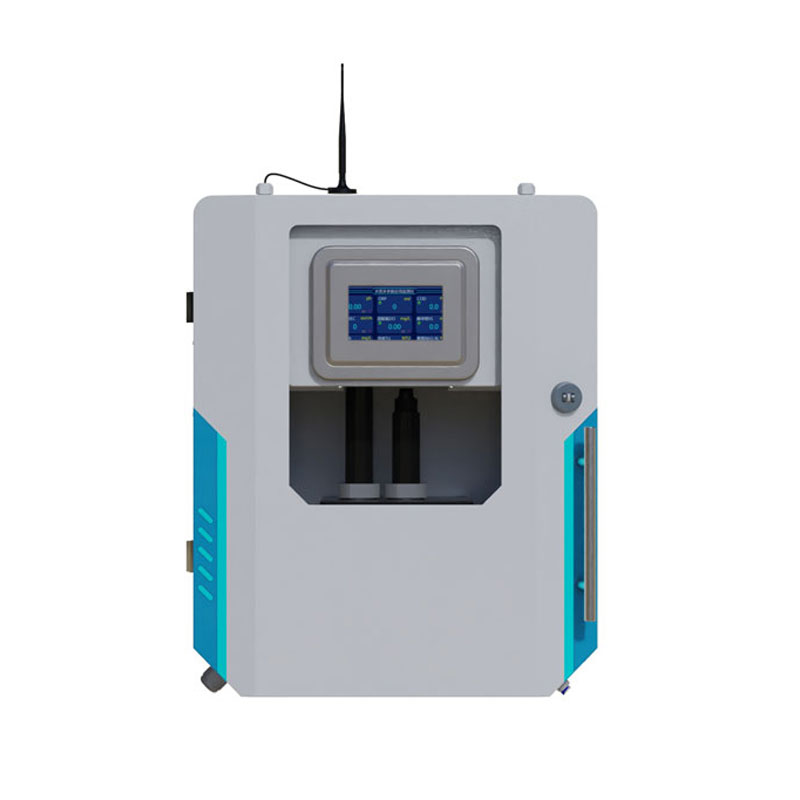

Water quality monitoring equipment for water treatment plants Online Monitoring of Residual Chlorine, pH, Turbidity, and Other Key Water Quality Parameters

Water quality monitoring equipment for water treatment plants is an integrated system for online monitoring of key parameters such as residual chlorine, pH, water temperature, turbidity, and conductivity. It provides a basis for multi-dimensional testing of source water, treated water, and network water, and is widely used in full-process water quality safety management from water plants to end-users.

Water quality monitoring equipment for water treatment plants is an online analysis system used for continuous and automatic measurement of key water quality parameters in water supply systems. Its core function is to replace traditional manual timed sampling and laboratory analysis, enabling real-time, continuous monitoring of water quality conditions and providing immediate data support for drinking water safety management.

The system typically monitors five basic and crucial parameters: residual chlorine, pH value, water temperature, turbidity, and conductivity. Residual chlorine concentration is a key indicator of the effectiveness of drinking water disinfection and the continuous sterilization capacity of the pipe network, ensuring microbiological safety. The pH value affects the corrosiveness and taste of the water, as well as the effectiveness of disinfectants. Water temperature is a fundamental variable affecting the efficiency of water treatment processes and bacterial regrowth in the pipe network. Turbidity directly reflects the content of suspended particles in the water and is an important basis for judging sensory characteristics and filtration efficiency. Conductivity indirectly characterizes the total concentration of dissolved ions in the water, used to monitor changes in overall water purity. The combined monitoring of these parameters forms the basic framework for assessing the safety and stability of drinking water quality.

From a technical implementation perspective, the device consists of a sensor unit, a data acquisition and transmission unit, and a monitoring software platform. The sensor part is directly immersed in or flows through the water being measured, using electrochemical, optical, and other principles for measurement. For example, residual chlorine measurement usually uses the electrode method, and turbidity measurement often uses the light scattering method. The sensor converts physical or chemical signals into standard electrical signals. The data collector is responsible for collecting signals from each sensor, performing analog-to-digital conversion, calculation, and storage, and uploading the data to the monitoring center via wired or wireless networks. The monitoring software platform is responsible for data display, historical trend analysis, report generation, and can automatically issue alarms when parameters exceed limits.

Its application spans the entire process of drinking water production and supply. At the water source, monitoring equipment is used to warn of sudden changes in raw water quality, providing pre-emptive information for water plant process adjustments. Within the water treatment plant, real-time monitoring is conducted on the effluent from sedimentation tanks, filtered water, and the final treated water to ensure that each process stage meets standards and to strictly control the quality of the water leaving the plant. In the water distribution network, equipment is installed at key nodes to monitor water quality changes during long-distance transportation, assess disinfectant decay, and identify potential risks of secondary contamination. At secondary water supply facilities (such as community pump rooms and water tanks) and at the end-user supply points, monitoring data directly reflects the water quality reaching consumers, ensuring safety for the "last mile." Furthermore, this system is also suitable for applications with strict water quality requirements, such as indoor swimming pools, large-scale water purification equipment, and direct drinking water networks.

The core value of deploying this equipment lies in providing objective and continuous decision-making basis for strengthening drinking water safety management. Based on real-time monitoring data, water plant operators can promptly adjust process parameters such as chlorine dosage and coagulant dosage to achieve refined control. Network managers can optimize disinfection strategies based on residual chlorine distribution or locate network contamination events based on water quality anomalies. Regulatory authorities can achieve more efficient water quality supervision through remote data access. Long-term accumulated data helps analyze water quality change patterns, providing support for water plant upgrades and network maintenance plans.

In summary, Water quality monitoring equipment for water treatment plants is an indispensable component of modern smart water management systems. Through automated online monitoring technology, it connects discrete water quality testing points into a continuous monitoring network, achieving multi-dimensional, full-process water quality supervision from source to tap. The widespread application of this equipment significantly enhances the water supply system's ability to cope with water quality risks and is an important technical foundation for ensuring public drinking water safety and meeting increasingly stringent water quality standards.
