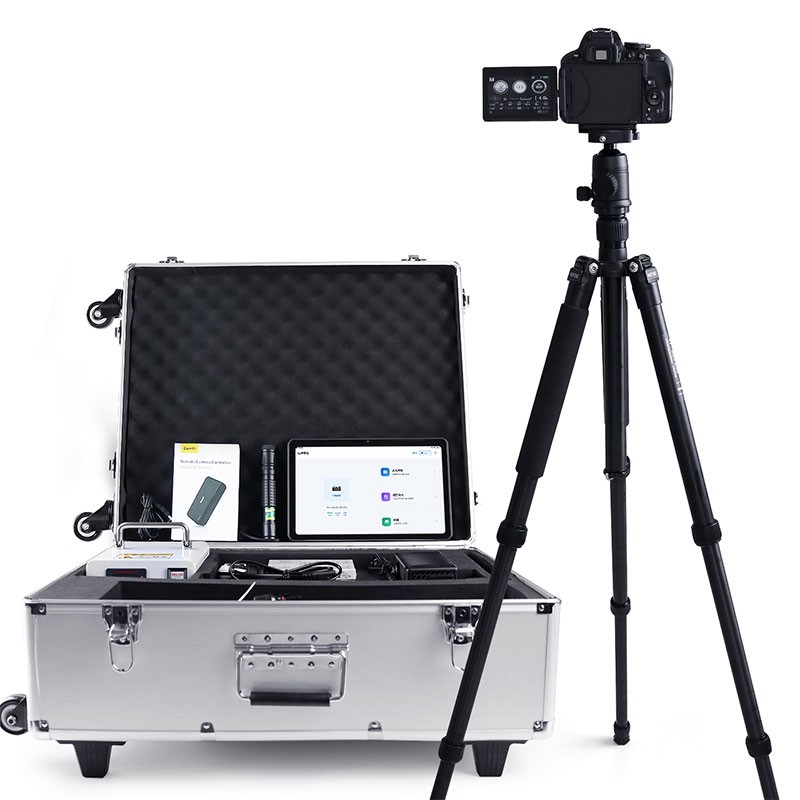

Solar Panel Tester
Model：FT-EL2+
Brand：tianyi
Solar Panel Tester is used to detect defects in solar panels and is designed to help maintenance professionals perform proper repair, maintenance, and maintenance on solar photovoltaic equipment.
Get a Free Quote- Product details
- Related products
- Related articles
Solar Panel Tester Product Introduction:
Solar Panel Tester is used to detect defects in solar panels and is designed to help maintenance professionals perform proper repair, maintenance, and maintenance on solar photovoltaic equipment.Solar Panel Tester is used for internal defect detection in photovoltaic solar panels, helping users better control production and installation risks through product quality inspection.
Solar Panel Tester is equipped with a 24.16MP infrared camera, effectively helping users detect DC quality problems inside photovoltaic panels. The device is equipped with an energy storage power supply and a Wi-Fi wireless control module, making on-site inspection more convenient and faster.
It comes with AI defect recognition software for fully automatic defect detection. The software identifies defects using AI or allows for manual standard defect identification, automatic defect classification, and one-click generation of inspection reports.
Solar Panel Tester Application scenarios:
Suitable for incoming inspection of photovoltaic power plant modules and testing of modules on the mounting bracket after installation, as well as module quality inspection in warehouses/laboratories/factories.
Solar Panel Tester Identifiable defect types:
| Hairline crack | Fragments | Fragments | Disengage | Black-hearted | cold solder joint |
| Process pollution | Low-efficiency film | Black border | Sintering | Overtime | Perforation |
Solar Panel Tester Product Features and Advantages:
1. 24.16MP high-definition infrared camera with EL for clearer image quality.
2. Full-time autofocus module for higher imaging accuracy.
3. Wireless control for device testing and rapid imaging.
4. Programmable constant current power supply for on-site testing, enabling 24/7 uninterrupted testing.
5. Fully automatic testing operation with AI-generated defect identification, automatic classification and saving, and one-click report generation.
6. Energy storage power supply on-site testing requires no preparation.
7. 1.85-meter tripod support for convenient multi-angle testing of components.
8. Wireless remote operation testing of the entire unit; one person can complete the entire project.
9. Rugged and durable trolley case for lightweight and safe transport.
Solar Panel Tester Application areas:
| Scene | Factory component, warehouse component, power station site component testing, |
| Test | Daytime: Outdoor anti-infrared dark room testing; indoor testing in a sunless environment Nighttime: Direct tripod testing, unaffected by artificial or moonlight |
| Object | Crystalline silicon modules, thin-film modules (customizable) |
| Quantity | Single-piece component imaging inspection |
Solar Panel Tester Specifications:
| Module | Configuration | Specifications |
| Camera module | Pixel | 24.16 megapixels |
| Resolution | 6000x4000 | |
| Chip | 23.5x15.6mm, CMOS sensor | |
| Accuracy | 1.0mm/pixel | |
| Detection speed | Adjustable 1-30s | |
| Low current testing | Can present clear crack imaging in 5A low current. | |
| Light shielding | Lighting, moonlight, starlight, indoor low-level sunlight, and sunlight below 100 lux have no effect on the test. | |
| Detection Area | 4000mm*2000mm | |
| Lens | 18-55mm infrared lens | |
| Focus mode | Full-time autofocus | |
| Battery | 1040mAh | |
| Memory card | 64GB | |
| Card reader | USB2.0 | |
| Power module | Capacity | 10.4AH |
| Battery cell | High-performance lithium batteries | |
| Output current | 5A | |
| Current accuracy | 0.1A | |
| Output voltage | 60V | |
| Voltage accuracy | 0.01V | |
| Load power | 100W to 600W; upper limit not exceeding 700W | |
| Detection count | 300-500 solar panels | |
| Control Panel | LED Digital Display Programmable Control Panel | |
| Function Settings | Wireless remote control power on and power off | |
| Power Saving Mode | Automatic power off after testing | |
| Steady-state module | Constant power supply output current and voltage are unaffected by changes in battery charge. | |
| Circuit Protection | Short-circuit protection, disconnection protection, reverse current protection, overheating protection, electrostatic protection, current-voltage adaptive matching for photovoltaic panels | |
| Power cable | 10cm AC 3-pin input cable | |
| DC line | 3m DC output cable, MC4 connector assembly | |
| Computer | Tablet | Lenovo Tablet 8+128G |
| Wi-Fi | 2.4G | 2.4GWi-Fi Wireless Control Module |
| Software | Detection APP | Wireless, fully automatic camera and power supply cooperation for inspection, AI defect recognition or manual annotation after shooting, automatic defect classification, one-click generation of inspection reports, etc. |
| Support system | Detection bracket | 1.85-meter aluminum alloy stand |
| Detect gimbal | Integrated bracket installation, 720-degree rotation | |
| Positioning module | Detection and Localization | Cross-laser locator, quickly locates the position of the rear component on the quick-locating bracket, which can improve detection efficiency by several times. |
| Usage Environment | Desert, plateau, rooftop, hill, hillside, factory, rooftop, snow, greenhouse, agrivoltaics, aquavoltaics, wind-solar hybrid, and various other environments | |
| Warranty and After-Sales Service | 1-year warranty, 24H response, 72H fault resolution, spare parts coordination | |
