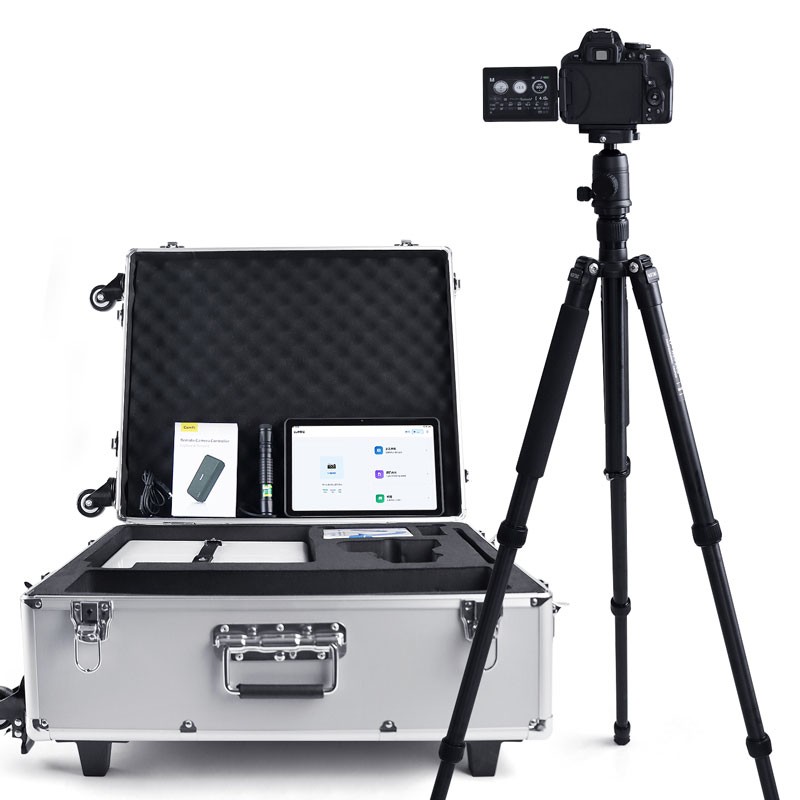

Test Equipment for Photovoltaic Module
Model：FT-EL3+
Brand：tianyi
Test Equipment for Photovoltaic Module is used to inspect compliant solar and photovoltaic modules and identify microscopic defects inside the modules.
Get a Free Quote- Product details
- Related products
- Related articles
Test Equipment for Photovoltaic Module Product Introduction:
Test Equipment for Photovoltaic Module is used to inspect compliant solar and photovoltaic modules and identify microscopic defects inside the modules.Test Equipment for Photovoltaic Module is used for internal defect detection in photovoltaic solar panels, helping users better control production and installation risks through product quality inspection.
Test Equipment for Photovoltaic Module is equipped with a 24.76 megapixel infrared camera, effectively helping users detect DC quality problems inside photovoltaic panels. The device is equipped with an energy storage power supply and a Wi-Fi wireless control module, making on-site inspection more convenient and faster.
Test Equipment for Photovoltaic Module Application Scenarios:
Suitable for incoming inspection of photovoltaic power plant modules and testing of modules on mounting structures after installation, as well as quality inspection of modules in warehouses/laboratories/factories. Equipped with AI defect recognition software, it enables fully automated defect detection, AI-generated defect identification, or manual standard defect identification, automatic defect classification, and one-click generation of inspection reports.
Test Equipment for Photovoltaic Module Identifiable defect types:
| Hairline crack | Fragments | Fragments | Disengage | Black-hearted | cold solder joint |
| Process pollution | Low-efficiency film | Black border | Sintering | Overtime | Perforation |
Test Equipment for Photovoltaic Module Product Features and Advantages:
1. 24.76MP high-definition infrared camera with EL image quality for clearer images.
2. Full-time autofocus module for higher imaging accuracy.
3. Wireless control for device testing and rapid imaging.
4. Programmable constant current power supply for on-site testing, enabling 24/7 uninterrupted testing.
5. Fully automatic testing operation with AI-generated defect identification, automatic classification and saving, and one-click report generation.
6. Energy storage power supply on-site testing requires no preparation.
7. 1.85-meter tripod support for convenient multi-angle testing of components.
8. Wireless remote operation testing of the entire unit, allowing one person to complete the entire project.
9. Rugged and durable trolley case for lightweight and safe transport.
Test Equipment for Photovoltaic Module Application areas:
| Scene | Factory component, warehouse component, power station site component testing, |
| Test | Daytime: Outdoor anti-infrared dark room testing; indoor testing in a sunless environment Nighttime: Direct tripod testing, unaffected by artificial or moonlight |
| Object | Crystalline silicon modules, thin-film modules (customizable) |
| Quantity | Single-piece component imaging inspection |
Test Equipment for Photovoltaic Module Specifications:
| Module | Configuration | Specifications |
| Camera module | Pixel | 24.76 megapixels |
| Resolution | 6000x4000 | |
| Chip | 23.5x15.6mm, CMOS sensor | |
| Accuracy | 1.0mm/pixel | |
| Detection speed | Adjustable 1-30s | |
| Low current testing | Can present clear crack imaging in 5A low current. | |
| Light shielding | Light, moonlight, starlight, indoor low-level sunlight, and sunlight below 100 lux have no effect on the test. | |
| Detection Area | 4000mm*2000mm | |
| Lens | 18-55mm infrared lens | |
| Focus mode | Full-time autofocus | |
| Battery | 1040mAh | |
| Memory card | 64GB | |
| Card reader | USB2.0 | |
| Power module | Capacity | 28.3AH |
| Battery cell | High-performance lithium batteries | |
| Output current | 5A | |
| Current accuracy | 0.1A | |
| Output voltage | 70V | |
| Voltage Accuracy | 0.01V | |
| Load power | 100W to 600W; upper limit not exceeding 700W | |
| Number of tests | 300-500 solar panels | |
| Control Panel | LED Digital Display Programmable Control Panel | |
| Function Settings | Wireless remote power on and power off | |
| Power Saving Mode | Automatic power off after testing | |
| Steady-state module | Constant power supply output current and voltage are unaffected by changes in battery charge. | |
| Circuit Protection | Short-circuit protection, disconnection protection, reverse current protection, overheating protection, electrostatic protection, current and voltage adaptive matching for photovoltaic panels | |
| Power cable | 10cm AC 3-pin input cord | |
| DC line | 3m DC output cable, MC4 connector assembly | |
| Computer | Tablet | Lenovo Tablet 8+128G |
| Wi-Fi | 2.4G | 2.4GWi-Fi Wireless Control Module |
| Software | Detection APP | Wireless, fully automatic camera and power supply cooperation for inspection, AI defect recognition or manual annotation after shooting, automatic defect classification, one-click generation of inspection reports, etc. |
| Support system | Detection bracket | 1.85-meter aluminum alloy stand |
| Detect gimbal | Integrated bracket installation, 720-degree rotation | |
| Positioning module | Detection and Localization | Cross-laser locator, quickly locates the position of the rear component on the quick-locating bracket, which can improve detection efficiency by several times. |
| Usage Environment | Desert, plateau, rooftop, hill, hillside, factory, rooftop, snow, greenhouse, agrivoltaics, aquavoltaics, wind-solar hybrid, and various other environments | |
| Warranty and After-Sales Service | 1-year warranty, 24H response, 72H fault resolution, spare parts coordination | |
