FT-F3 Miniature Sensor: Overcoming Terrain with UAV Meteorological Surveys

Traditional meteorological monitoring stations are relatively fixed in distribution, making it difficult to comprehensively cover complex terrains and vast areas. There are also certain limitations in the timeliness of data. Mobile meteorological monitoring can flexibly penetrate different regions to collect meteorological information, effectively making up for the deficiencies of traditional monitoring methods and improving the comprehensiveness and timeliness of meteorological data collection.

With the rapid development of technology, unmanned aerial vehicle (UAV) technology has gradually been integrated into the field of mobile meteorological monitoring, and UAV meteorological monitoring has become an emerging force in the meteorological field. Compared with traditional mobile meteorological monitoring means, UAVs can quickly reach designated areas without being restricted by terrain. They can fly over mountains, pass through forests, and even penetrate the air above the ocean to collect data, improving the efficiency of monitoring. In the face of sudden meteorological disasters, UAVs can respond rapidly and transmit on-site meteorological data in the first place, providing key support for disaster response.

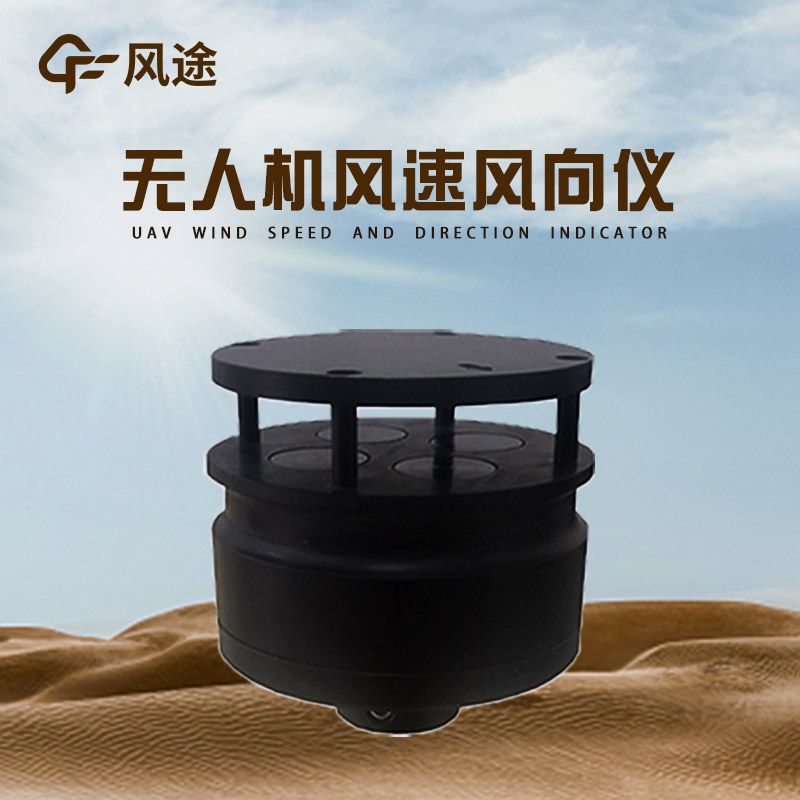

The FT-F3 UAV Miniature sensor can accurately measure a variety of meteorological parameters, including wind speed, wind direction, temperature, humidity, air pressure, and the concentrations of particulate matters such as PM1.0, PM2.5, and PM10. It adopts an integrated design, which is specially tailored for the UAV platform. It is lightweight, small in size, has low wind resistance, and consumes only 0.5W of power.

The FT-F3 UAV Miniature sensor has flexible installation methods. It can be installed on the top of the UAV or suspended under the fuselage. Lightweight and sturdy engineering ABS materials or aluminum alloys are used for the sensor. Users can select different combinations of parameter detection modules according to actual needs. The technical parameters include a wide measurement range and high-precision measurement results. For example, the wind speed measurement range is 0-60m/s with an accuracy of ±3%; the temperature measurement range is -40°C to +80°C with an accuracy of ±0.5°C, and so on. The accurate measurement of these parameters provides a reliable data foundation for meteorological monitoring.
