Achieving Fine-Scale Air Quality Monitoring with the FT-WZ02 Air quality monitoring station

With the advancement of environmental science research toward refinement, traditional large-scale air monitoring stations suffer from low distribution density and limited coverage, making it difficult to capture air quality differences in small-scale areas such as urban functional zones and around pollution sources. They also cannot track pollutant dispersion paths in real time. In scenarios such as monitoring pollution migration in industrial parks and assessing the impact of pollution along major traffic roads, traditional equipment lacks spatiotemporal continuity in data collection, involves high deployment costs, and has limited functionality, failing to meet dynamic research needs. The Air Quality Monitoring Station FT-WZ02 has emerged as a solution to fill these monitoring gaps.

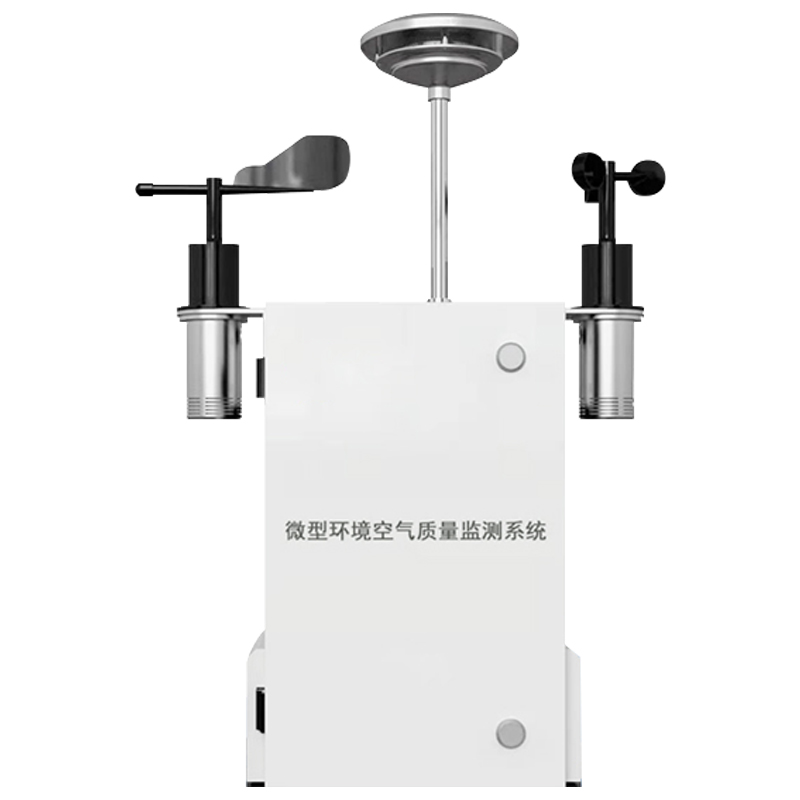

The FT-WZ02 Air Quality Monitoring Station is an unattended multi-parameter online monitoring system that measures six key pollutants: PM2.5, PM10, sulfur dioxide, nitrogen dioxide, carbon monoxide, and ozone. It can also be flexibly expanded to monitor parameters such as volatile organic compounds, five meteorological factors, and noise. The system utilizes imported high-sensitivity sensors, achieving a detection limit as low as the parts per billion (ppb) level, with fast response speed and stable linearity.

The sampling method employs a pump-suction design, combined with a louvered enclosure structure, ensuring smooth air circulation and eliminating temperature differences between the inside and outside. It also features rain and wind resistance, making it suitable for various weather conditions. The power supply supports both grid electricity and solar energy, addressing wiring challenges in remote areas. Its modular design allows for tool-free disassembly, facilitating relocation and maintenance.

The system transmits data in real time via 4G wireless technology without the need for on-site manual operation. Based on the grid-based layout concept, the data can be integrated into a regional monitoring platform and combined with a geographic information system to calculate pollutant dispersion trends and analyze pollution sources. The monitoring data provides detailed evidence for environmental protection departments, supporting the formulation of energy-saving and emission reduction plans. It is widely used in scenarios such as industrial park supervision, urban environmental monitoring, and traffic pollution assessment, promoting the transition of air quality regulation toward refinement and intelligence.
