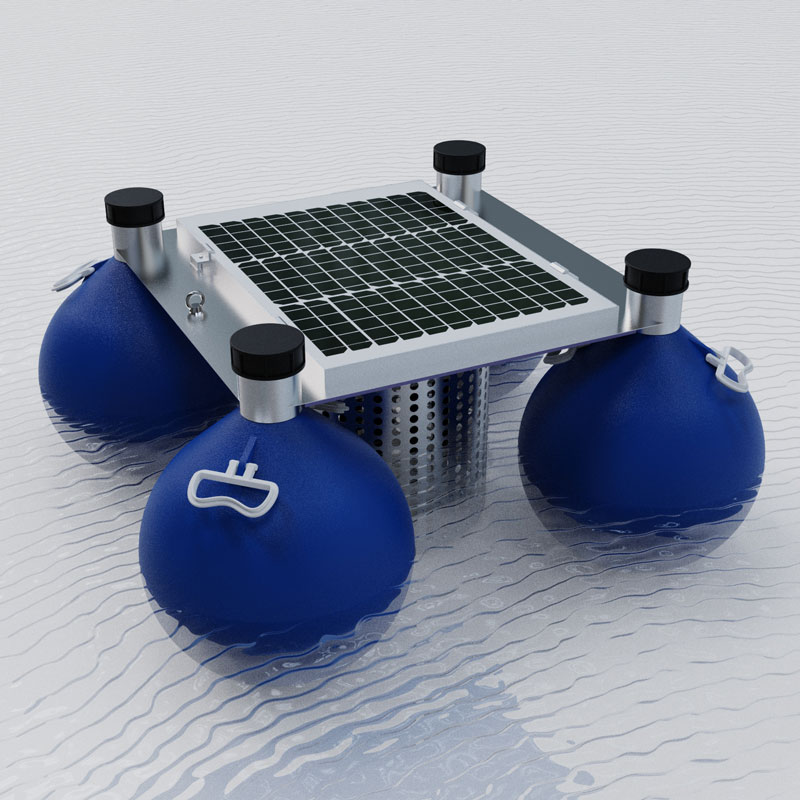

Water Monitoring Buoy Systems

1.Introduction to the functions of Water Monitoring Buoy Systems

Water Monitoring Buoy Systems are small, rapidly deployable buoys used to monitor water quality in harbors, rivers and protected waters.

1.The unattended collection system of the water quality float monitoring station SFA integrates data collection, storage, transmission and management.It is an automatic hydrological measurement and reporting system for industrial and agricultural production, tourism, urban environmental monitoring, geological disasters, flood control, water scheduling, power station and reservoir water situation management, etc.; the powerful upper computer software can remotely observe real-time water and rain information, and has database, reports, download and other functions.Users can also use this complete meteorological software to further process and analyze the recorded data.

2.The SFA04 float consists of six parts: water quality sensor (water temperature, conductivity, PH, dissolved oxygen), data collector, communication system, power supply system, overall support, and water quality monitoring platform.At the same time, it can expand many water quality factors such as ammonia nitrogen, turbidity, and COD.The data collector has data acquisition, real-time clock, data timing storage, parameter setting and standard 2G/4G (GPRS) communication functions.

2.Water Monitoring Buoy Systems product features

1.Easy to deploy: All types of probes are highly integrated and easy to install; free cloud platform services are provided, and the system is quickly launched;

2.Easy maintenance: After the equipment is installed, it can work by itself, without manual duty, and the normal operation of the equipment can be ensured through remote monitoring;

3.Easy to expand: All sensor probes use a unified communication protocol, which can quickly connect to the original equipment and quickly expand monitoring parameters;

4.Low power consumption: The device can operate for a long time in a low power consumption state, increasing the convenience of the device;

5.Real-time: The data monitored by the device is transmitted to the cloud platform in real time, improving the timeliness of environmental data feedback.

3.Water Monitoring Buoy Systems Technical Parameters

1.Main parameters

2.The main parameters of optional sensors

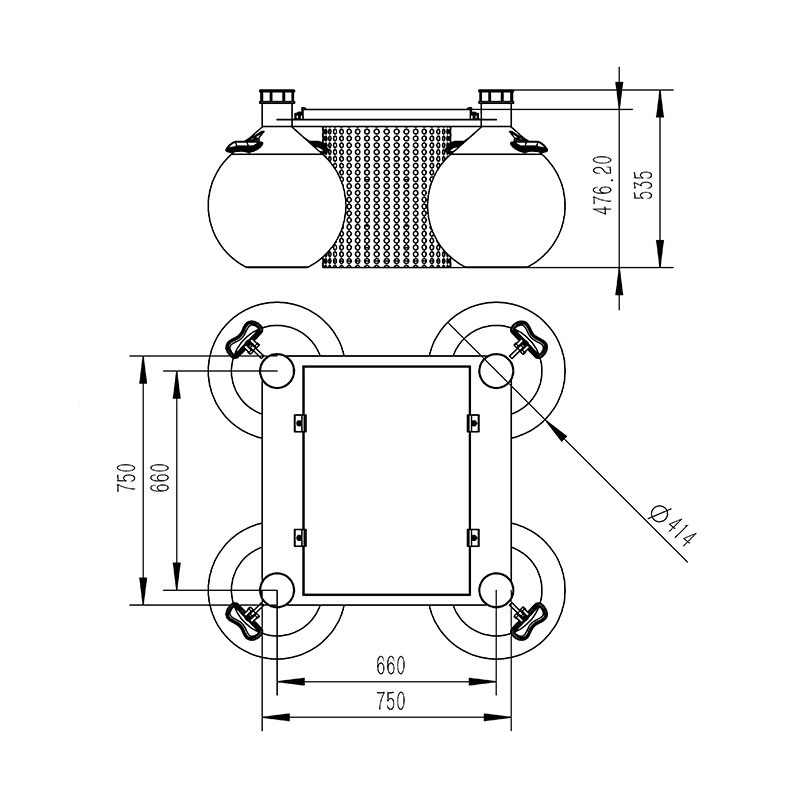

4.Water Monitoring Buoy Systems product size diagram

5.Water Monitoring Buoy Systems equipment installation requirements

1.Stay away from high-power radio transmitters

2.Stay away from high-voltage transmission lines and microwave radio transmission channels

3.Try to be close to the data transmission network

4.Stay away from strong electromagnetic interference

6.Introduction to Water Monitoring Buoy Systems Cloud Platform

1.CS architecture software platform, supports direct observation of mobile phone and PC browsers.There is no need to install additional software.

2.Support multiple accounts and multiple devices to log in

3.Support real-time data display and historical data display dashboard

4.Cloud server.Cloud data storage, stable and reliable, easy to scale, and load balancing.

5.Support SMS alarm and threshold settings

6.Support map display and viewing device information.

7.Support data curve analysis

8.Support data export table form

9.Supports data forwarding, HJ-212 protocol, TCP forwarding, http protocol, etc.

10.Support data post-processing function

11.Support external running of javascript scripts
