Explosion proof weather station

1.Explosion proof weather station product introduction

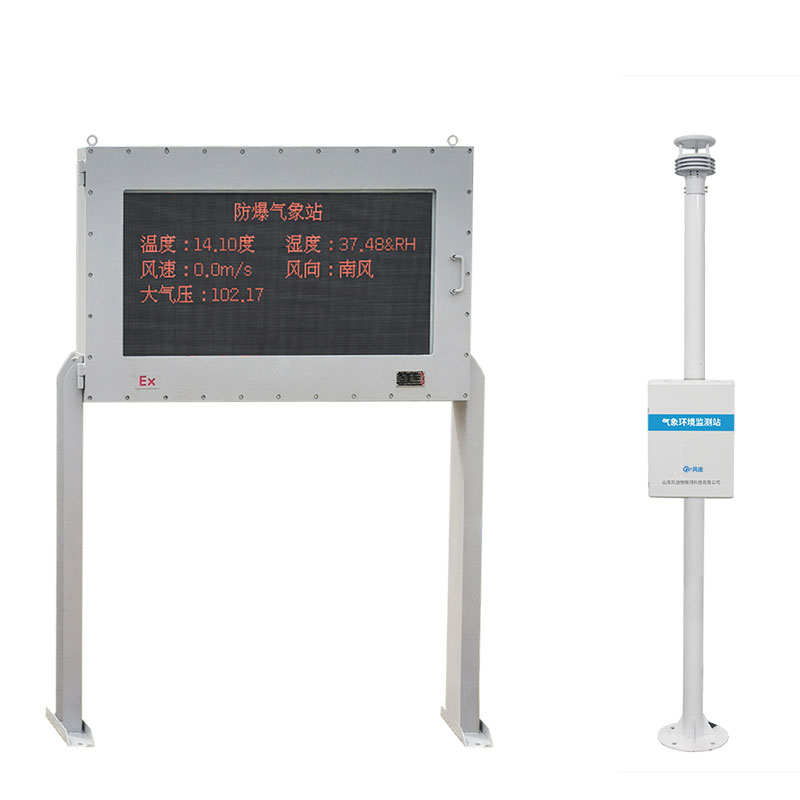

Explosion proof weather station performs accurate measurements in the harshest environments and can monitor 5 meteorological elements.Explosion proof weather station is an integrated weather station developed and produced by Fengtu IoT based on market demand for special places such as chemical plants and oil depots.It integrates data collection, storage, communication and display, and directly displays data in real time on the explosion-proof screen through wired communication.

Explosion proof weather station adopts the design concept of high protection grades such as corrosion protection, explosion protection, waterproof, shockproof, and dustproof, which can meet the use needs of chemical plants, oil depots, tunnels, mines and other scenarios.

2.Explosion proof weather station product features

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Five elements integrated sensor with five elements: wind speed, wind direction, air temperature, humidity and atmospheric pressure (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.RS232 is transmitted to explosion-proof screen, the inner screen size is 1 meter * 0.5 meters, and is spliced by 9 P10 unit boards

3.Explosion proof weather station technical parameters

1) Wind speed: 0～60m/s (±0.1m/s); (Invention patent, Patent number ZL 2021 1 0237536.5)

2) Wind direction: 0～360° (±2°); (Invention Patent, Patent No.ZL 2021 1 0237536.5)

3) Air temperature: -40℃～85℃ (±0.3℃); (Calibration certificate of Beijing Meteorological Bureau)

4) Air humidity: 0~100%RH (±2%RH); (Calibration certificate of Beijing Meteorological Bureau)

5) Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate of Beijing Meteorological Bureau)

6) Stand-alone version data storage: no less than 500,000 pieces;

7)Power consumption: 202W

8 Manufacturers have ISO quality management system, environmental management system and occupational health management system certification

9) The manufacturer has a computer software registration certificate

10) The manufacturer has Ex ia IIC T6 Ga high-grade explosion-proof certificate

11) The manufacturer is a 3A credit enterprise

12) Equipment through GB3836.1-2010 Explosive Environment Part 1: General Requirements for Equipment

13) Equipment through GB3836.4-2010 Explosive Environment Part 4: Protected by Intrinsically Safe "i" Equipment

4.Explosion proof weather station function features

1.Integrated structural design, easy installation and disassembly;

2.Sensor shell ASA material, corrosion-resistant and oxidation-resistant;

3.Support customization and can flexibly configure monitoring elements according to user needs;

4.PC/LED explosion-proof screen multiple monitoring modes, wired transmission

5.Five-defense design: waterproof, explosion-proof, dustproof, shockproof, and corrosion-proof;

6.Standard modbus protocol supports the docking of multiple background protocols to provide convenience to customers;

8.Low-power design, AC220V power supply;

5.Explosion proof weather station upper computer software introduction

1.Software for receiving, storing, viewing and analyzing PC stand-alone version of data

2.Support serial port data reception, processing and display

3.Support json strings, modbus485 and other communication methods

4.You can set the storage time yourself.You can set the acquisition time yourself in modbus485 acquisition mode

5.Support self-service addition, deletion, and modification of monitoring parameters protocols, names, icons, etc.

6.Support data post-processing function

7.Support external running of javascript scripts

6.Explosion proof weather station device installation

1.Confirm the on-site working conditions and set the installation plan by our company

2.Simple installation, no professional operation required, remote guidance can be installed

3.The user does not need to distribute parts by themselves.The company will carefully configure the equipment and install and use it as soon as possible when you arrive.
