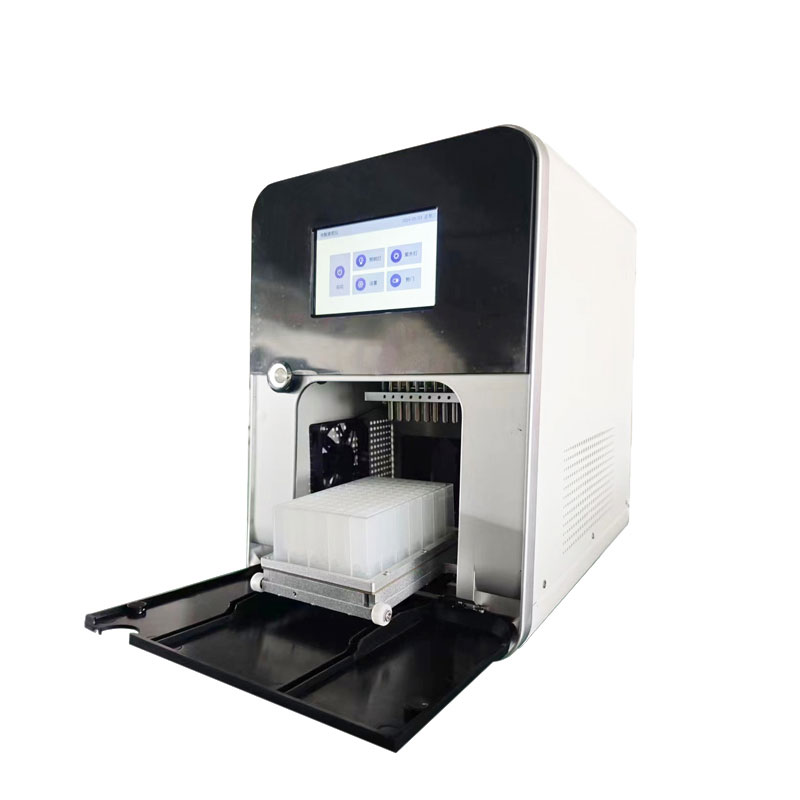

Nucleic acid extractor

Nucleic acid extractor product overview:

Nucleic acid extractor utilizes the RNA/DNA extraction method based on magnetic beads and is a device for extracting DNA/RNA from biological samples.The 16-well Nucleic acid extractor extracts nucleic acids by magnetic bead method, and selects the corresponding kit to automatically separate and purify high-purity nucleic acids from a variety of sample materials such as blood, tissue, and cells. It has the advantages of strong compatibility (adapted with 16 head parts extraction reagents, or single head parts reagents), fast extraction speed, high extraction recovery rate and simple operation. It is a powerful "assistant" in laboratory testing of molecular biology. It can be widely used in scientific research, molecular diagnosis, animal and plant disease detection and other fields.

Nucleic acid extractor product features:

●Free and flexible flux

For the extraction needs of different fluxes, you can flexibly choose a single reagent or 16 pre-packaged reagents to avoid wasting reagent consumables.

●Stable results

Cycling magnetic beads ensures the yield and purity of nucleic acid extraction.

●Safe and reliable

Ultraviolet disinfection box anti-aerosol fan design can effectively avoid cross-contamination and ensure the safety of the test.

●Simple design, compact and portable

Small size, supports battery power supply, and is suitable for automated extraction needs in various environments such as field and laboratory.

Nucleic acid extractor technical performance:

Treatment volume: 20-1000μl

Sample flux: 1-16

Magnetic bead recycling efficiency: >98%

Number of magnetic rods: 16

Sample processing time: 15min-60min

Purification sensitivity: 100 copies of the sample positive detection rate >95%

Purification pore difference (CV): CV < 3%

Consumables for use: 96 deep hole plate + magnetic rod sleeve

Heating temperature: Cracking: Room temperature-105℃; Elution: Room temperature-105℃

Operation interface: 7-inch touch screen embedded integrated operation

Oscillation mixing: multi-mode and multi-speed adjustable

Reagent type: magnetic bead extraction reagent

Program management: Flexible creation, editing, application and deletion of corresponding programs

Data storage (internal program): can store ≤100 sets of programs

Exhaust method: fan

Pollution control: Built-in UV disinfection lamp

Power supply: AC110-240V, 50Hz/60Hz, ≤500W

Dimensions: 335x213x347mm (L×W×H)
