Geological disaster monitoring and early warning system

Geological disaster monitoring and early warning system product introduction

Geological disaster monitoring and early warning system monitors the deformation data of geological hazard objects throughout the day and will issue an alarm signal.

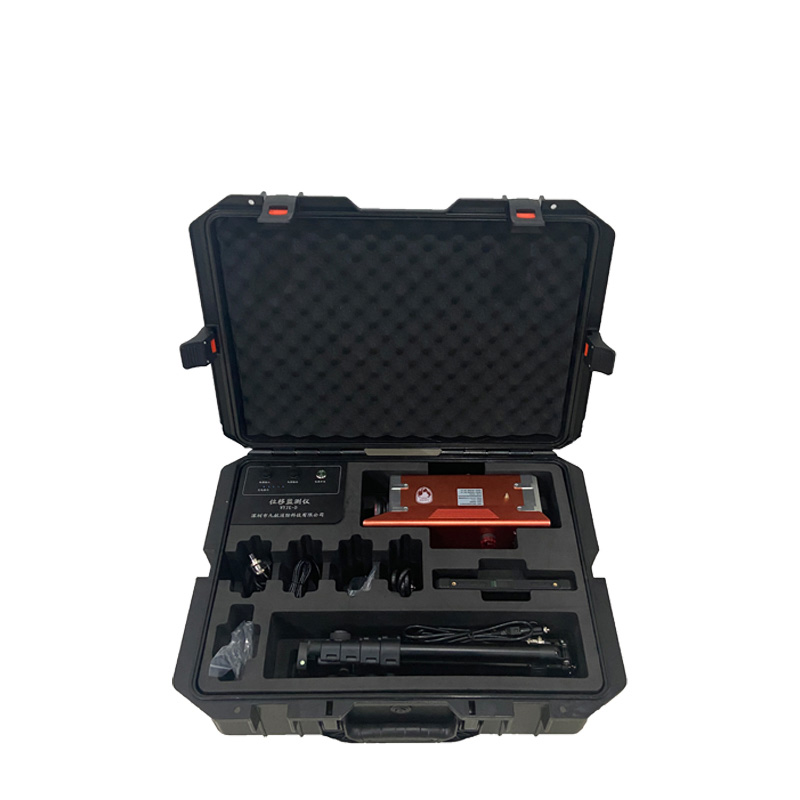

1.The entire set of equipment consists of a control terminal (host), displacement monitor, inclination monitor, telescope scope, tripod, charger, and waterproof and shock-proof packaging box.

2.Monitoring distance: The maximum monitoring distance is ≥110m (open and uninterrupted areas).▲

3.Laser emitter: the number of lasers is ≥2 beams of lasers.

4.Laser detection and adjustment function: Laser detection and adjustment can adjust the laser position, and the adjustment range is ±2m within the range of 50m and ±4m within the range of 100m.

5.Control terminal (host): It adopts a full-color LCD display with a screen size of ≥8 inches (optional), 2 control methods, buttons and touch, supports Beidou positioning function, and can display position information through the display screen.The display screen can display the power of each monitor, the distance and angle of the monitor to the monitor to be monitored, the connection status of each monitor and the control terminal (host), and the alarm status.It has alarm threshold adjustment, alarm volume adjustment, charging, alarm signals of each monitor and wireless transmission functions.

6.It has the functions of taking pictures, recording and storage, and can display the monitored object, and the video screen can be enlarged and reduced.You can playback videos and photos stored by the host according to the time.When you look back, you can switch by sliding the touch screen left and right.You can zoom in to view videos quickly or rewind quickly.▲

7.Format password protection function: You should enter a password when formatting before operation.▲

8.Intelligent management cloud platform: You can view the access status of the device, real-time detection information, device working status, power information, etc.on the platform interface.The platform has built-in instruction manual, which can be viewed in real time through the platform; it has a picture display function, which can display the device location, online status, and home permissions; it can group access devices, realize the same screen display of multiple types and multiple devices, and can check the device historical data.▲

9.Equipped with 2 display screens, respectively displaying the laser and video status.Display screen 1: It can display the laser irradiation distance, alarm threshold, equipment power and alarm status; Display screen 2: It can display the monitored target object in real time, and the display screen 2 can be turned on/off by independent buttons.The diagonal dimension of the display screen is ≥6cm.

10.The alarm threshold can be adjusted as needed, and supports two ways to fix the alarm value and arbitrary set the alarm value.The inclination monitor can set the 7-speed fixed alarm threshold value of 0.5°, 1.0°, 2.6°, 5.0°, 8.0°, 10.0°, and 20.0° through shortcut keys, or it can be set in step by step 0.1°, and the adjustable range is: 0.1-90°, and any scale value can be continuously adjusted.The displacement monitor can set the 9-speed fixed alarm threshold value through shortcut keys: 5, 10, 15, 20, 30, 50, 70, 80, 100mm, or step-by-step setting of 1mm, the adjustable range is 1-9999mm, and any scale value can be continuously adjusted.▲

11.When the monitoring value deviates from the set value, it can automatically alarm, emit an acoustic and light alarm signal, and manually release the alarm signal through the button.The control terminal (host) can realize linkage alarm monitoring with each monitor.

12.The alarm sound intensity is ≥120dB, and the alarm sound can be turned on and off.

13.The measurement accuracy of the inclination angle monitor is ≤0.1°.

14.The measurement accuracy of the displacement monitor is ≤1mm.

15.Inclination angle monitoring is three-dimensional (360 degrees), monitors the display of X, Y, and Z axes, with a resolution of ≤0.01°.

16.The equipment shall adopt wireless transmission method, and the communication distance shall be ≥500 meters (open and uninterference areas).▲

17.The device has voice alarm prompt functions such as too close, too far, abnormal observation, and low power alarm.▲

18.Supports battery power supply, external mains power supply and vehicle charging methods.At the same time, the equipment has the function of charging the displacement monitor and inclination monitor.The continuous working time of the entire equipment is ≥12h.▲

19.It has one-click search (one-click evacuation) function, which can automatically alarm and reversely locate the monitor position.

20.Operating temperature: -25℃ to 60℃, storage temperature: -40℃ to 70℃.

21.Protection level: IP68 (reflected in the inspection report).▲

22.Equipped with an intelligent management cloud platform, you can view the access status of the device, real-time detection information, device working status, power information, etc.on the platform interface.The platform has built-in instruction manual, which can be viewed in real time through the platform; it has a picture display function, which can display the device location, online status, and home permissions; it can group access devices, realize the same screen display of multiple types and multiple devices, and can check the device historical data.▲

23.Provide inspection and inspection reports issued by national or nationally recognized third-party inspection and inspection institutions, and the report should be complete and valid.
