Weather Meter
Model：FT-QS1
Brand：tianyi
Weather Meter is able to receive real-time environmental measurements, allowing you to view temperature, humidity, air pressure, wind speed, wind direction, rainfall, and more.
Get a Free Quote- Product details
- Related products
- Related articles
1.Weather Meter technical parameters
Weather Meter is able to receive real-time environmental measurements, allowing you to view temperature, humidity, air pressure, wind speed, wind direction, rainfall, and more.
| Charging input voltage | 4.5V-5.5V |
| Charging current | 2A |
| Screen size | 3.5 inches |
| Screen resolution | 480*800☆ |
| Screen interface | Mipi dsi ☆ |
| USB port | 2 (Support external expansion of mouse, keyboard, 4G, etc.)☆ |
| Type-C | 1 (Support external expansion of mouse, keyboard, 4G, etc.)☆ |
| RS485 | 2 (Support Modbus, json, asc input, etc.) |
| External sensor power supply voltage | 12V |
| External sensor power supply current | 1A |
| operating system | ftiot (based on Linux-5.4)☆ |
| CPU | 2*Cotex-A7，650Mhz☆ |
| RAM | 512M DDR3☆ |
| Flash | 8G-64G |
| OpenGL | ES 2.0☆ |
| Wifi | support |
| 4G | Selection |
| button | support |
| Capacitive touch screen | support |
| Software Architecture | B/S☆ |
| Web access | Support ☆ |
| MTP mode | Support ☆ |
| Multi-terminal login | Support ☆ |
| IPV6 | Support ☆ |
| Sensor communication method | RS485、TCP、UDP、Http☆ |
| Data forwarding method | RS485、TCP、UDP、Http☆ |
| Remote SSH | Support ☆ |
| Remote debugging | Support ☆ |

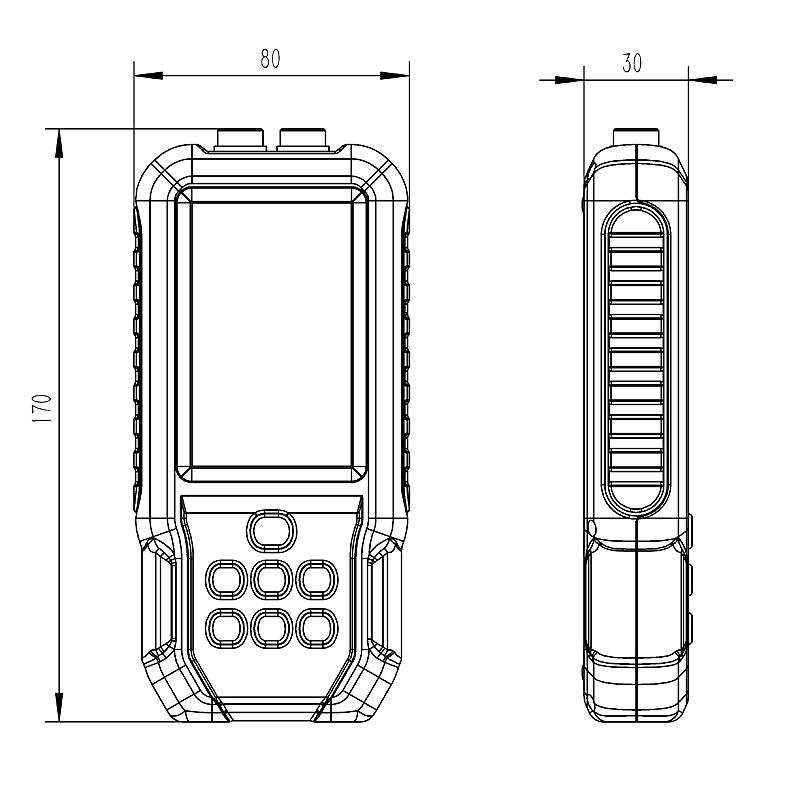

2.Weather Meter product size diagram
