Model:WS485
Brand:tianyi
1.Soil Moisture Probe Technical Indicators
Soil Moisture Probe measures or estimates the amount of water in the soil and can be used to estimate how much irrigation is needed to reach the required amount of water in the soil.
1.Power supply: DC12V
2.Power consumption: less than 0.1W
3.Working temperature: -30~70℃
4.Communication interface: RS485
5.Operating current: 8mA DC12V
6.Minimum data interval: 60S

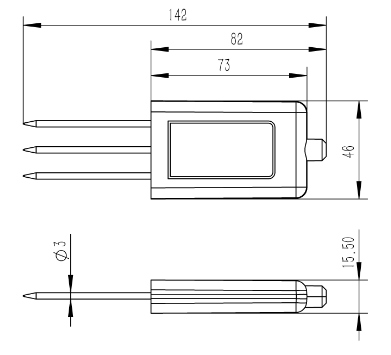

2.Soil Moisture Probe product size chart
3.Precautions for using Soil Moisture Probe
1.The sensor installation should be carried out strictly in accordance with the installation instructions.
2.When multiple sensors work at the same time, they must be spaced more than 5 meters apart.
3.The sensor measurement principle is limited.The sensor measurement site is a central radius of 5 meters.There should be no electromagnetic cables and strong magnetic radiation interference.
Avoid huge errors and damage caused by sensor measurements.
4.The installation environment of the sensor should comply with the measurement range of the sensor to avoid irregular behaviors such as exceeding the range.
5.The sensor installation should be avoided in the environment of strong acids, strong alkalis, heavy oil and polluted heavy metals.
6.The sensor is a soil measurement sensor, and it is prohibited to use this sensor for other behaviors.
7.The sensor installation environment cannot have strong vibration.
8.The sensor cannot have too strong external force.
9.Disassembly is prohibited, and disassembly will not provide any services.
10.The sensor probe is relatively sharp, so you should wear protective gear according to regulations when using it.
11.The use and maintenance of equipment should be carried out strictly in accordance with the above precautions.If there is any illegal use, the company will not bear the relevant responsibility.
4.Soil Moisture Probe sensor parameters
parameter | Measurement range | Accuracy | Resolution | unit |
Soil temperature | -30~70℃ | ±0.3 (-10~50℃) | 0.01 | ℃ |
Soil moisture content | 0~100% | ±3% (loam) High organic matter soil (soil organic carbon content >12%) High colloidal content soil (colloid content >45%) Due to its dielectric relaxation properties, calibration may be required for specific soil types. | 0.01% | --- |
