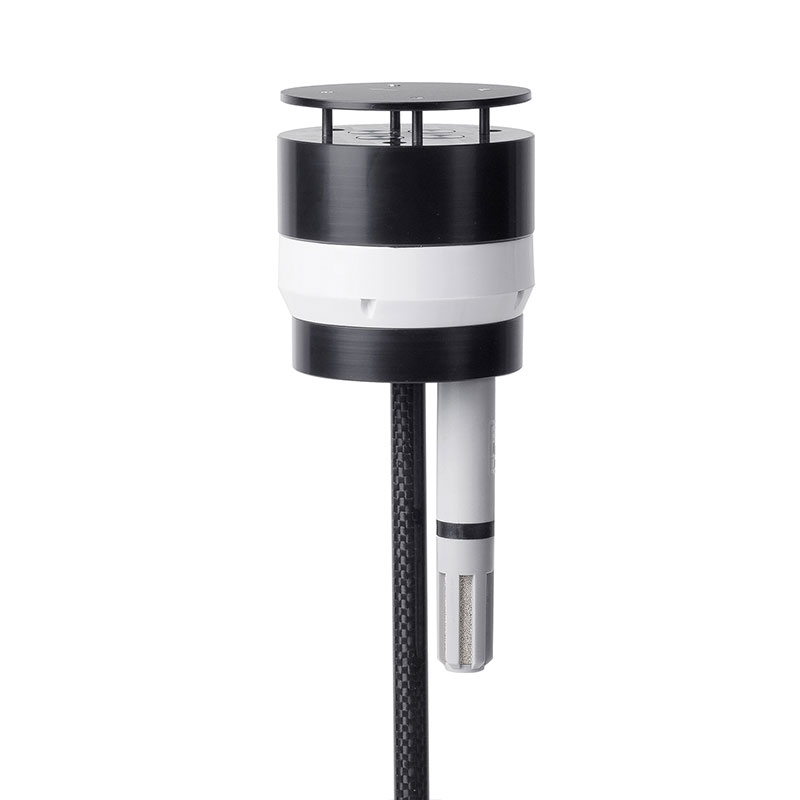

Drone-Based Weather Station
Model：FT-F3
Brand：tianyi
Drone-Based Weather Station can be easily integrated into drones and can provide valuable data for weather forecasting, research and surveillance purposes.
Get a Free Quote- Product details
- Related products
- Related articles
1.Introduction to Drone-Based Weather Station
Drone-Based Weather Station can be easily integrated into drones and can provide valuable data for weather forecasting, research and surveillance purposes.Meteorological parameters that can be measured by F3Drone-Based Weather Station include: wind speed, wind direction, temperature, humidity, air pressure, PM1.0, PM2.5, PM10, etc.It adopts an integrated structure and is designed and manufactured for carrying on the drone platform.It prioritizes the characteristics of light weight, small size, small wind resistance and low power consumption, and can work normally in light rain meteorological environments.
The weathermeter can be installed on the top of the drone or hoisted on the belly of the machine.Materials are lightweight and sturdy engineered ABS materials, or lightweight aluminum alloys.The detection module with individual parameters can be selected according to the parameters required by the user, or it can be combined arbitrarily.
2.Drone-Based Weather Station Technical Parameters
| name | Measurement range | Accuracy | Resolution |
| Wind speed | 0-60m/s | ±3% | 0.1m/s |
| wind direction | 0-359° | ±3° | 1° |
| temperature | -40℃-+80℃ | ±0.5℃ | 0.1℃ |
| humidity | 0-100% | ±5% | 1 |
| Air pressure | 300-1100hPa | ±1 | 0.1hPa |
| PM1.0/2.5/10 | 0-1000μg/m3 | ±10% | 1μg/m3 |
| Digital output | RS232, RS485, TTL (select one) | ||
| Communication baud rate | 4800-19200 | ||
| Communication protocol | ModBus, NMEA-0183, ASCII | ||
| Power supply voltage, power consumption | VDC: 7-24V/0.5W | ||
| Appearance size/weight | Φ70*100mm/0.28kg | ||
| Case color/material | Black/ABS/Aluminum alloy (anodized) | ||
