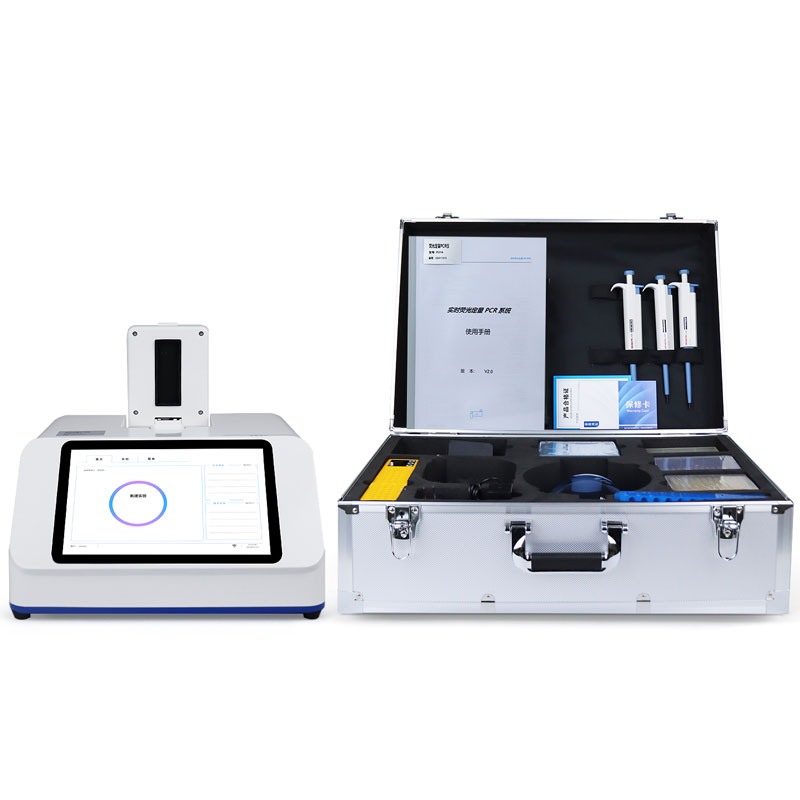

pigeon gender discriminator

pigeon gender discriminator is a tool for real-time gender detection of pigeons, which mainly consists of genetic amplification thermal cycles.Pigeon gender discriminator is an instrument for real-time detection of reactions, mainly composed of gene amplification thermal cycle components, microfluorescence detection optical system, microcircuit control system, computer and application software.It is simple to operate and can non-invasively identify the gender of pigeons, with an accuracy rate of 99.9%.

2.Pigeon gender discriminator instrument features

1.Small size, light weight, easy to carry.Easily meet the needs of going out experiments.

2.Built-in 10-inch high-definition capacitor screen PDA, touch screen operation, simple and fast.

3.Marlow's high-quality Peltier refrigeration plate, combined with Germany's high-end PT1000 temperature sensor and the temperature control mode of the electrical resistance heating compensation edge, the maximum temperature increase speed is 7℃ and the maximum temperature decrease speed is 5℃, greatly shortening the experimental time.

4.The 3s fast lighting mode of the whole plate ensures consistency of the hole position of the experimental results.

5.Concise and intuitive software guidance, easily enable detection experiments.

3.Pigeon gender discriminator application field

Basic scientific research

Pathogen detection

Adulterated meat products

Genetically modified test

Food safety testing

Drug development and rational use of medicine

Gene expression

Water monitoring

4.Pigeon gender discriminator technical parameters

Sample capacity: 16x0.2ml, support 8-connection tube

Suitable consumables: Common transparent PCR consumables, 8x0.2ml drain pipe, 0.2ml single tube

Reaction system: 5-120ul reaction mode system

Heating/refrigeration module: high-performance imported semiconductor thermoelectric module

Temperature control range: 4°C-99°C

Hot cover temperature: 30℃-108℃ (default 105℃, hot cover temperature can be adjusted)

Warming rate: 3.5℃/s (MAX)

Cooling rate: 2.5℃/s (MAX)

Temperature control accuracy: ±0.1°C

Temperature uniformity: ±0.25°C

Temperature accuracy: ±0.1℃

Number of temperature control areas: multiple points (2 points)

Number of gradients: 0

Gradient temperature range: None

Gradient hole number: None

Excitation light source: high power LED (maintenance-free, long life)

Excitation light wavelength range: 400-700nm

Detection components: imported high sensitivity photoelectric sensor

Excitation and detection of propagation medium: high temperature resistant professional optical fiber

Number of detection channels: 2 channels (FAM/VIC)

Suitable dyes and probes: FAM, SYBR Green

HEX, JOE, VIC

Software function: Multiple qPCR data analysis function, can detect 2 detection channels simultaneously

amplification curve,

Standard curve quantification,

Melting curve,

Support HRM detection

Data export: The experimental results can be directly exported in the form of graphs and tables; the detailed data report content includes experimental conditions, data coordinates and tables, and data analysis parameters.

Data format: XLS, PDF, DOCX

Noise: <45dB

Screen size: 10 inches (HD)

Touch screen: capacitive

External USB: Supports data import and export

Heat cover: automatic pressure adjustment
