Automatic Monitoring Instrument for Runoff Sediment: A Comprehensive Review

The Automatic Monitoring Instrument for Runoff Sediment is an integrated device designed for automatic and real-time measurement of sediment concentration and water volume in surface water flow. It replaces traditional manual measurement methods, enabling continuous 24/7 monitoring. The complete system consists of a data acquisition main controller, rainfall sensor, surface flow sensor, and sediment concentration sensor working together to automatically collect, store, and remotely transmit data including runoff volume, runoff sediment concentration, sediment transport, and rainfall amount.

By accurately measuring sediment loss, the severity and spatial distribution of soil erosion can be directly evaluated, providing core basis for ecological protection and land resource management. Monitoring data also helps relevant departments formulate scientific and effective soil and water conservation measures and accurately assess treatment effectiveness. Runoff volume and sediment concentration are important parameters for exploring soil erosion mechanisms. Continuous monitoring of these processes helps deepen understanding of soil erosion patterns and provides data support for prediction models. Sediment runoff data has early warning functions for disasters such as flash floods and debris flows, and also provides basic information for studying soil nutrient loss and its impact on the ecological environment.

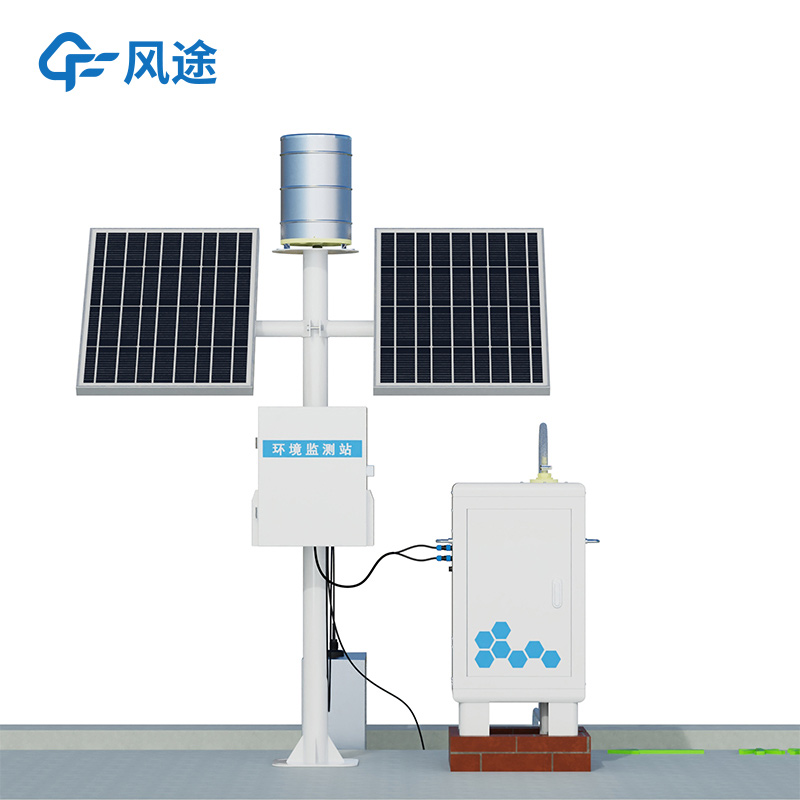

The FT-LS1 soil erosion automatic monitoring instrument is a representative integrated solution. This instrument integrates multiple sensors with a data acquisition system to achieve 24/7 automatic monitoring of parameters such as rainfall, runoff, and sediment concentration. The system adopts solar power supply and wireless data transmission technology, supporting long-term operation in unattended field environments. According to technical data, the device controls errors within 3% for surface flow measurement and less than 5% for sediment concentration measurement, and can maintain normal operation for 7 days in case of power failure.

The promotion and application of this monitoring system provides reliable technical support for soil and water conservation work, enabling relevant departments to make more accurate decisions based on real-time data, thereby improving the scientific nature and effectiveness of soil erosion control.
