6 in 1 Weather Sensor

1.6 in 1 Weather Sensor Product Introduction

6 in 1 Weather Sensor measures 6 meteorological parameters including temperature, humidity, wind speed, wind direction, atmospheric pressure and rainfall to forecast weather conditions.Shandong Fengtu IoT Technology Co., Ltd., as an enterprise specializing in the research, development, production and sales of micro meteoroscopes, has always been committed to the promotion and application of micro meteoroscopes and meteorological environment solutions.With a complete production chain, strong technical team and comprehensive marketing team, we have developed and produced meteorological products such as ultrasonic wind speed wind meter, five-element micrometeoroscope, six-element micrometeoroscope and small automatic weather station, which have been widely used in In the fields of meteorological monitoring, urban environmental monitoring, wind power generation, navigation and ships, aviation airports, bridges and tunnels, customers are spread all over the country and have achieved good social and economic benefits.

The principle of the FT-Y6S six-element micrometeoroscope is to emit continuous frequency conversion ultrasonic signals, and to detect wind speed and direction by measuring relative phase.Compared with traditional ultrasonic wind speed and directional instruments, our products overcome the demand for high-precision timers and avoid inaccurate measurement problems caused by sensor startup delay, demodulation circuit delay, and temperature changes.

FT-Y6S type six-element micrometeoroscope innovatively realizes the six meteorological parameters (ambient temperature, relative humidity, wind speed, wind direction, atmospheric pressure, piezoelectric rainfall) through a high-integration structure, which can realize outdoor meteorological parameters 24 Continuous online monitoring for hours, and six parameters are output to the user at one time through the digital communication interface.

2.6 in 1 Weather Sensor product features

1.The hidden ultrasonic probe on the roof cover avoids interference from rain and snow accumulation and avoids natural wind shading (Utility model patent, patent number ZL 2020 2 3215713.X)☆

2.The principle is to transmit a continuous frequency conversion ultrasonic signal, and to detect the wind speed and direction by measuring the relative phase (invention patent, patent number ZL 2021 1 0237536.5)☆

3.Integrated six elements of wind speed, wind direction, temperature, humidity, atmospheric pressure, and piezoelectric rainfall (utilitary patent, patent number ZL 2020 2 3215649.5)☆

4.Adopt advanced sensing technology, real-time measurement, no starting wind speed☆

5.Strong anti-interference ability, with watchdog circuit, automatic reset function, ensuring stable operation of the system

6.High integration, no moving parts, zero wear

7.Maintenance-free, no on-site calibration required

8.Made of stainless steel, high strength, oxidation and corrosion resistance

9.The output signal of the product design is standard as RS485 communication interface (MODBUS protocol); optional 232, USB, and Ethernet interfaces, supporting real-time data reading☆

10.Optional external wireless transmission module, with a minimum transmission interval of 1 minute

11.Optional built-in heating module: heating current 1A (DC12V), heating power consumption 12-15W

12.Integrated design has low wear, long service life and fast response speed

3.6 in 1 Weather Sensor Technical Parameters

1.Wind speed: 0～60m/s (±0.1m/s); (Beijing Meteorological Calibration Certificate)

2.Wind direction: 0～360° (±2°); (Beijing Meteorological Calibration Certificate)

3.Air temperature: -40-60℃ (±0.3℃); (Calibration certificate of Beijing Meteorological Bureau)

4.Air humidity: 0-100%RH (±3%RH); (Calibration Certificate of Beijing Meteorological Bureau)

5.Atmospheric pressure: 300-1100hpa (±0.25%); (Calibration certificate of Beijing Meteorological Bureau)

6.Piezoelectric rainfall: 0-4mm/min (±4%)

7.Power: 1.08W

8.The manufacturer has ISO quality management system, environmental management system and occupational health management system certification☆

9.The manufacturer has a computer software registration certificate☆

10.The manufacturer is a 3A-level credit enterprise☆

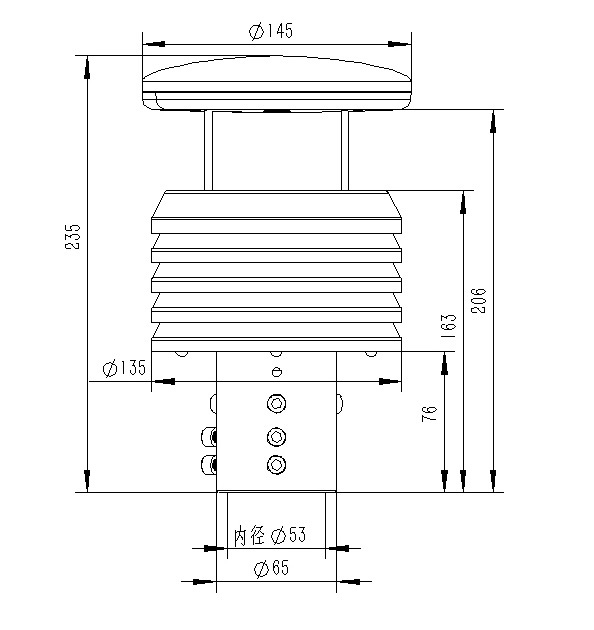

4.6 in 1 Weather Sensor product size diagram

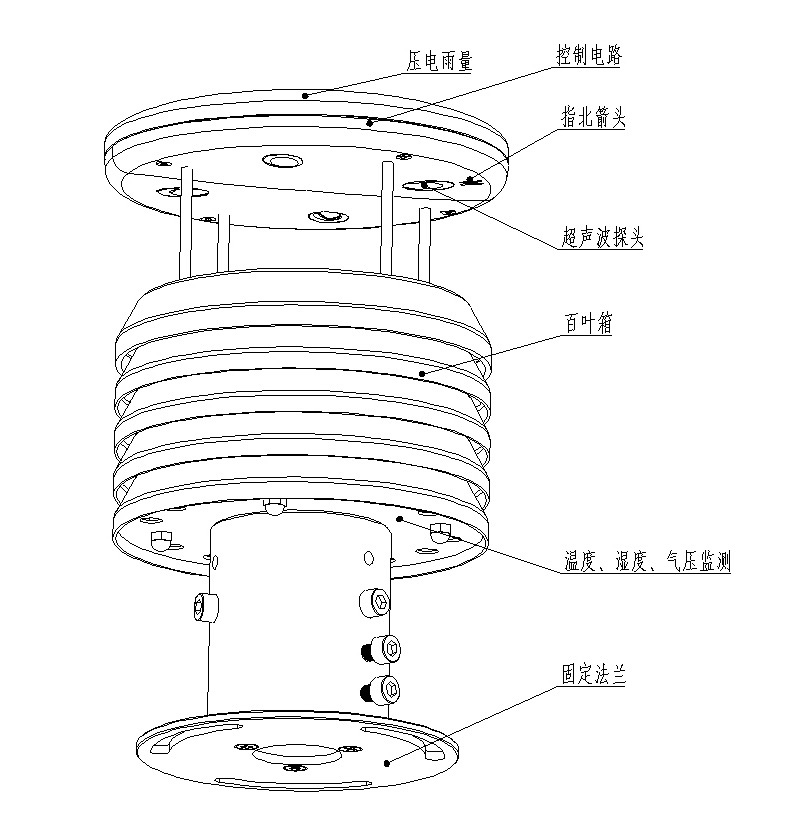

5.6 in 1 Weather Sensor product structure diagram

6.6 in 1 Weather Sensor Notes

1.The radius of 1 meter around the sensor level is not blocked to avoid the influence of water droplets.

2.The sensor installation position should avoid strong mechanical vibration sources

3.The sensor should be installed in an open area, and raindrops should drip directly to the sensor, and should be avoided from secondary dripping and continuous water flow impact.
