Firefighting Infrared Thermal Imagers Assist in Various Rescue Operations at Fire Scenes

Firefighting infrared thermal imagers are suitable for dense smoke and dark fire environments. Relying on comprehensive functions, they search for trapped personnel and locate concealed fire sources. Reliable hardware parameters ensure the smooth progress of various emergency search and rescue operations.

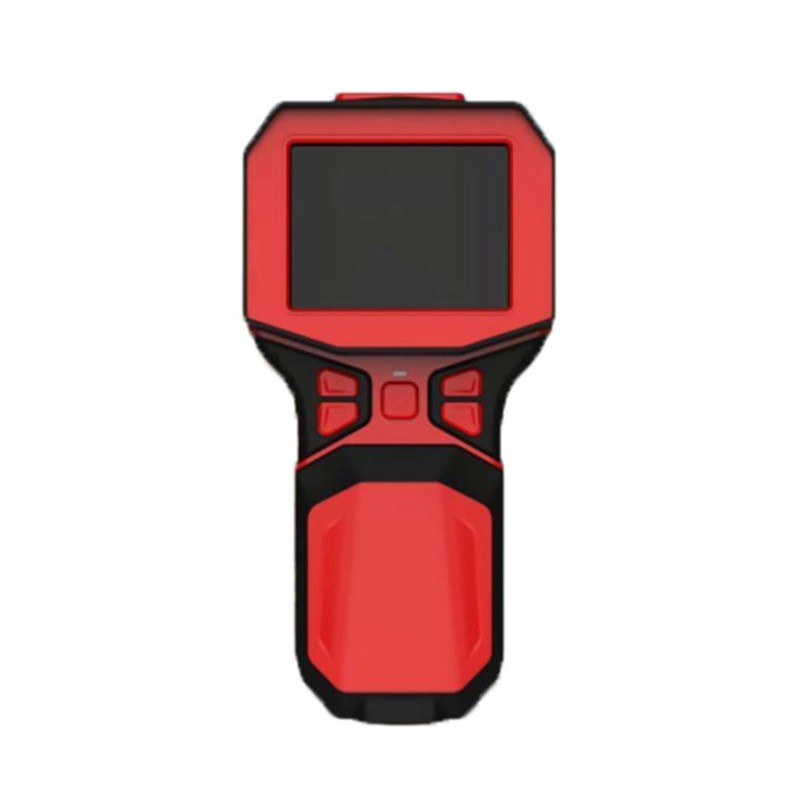

Fire rescue scenes are often filled with thick smoke, making it difficult to see the environment with the naked eye and lighting equipment. Firefighting infrared thermal imagers utilize infrared detection capabilities to capture heat sources from objects, penetrating smoke to conduct on-site reconnaissance and obtain heat source information for rescue personnel. Qualified equipment is manufactured and configured according to the XF/T 635-2023 industry standard, equipped with an adjustable brightness display screen of no less than 3.5 inches, a sampling frame rate of 60 frames per second to ensure smooth images, and a 384×288 pixel detector, an 8-14μm operating wavelength, and a noise equivalent temperature difference of less than 50mK to ensure image clarity.

The device features over eight imaging modes, with rapid switching between infrared and 5-megapixel visible light modes. It offers 2x and 4x digital zoom to adjust the observation range, and boasts advanced temperature detection capabilities including laser pointer, electronic compass, automatic hot/cold temperature tracking, and a 600-meter laser ranging function. The screen simultaneously displays multiple operational data points, and captured images can be viewed and deleted locally.

The device can withstand the high temperatures of a fire scene, operating continuously for 30 minutes in an 80°C environment. Its high-temperature short-term operation parameters are adapted to sudden high-temperature conditions in fire scenes. The entire unit achieves an IP67 protection rating, and its shock-absorbing structure can withstand a two-meter drop impact. Weighing under 800g, it is compact in size, with a retractable chest hook for easy carrying. A removable Type-C rechargeable lithium battery provides over four hours of continuous operation, and it operates stably within a temperature range of -20°C to 60°C.

In fire search and rescue, hazard investigation, and fire reconnaissance, firefighting infrared thermal imagers reduce operational obstacles caused by dense smoke and dark environments, accurately locate trapped personnel, hidden fire sources, and high-temperature dangerous components. Their comprehensive hardware performance is adapted to various complex rescue scenes, improving the overall efficiency of firefighting operations and protecting the on-site safety of rescue personnel.
