Ammonia sensor
Model：FT-QT10
Brand：tianyi
Ammonia sensor uses electrochemical sensor technology to adapt to harsh industrial environments and is used to monitor the content of ammonia (NH3) in the air.
Get a Free Quote- Product details
- Related products
- Related articles
1.Ammonia sensor technical parameters
Ammonia sensor uses electrochemical sensor technology to adapt to harsh industrial environments and is used to monitor the content of ammonia (NH3) in the air.
| model | Measurement parameters | Measurement range | Accuracy | Resolution | unit | Operating temperature | Working humidity |
| QT1 | Carbon monoxide | 0-1000PPM | ±2PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT1S | 0-20PPM | ≤±5% | 0.01PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| QT2 | Sulfur dioxide | 0-20PPM | ±1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT2S | 0-1PPM | ≤±5% | 0.001ppm | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| QT3 | Nitrogen dioxide | 0-20PPM | ±1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT3S | 0-1PPM | ≤±5% | 0.001ppm | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| Qt4 | ozone | 0-20PPM | ±1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT4S | 0-1PPM | ≤±5% | 0.001ppm | PPM | -20℃-+50℃ | 10-95%RH without condensation | |
| QT5 | Oxygen content | 0~30%VOL | ±3%FS | 0.1%VOL | VOL | -20℃-+50℃ | 5-95%RH No condensation |
| QT6 | Negative oxygen ions | 0~100,000 units/cm³ | ±10% | 10 pieces/cm³ | Units/cm³ | +10℃-+70℃ | 10-70%RH without condensation |
| QT7 | Hydrogen sulfide | 0-100PPM | ±2PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT8 | Methane | 0-100%LEL | ≤±3% | 1%LEL | LEL | -20℃-+50℃ | 10-95%RH without condensation |
| QT9 | Tvoc | 0-100PPM | 55±15 nA/ppm | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT10 | Ammonia | 0-100PPM | ±4PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT11 | Nitrogen monoxide | 0-250PPM | -2~10PPM | 1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |
| QT12 | formaldehyde | 0-10PPM | <1PPM | 0.1PPM | PPM | -20℃-+50℃ | 10-95%RH without condensation |

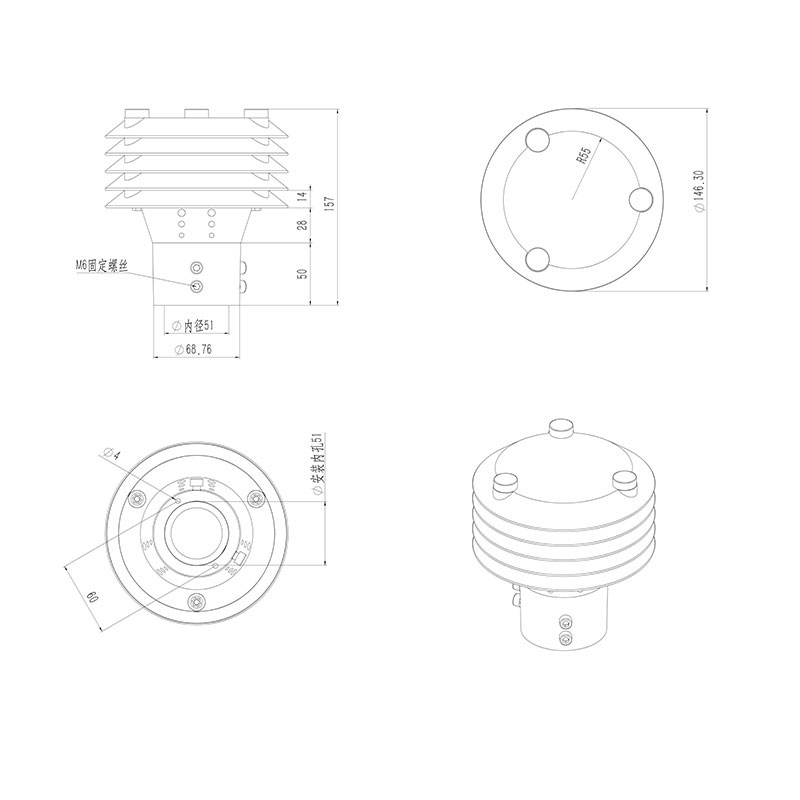

2.Ammonia sensor product size diagram
Address:https://www.tianyisensor.com/Gas-Sensors/Ammonia-sensor.html
Previous Article ：TVOC sensor
Next Article：Nitric oxide sensor
-
