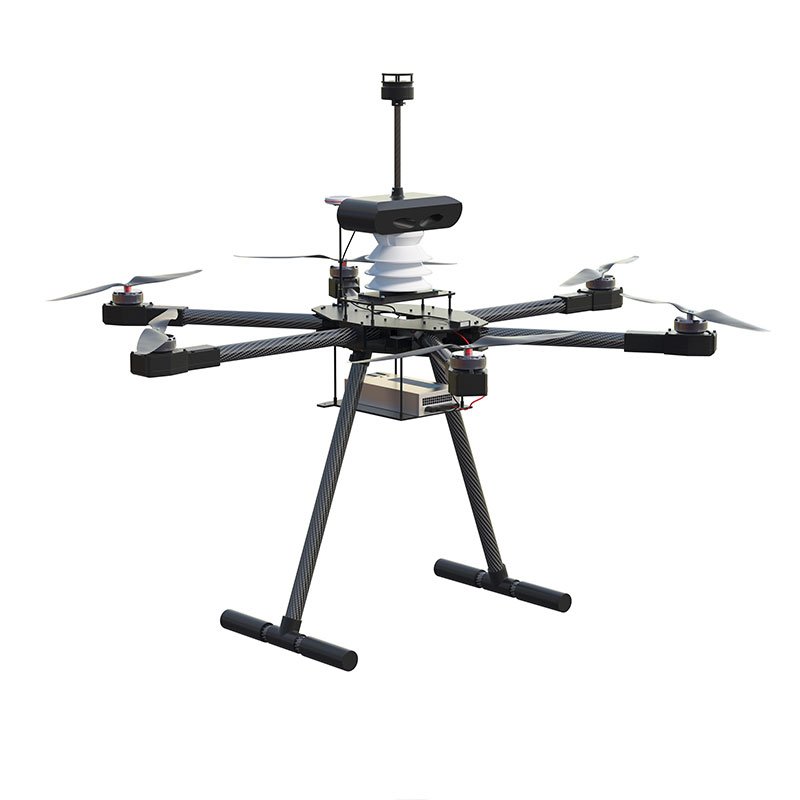

Drone Visibility Weather Instrument
Model：FT-F4
Brand：tianyi
Drone Visibility Weather Instrument transforms drones into flying weather stations, providing an innovative way to collect weather data from the lower and middle atmosphere.
Get a Free Quote- Product details
- Related products
- Related articles
1、Drone Visibility Weather Instrument Product Introduction
Drone Visibility Weather Instrument transforms drones into flying weather stations, providing an innovative way to collect weather data from the lower and middle atmosphere.F4 Drone Visibility Weather Instrument can measure meteorological parameters including: wind speed, wind direction, temperature, humidity, air pressure, and forward-scattered visibility (10km). It adopts an integrated structure, designed and manufactured for use on drone platforms, prioritizing lightweight, small size, low wind resistance, and low power consumption, allowing it to operate normally in light rain conditions.
Drone Visibility Weather Instrument can be mounted on the top of the drone or suspended from its belly. Lightweight and robust engineering ABS material is used, and lightweight aluminum alloy is also available. Individual parameter detection modules can be selected according to user needs, or any combination of modules can be used.
2、Drone Visibility Weather Instrument Technical parameters
| Name | Measurement range | Precision | Resolution |
| Wind speed | 0-60m/s | ±3 percent | 0.1m/s |
| Wind direction | 0-359° | ±3° | 1° |
| Temperature | -40℃－+80℃ | ±0.5℃ | 0.1℃ |
| Humidity | 0－100% | ±5 percent | 1 |
| Atmospheric pressure | 300－1100hPa | ±1 | 0.1hPa |
| Visibility | 20-10000m | ±10 percent | 1m |
| Digital output | RS232, RS485, TTL (one of them) | ||
| Communication baud rate | 4800-19200 | ||
| Communication protocol | ModBus, NMEA-0183, ASCII | ||
| Power supply voltage, power consumption | VDC:7-24V/0.5W | ||
| Dimensions/Weight | Φ70*100mm/0.28kg | ||
| Case color/material | Black/ABS/Aluminum alloy (anodized) | ||
