Emergency rescue life detector Integrates Audio and Video Technology to Enhance Search and Rescue Efficiency in Ruins

Emergency rescue life detector is a life detection device integrating audio, video, and infrared thermal imaging technologies, used for searching for victims in collapsed buildings and confined spaces. The device features a 10-inch full-color screen, can record video and take photos, has a battery life of ≥8 hours, and is widely used in emergency rescue scenarios such as earthquakes, landslides, and collapses.

Emergency rescue life detector is a professional rescue device integrating audio, video, and infrared thermal imaging technologies, specifically designed for life detection tasks at disaster sites. Under collapsed buildings and in confined spaces, the device can search for victims, providing rescuers with information about victims under rubble through high-definition video and audio signals. This product is widely used in emergency rescue scenarios such as earthquakes, landslides, collapses, and mines.

In terms of hardware configuration, Emergency rescue life detector is equipped with a large 10-inch full-color main screen, measuring ≤300*190*20mm, with high-precision images that can be magnified at least 8 times. The main unit is equipped with a sunshade for easy viewing in strong sunlight. It weighs ≤1kg (including battery, excluding cables) and can be operated with one hand. The display panel monitoring main unit features recording and photo-taking functions, supports 8x digital zoom, and stores files on an SD card with ≥256GB of internal memory. The mirroring function allows for 360° rotation of displayed photos horizontally and vertically. The location marking function allows users to input location markers and other information on photos via the display screen for easy browsing, searching, and management. The rechargeable battery provides ≥8 hours of continuous operation. The entire system has an IP66 protection rating and an operating temperature range of -20℃ to +60℃.

Regarding the camera configuration, the motorized audio/video camera has a diameter ≤40mm and is a ≥1080P full HD motorized rotating camera. The HD video camera can rotate 360° continuously and flip 270°, features two-way audio intercom, and has ≥12 built-in white LEDs. The waterproof video camera has a diameter ≤35mm, is equipped with 12 supplementary lights, and has an IP68 protection rating. The infrared thermal imaging camera has at least 8 built-in white LEDs, a resolution of 384x288, and a wavelength range of 8-14µm. It features an independent audio pickup module for flexible combination and disassembly with the video probe at the rescue site, and supports two-way communication. A noise-canceling headset (with microphone) facilitates clear communication with survivors.

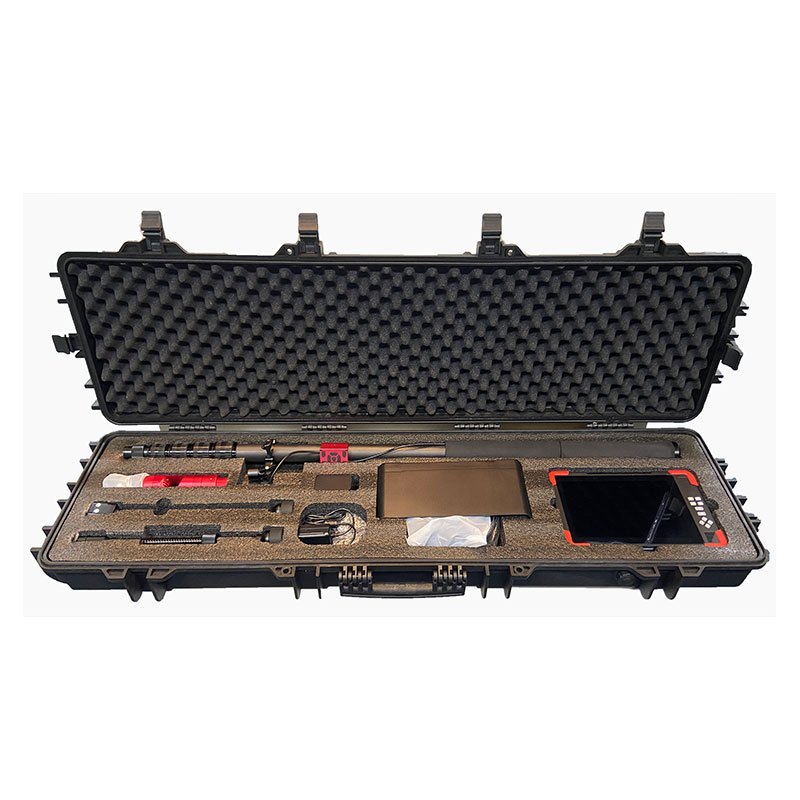

Emergency rescue life detector is equipped with a carbon fiber telescopic pole at least 5 meters long, extendable between 1.25 meters and 5 meters. It includes at least 20 meters of waterproof connecting cable. The complete set includes one protective safety case, one rotating color audio/video probe, one infrared thermal imaging probe, one waterproof video probe, one 5-meter carbon fiber telescopic pole, one 10-inch color monitor, one 20-meter connecting cable, and one set of intercom headset microphone.
