electronic weather station
Model：FT-SQ15
Brand：tianyi
electronic weather station consists of sensors that measure various weather parameters, allowing you to see at a glance the current weather conditions in your area.
Get a Free Quote- Product details
- Related products
- Related articles
1.Electronic weather station product introduction
electronic weather station consists of sensors that measure various weather parameters, allowing you to see at a glance the current weather conditions in your area.
This product provides real-time measurement of parameters such as temperature, humidity, atmospheric pressure, wind speed, wind direction, light, total radiation, ultraviolet radiation, runway temperature, etc.
It also has outdoor SOS help, electronic compass, runway temperature, weather forecast for the next 3 hours, human comfort, radio silence, GNSS positioning and other functions.
At the same time, wireless transmission (4GCat1), WiFi upload cloud platform or LAN server is realized, and USB can read internal storage data.
This instrument can be widely used in meteorological, environmental protection, airports, agriculture and forestry, hydrology, military, warehousing, scientific research and other fields.
2.Electronic weather station technical parameters
| Meteorological parameters | Measurement elements | Measurement range | Accuracy | Resolution | unit |
| temperature | -45-130 | ±0.2 | 0.01 | ℃ | |
| humidity | 0-100 | ±2.0 | 0.01 | % | |
| Atmospheric pressure | 30-110 | ±0.01 | 0.01 | KPa | |
| Wind speed | 0-40 | ±1 | 0.01 | m/s | |
| wind direction | 0-359 | ±1 | 1 | ° | |
| illumination | 0-157286 | ＜±3% | 1 | Lux | |
| Total radiation | 0-1242 | ＜±3% | 1 | W/㎡ | |
| Ultraviolet rays | 0-262144 | ＜±3% | 1 | mW/㎡ | |
| Runway temperature | -40- 85 | ±0.5 | 0.01 | ℃ | |
| Electronic compass | 0-359 | 1 | 1 | Spend | |
| GNSS Positioning | Positioning accuracy 2m | ||||
| SOS seeking rescue | International Morse Code Rescue Signal | ||||
| Battery | 3800mAh | ||||
| Communication | 4G Cat1, Wifi, USB | ||||
| Radio silence | Disable device 4G CAT1 communication and enter flight mode | ||||
| Human comfort | Calculate the current human comfort level based on the SET model | ||||
| Weather forecast for the next 3 hours | Deduce the three-hour weather conditions based on temperature, humidity, atmospheric pressure, light, ultraviolet rays, wind speed and other information | ||||
| storage | 6MB storage (90,000 pieces of data) | ||||
| Host size | 160*62*40 mm | ||||
| Working environment | -20℃～80℃; 5%RH～95%RH | ||||

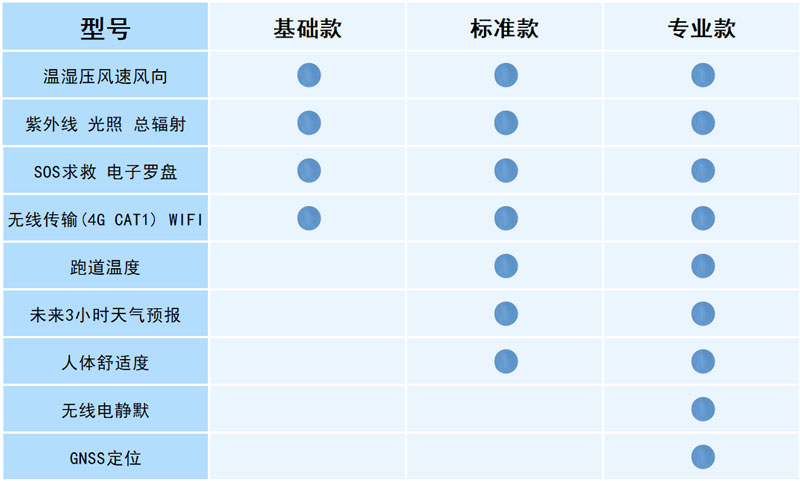

3.Electronic weather station configuration instructions

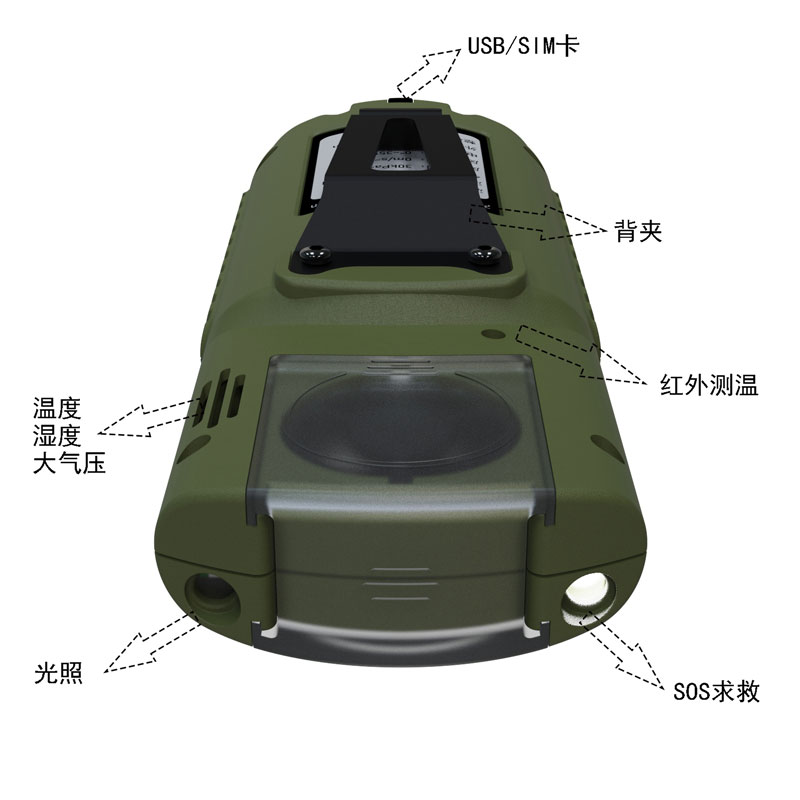

4.Electronic weather station product appearance diagram

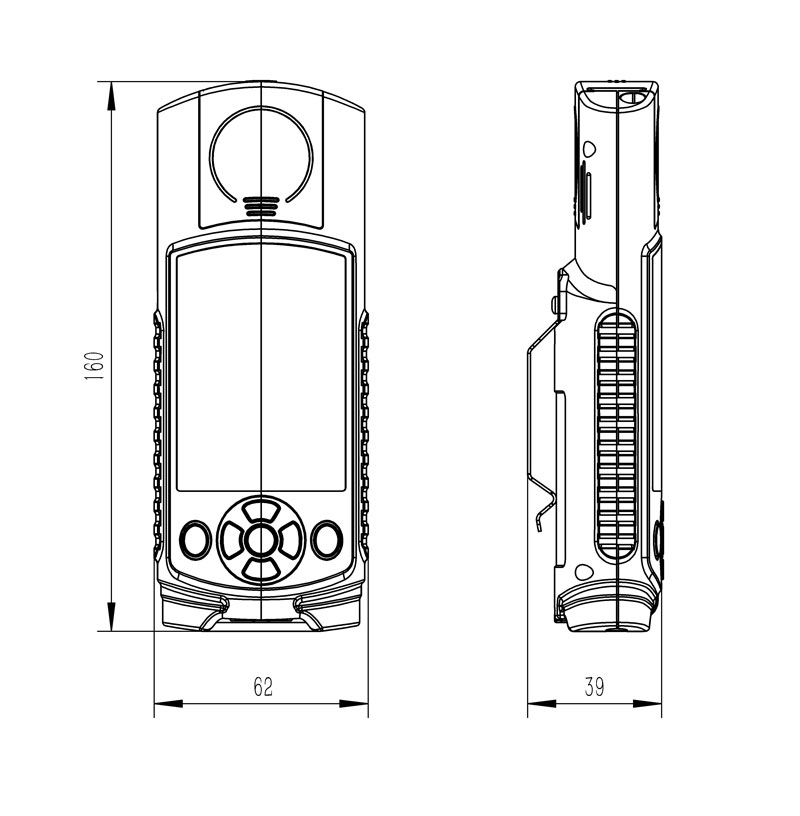

5.Electronic weather station product size diagram
6.Electronic weather station shipment list
| name | quantity |
| Host | 1 |
| Charging head | 1 |
| Data line | 1 |
| manual | 1 |
| Certificate of conformity | 1 |
| Warranty card | 1 |
| Packaging box | 1 |
